INCHANGE Semiconductor isc Product Specification
www.iscsemi.cn

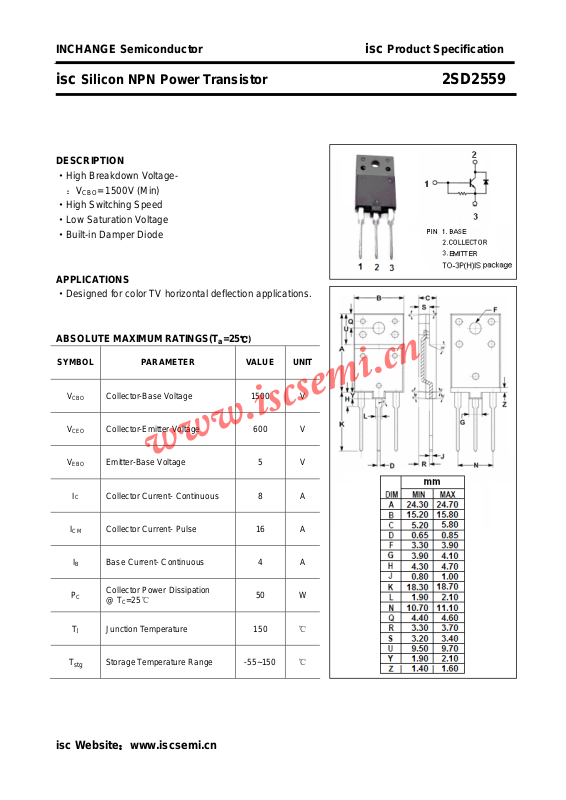

isc Silicon NPN Power Transistor 2SD2559
DESCRIPTION
·High Breakdown Voltage ：V
·High Switching Speed
·Low Saturation Voltage
·Built-in Damper Diode
APPLICATIONS
·Designed for color TV horizontal deflection applications.
ABSOLUTE MAXIMUM RATINGS(T
= 1500V (Min)
CBO
=25℃)
a
SYMBOL PARAMETER VALUE UNIT
V
V
V
I
P
CBO
CEO
EBO
I
C
CM
I
B
C
T
J
Collector-Base Voltage 1500 V
Collector-Emitter Voltage 600 V
Emitter-Base Voltage 5 V
Collector Current- Continuous 8 A
Collector Current- Pulse 16 A
B Base Current- Continuous 4 A
Collector Power Dissipation
=25℃
@ T
C
Junction Temperature 150 ℃
50 W
T
stg
Storage Temperature Range -55~150 ℃
isc Website：www.iscsemi.cn
Page 2
INCHANGE Semiconductor isc Product Specification
www.iscsemi.cn
isc Silicon NPN Power Transistor 2SD2559
ELECTRICAL CHARACTERISTICS
TC=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)EBO
V
CE
(sat)
V
BE
(sat)
I
CBO
I
EBO
h
FE-1
h
FE-2
V
ECF
f
T
Emitter-Base Breakdown Voltage IE= 300mA ; IC= 0 5 V
Collector-Emitter Saturation Voltage IC= 6A; IB= 1.2A B 5.0 V
Base-Emitter Saturation Voltage IC= 6A; IB= 1.2A B 1.5 V
Collector Cutoff Current VCB= 1500V; IE= 0 1.0 mA
Emitter Cutoff Current VEB= 5V; IC= 0 83 250 mA
DC Current Gain IC= 1A; VCE= 5V 10 30
DC Current Gain IC= 6A; VCE= 5V 5 9
C-E Diode Forward Voltage IF= 6A 1.8 V
Current-Gain—Bandwidth Product IC= 0.1A; VCE= 10V 2 MHz
C
OB
Switching Times
t
s
t
f
Output Capacitance
Storage Time 8.5 μs
Fall Time
I
= 0; VCB= 10V; f
E
ICP= 6A, I
fH= 15.75kHz
B1(
end
test
= 1.2A,
)
=1.0MHz
125 pF
0.7 μs
isc Website：www.iscsemi.cn
