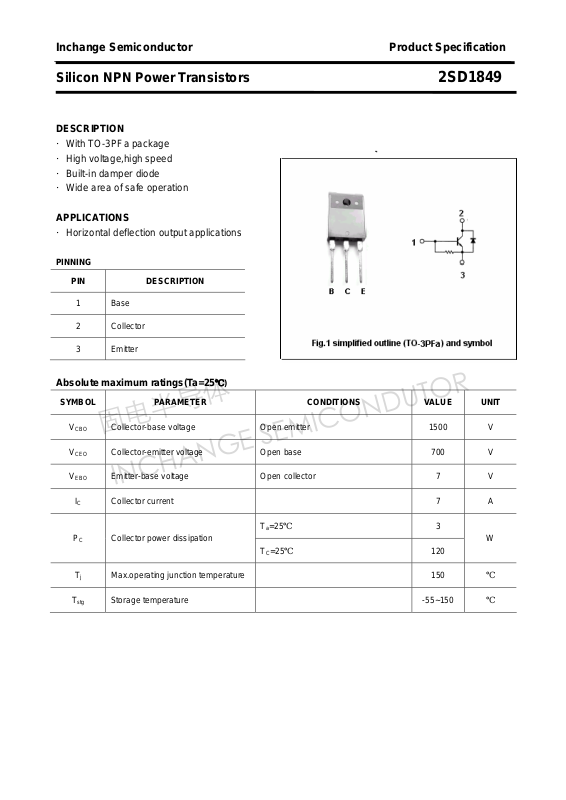

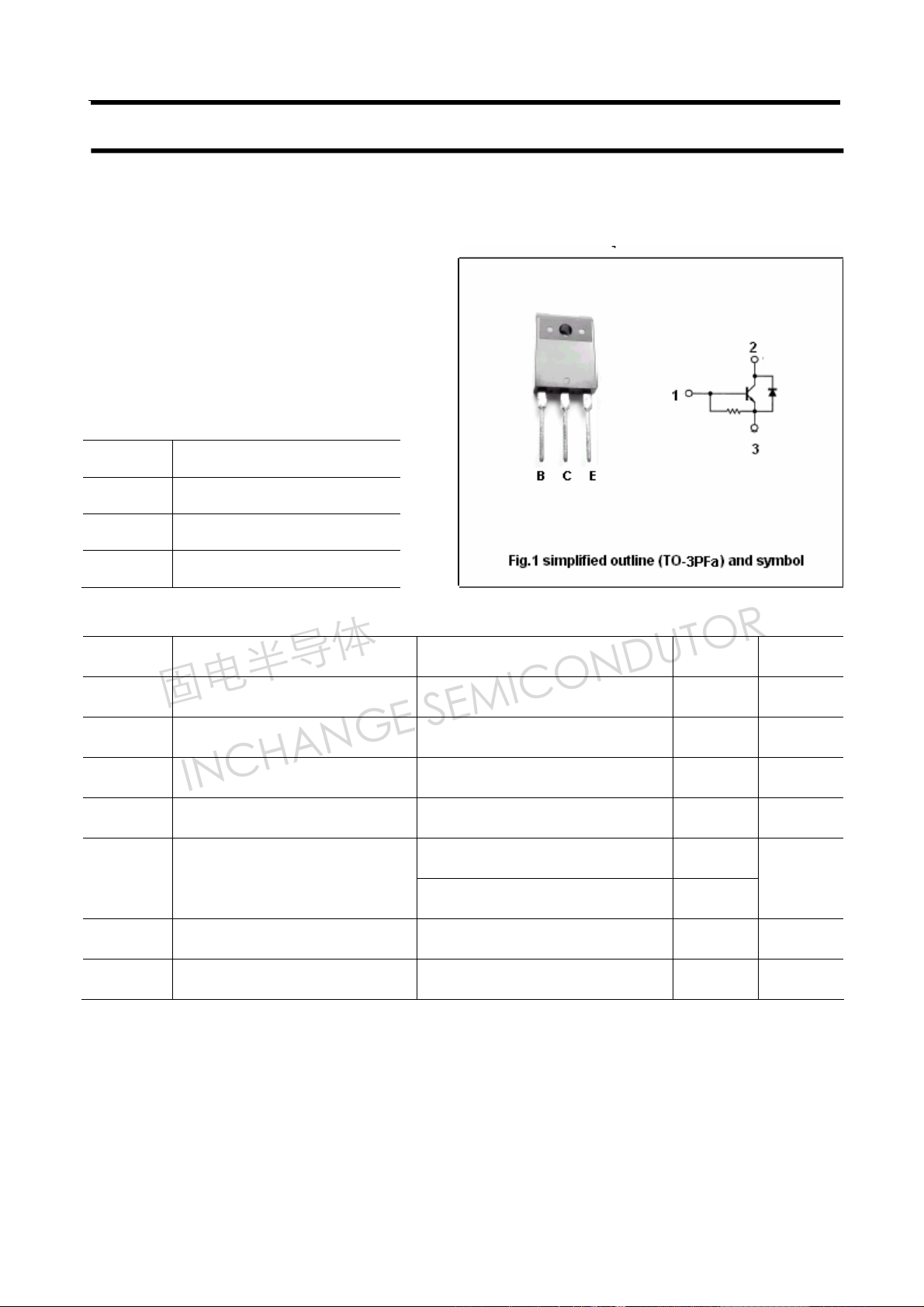

Page 1
固电半导体
INCHANGE SEMICONDUTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD1849
DESCRIPTION
·With TO-3PFa package
·High voltage,high speed
·Built-in damper diode
·Wide area of safe operation
APPLICATIONS
·Horizontal deflection output applications
PINNING
PIN DESCRIPTION
1
2 Collector
3 Emitter
Base
Absolute maximum ratings(Ta=25℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current 7 A
PC Collector power dissipation
Tj Max.operating junction temperature 150 ℃
Collector-base voltage Open emitter 1500 V
Collector-emitter voltage Open base 700 V
Emitter-base voltage Open collector 7 V
Ta=25℃ 3
W
T
=25℃ 120
C
T
Storage temperature -55~150 ℃
stg
Page 2
固电半导体
INCHANGE SEMICONDUTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD1849
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)EBO
V
CEsat
V
BEsat
I
CBO
h
FE-1
h
FE-2
fT Transition frequency IC=1A ; VCE=10V;f=0.5MHz 2 MHz
VF Diode forward voltage IC=7A 2.0 V
Emitter-base breakdown voltage IE=500mA ;IC=0 7 V
Collector-emitter saturation voltage IC=6A; IB=1.4A 8.0 V
Base-emitter saturation voltage IC=6A; IB=1.4A 1.5 V
VCB=750V; IE=0 10 μA
Collector cut-off current
=1500V; IE=0 1.0 mA
V
CB
DC current gain IC=1A ; VCE=5V 5 25
DC current gain IC=6A ; VCE=10V 4
2
Page 3
固电半导体
INCHANGE SEMICONDUTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD1849
PACKAGE OUTLINE
3
Fig.2 Outline dimensions (unindicated tolerance:±0.30mm)
