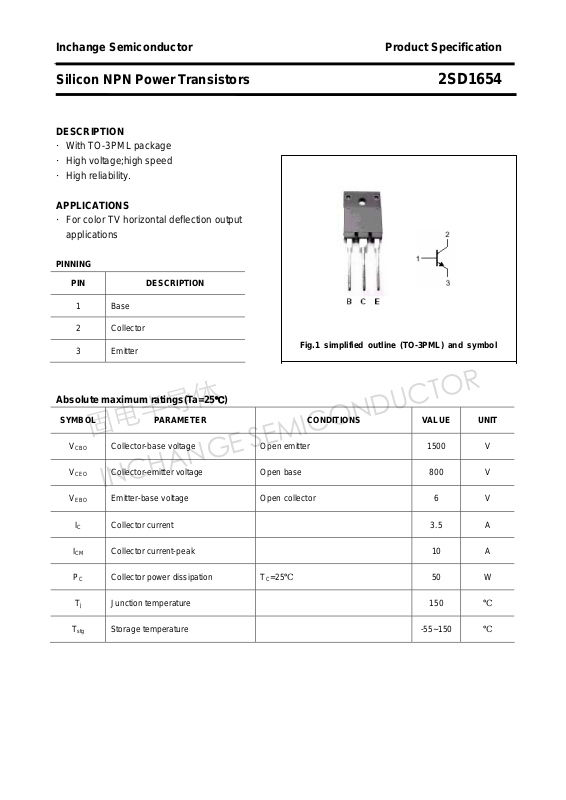

Page 1
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD1654
DESCRIPTION
·With TO-3PML package
·High voltage;high speed
·High reliability
APPLICATIONS
·For color TV horizontal deflection output
applications
PINNING
PIN DESCRIPTION
.
1
2 Collector
3 Emitter
Base
Fig.1 simplified outline (TO-3PML) and symbol
Absolute maximum ratings(Ta=25
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current 3.5 A
ICM Collector current-peak 10 A
PC Collector power dissipation
Collector-base voltage Open emitter 1500 V
Collector-emitter voltage Open base 800 V
Emitter-base voltage Open collector 6 V
℃)
T
=25℃
C
50 W
Tj Junction temperature 150
T
Storage temperature -55~150
stg
℃
℃
Page 2
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD1654
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CEO
V
(BR)CBO
V
CEsat
V
BEsat
I
EBO
I
CBO
hFE DC current gai n IC=0.5 A ; VCE=5V 8
fT Transition frequency IC=0.5 A ; VCE=10V 3 MHz
tf
Collector-emitter breakdown voltage IC=0.1A; RBE=∞ 800
Collector-base breakdown voltage IC=5mA; IE=0 1500
Collector-emitter saturation voltage IC=2.5A;IB=0.8A 8.0 V
Base-emitter saturation voltage IC=2.5A;IB=0.8A 1.5 V
Emitter cut-off current VEB=5V; IC=0 1.0 mA
Collector cut-off current VCB=800V; IE=0 10 μA
Fall time
IC=3A;IB1=0.8A;IB2=-1.6A
=200V;RL=66.7Ω
V
CC
0.7 μs
2
Page 3
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD1654
PACKAGE OUTLINE

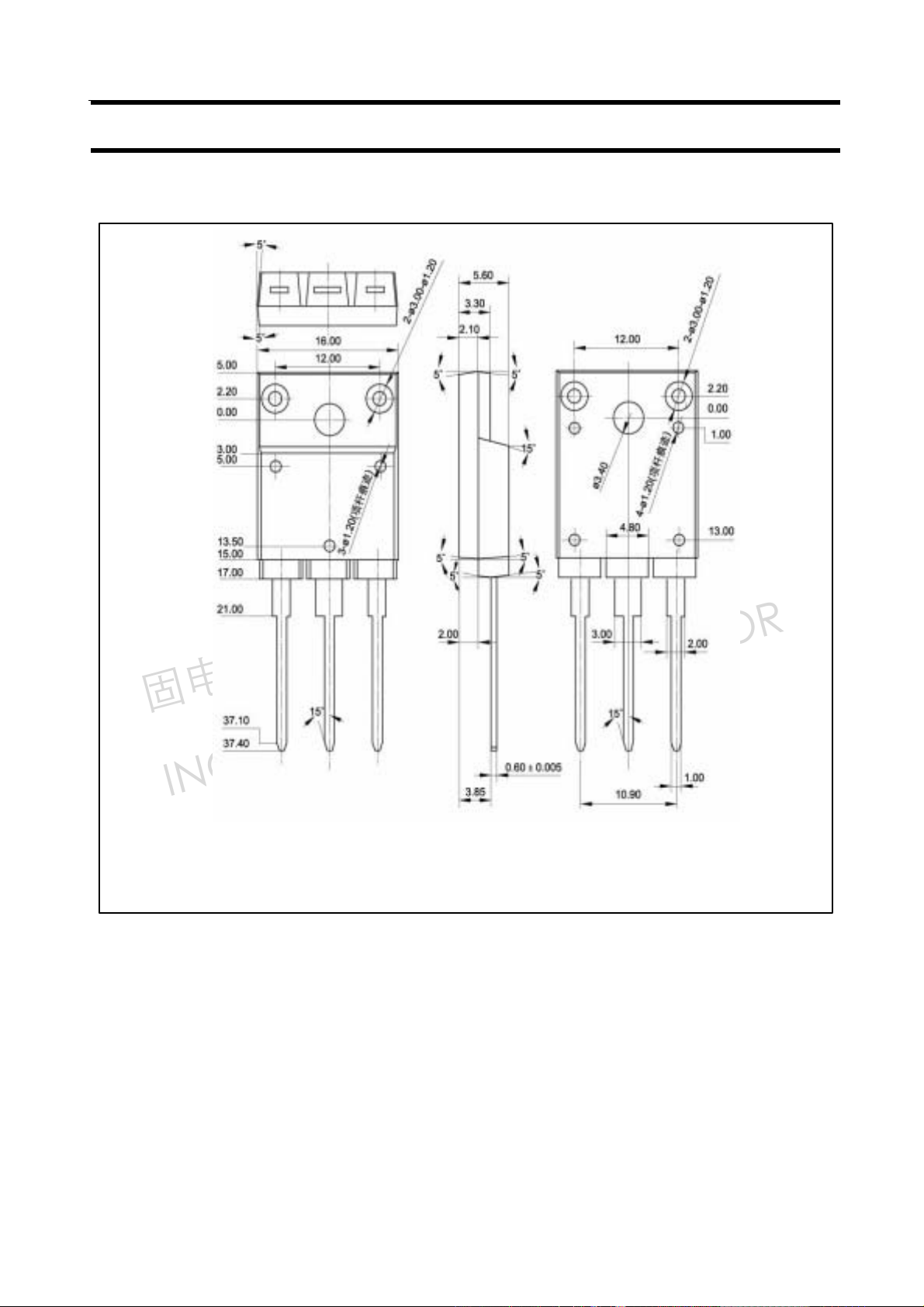

Fig.2 Outline dimensions
3
