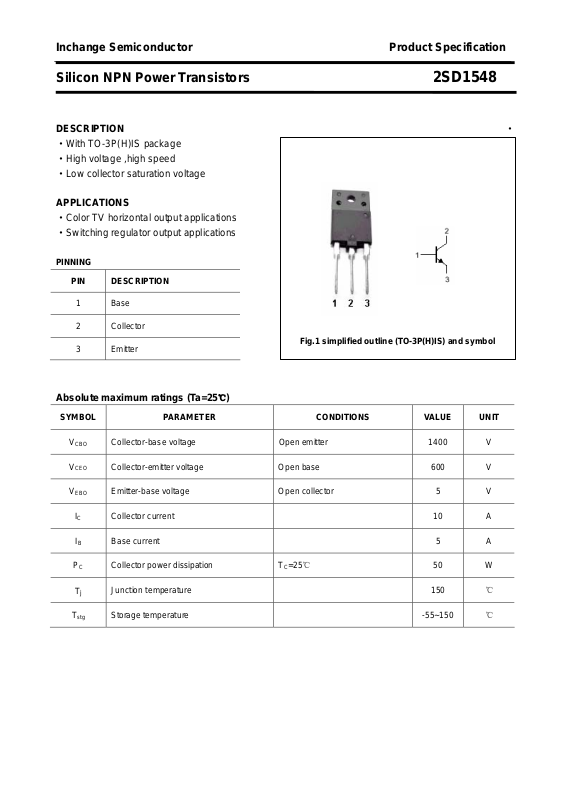

Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD1548
DESCRIPTION ·
·With TO-3P(H)IS package
·High voltage ,high speed
·Low collector saturation voltage
APPLICATIONS
·Color TV horizontal output applications
·Switching regulator output applications
PINNING
PIN DESCRIPTION
1
2 Collector
3 Emitter
Base

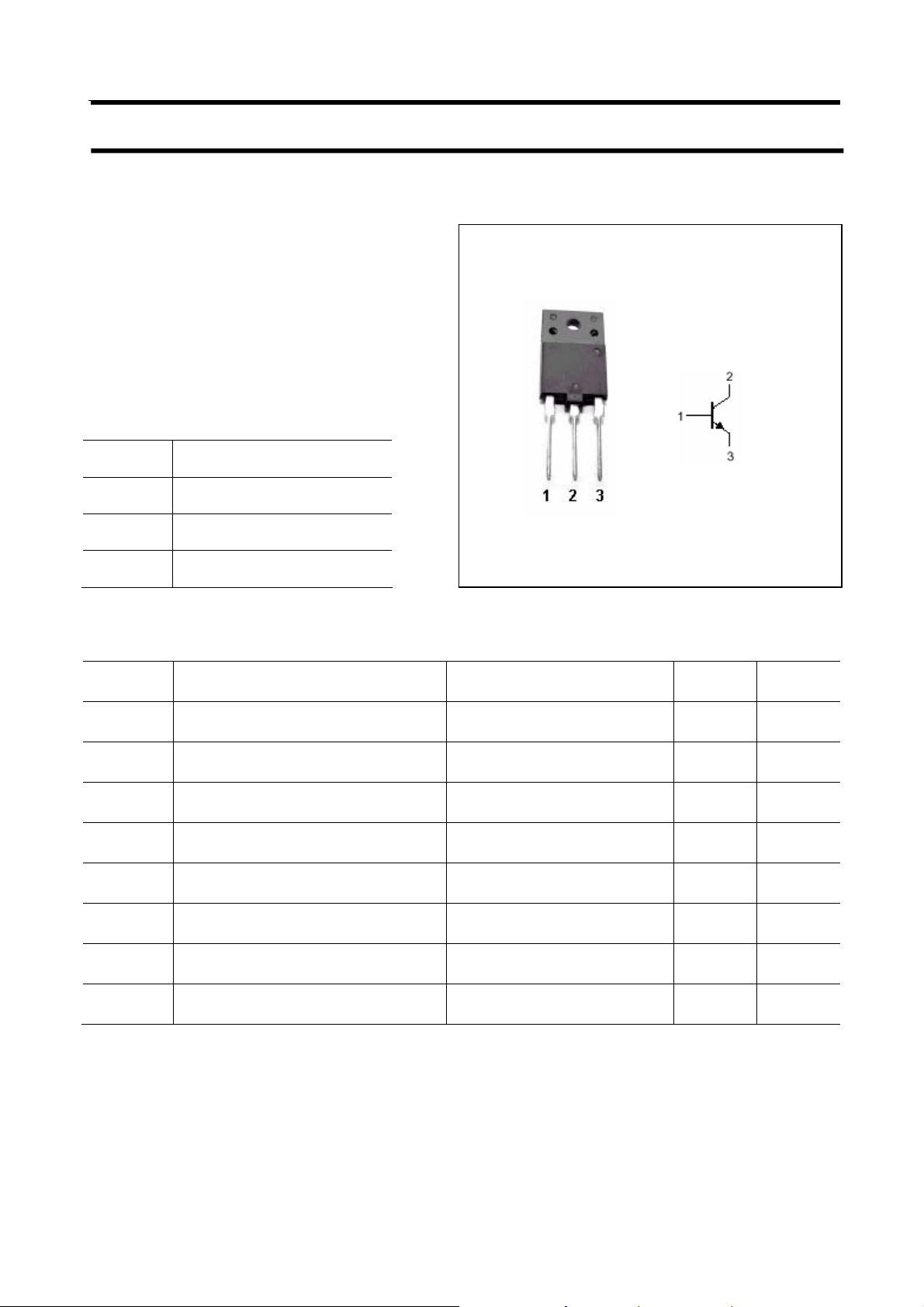

Fig.1 simplified outline (TO-3P(H)IS) and symbol
Absolute maximum ratings (Ta=25
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current 10 A
IB Base current 5 A
PC Collector power dissipation TC=25℃ 50 W
Collector-base voltage Open emitter 1400 V
Collector-emitter voltage Open base 600 V
Emitter-base voltage Open collector 5 V
℃)
Tj
T
stg
Junction temperature 150 ℃
Storage temperature -55~150 ℃
Page 2
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD1548
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
Collector-emitter saturation voltage IC=8A ;IB=2A 5.0 V
CEsat
V
Base-emitter saturation voltage IC=8A ;IB=2A 1.6 V
BEsat
I
Collector cut-off current VCB=500V; IE=0 10
CBO
I
Emitter cut-off current VEB=5V; IC=0 1 mA
EBO
h
DC current gain IC=2A ; VCE=5V 8
FE
μA
fT Transition frequency IC=0.1A ; VCE=10V 3 MHz
COB Collector output capacitance IE=0 ; VCB=10V;f=1MHz 165 pF
tf
Fall time
ICP=7A ;I
B1
(end)
=1.5A
1.0
μs
2
Page 3
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD1548
PACKAGE OUTLINE

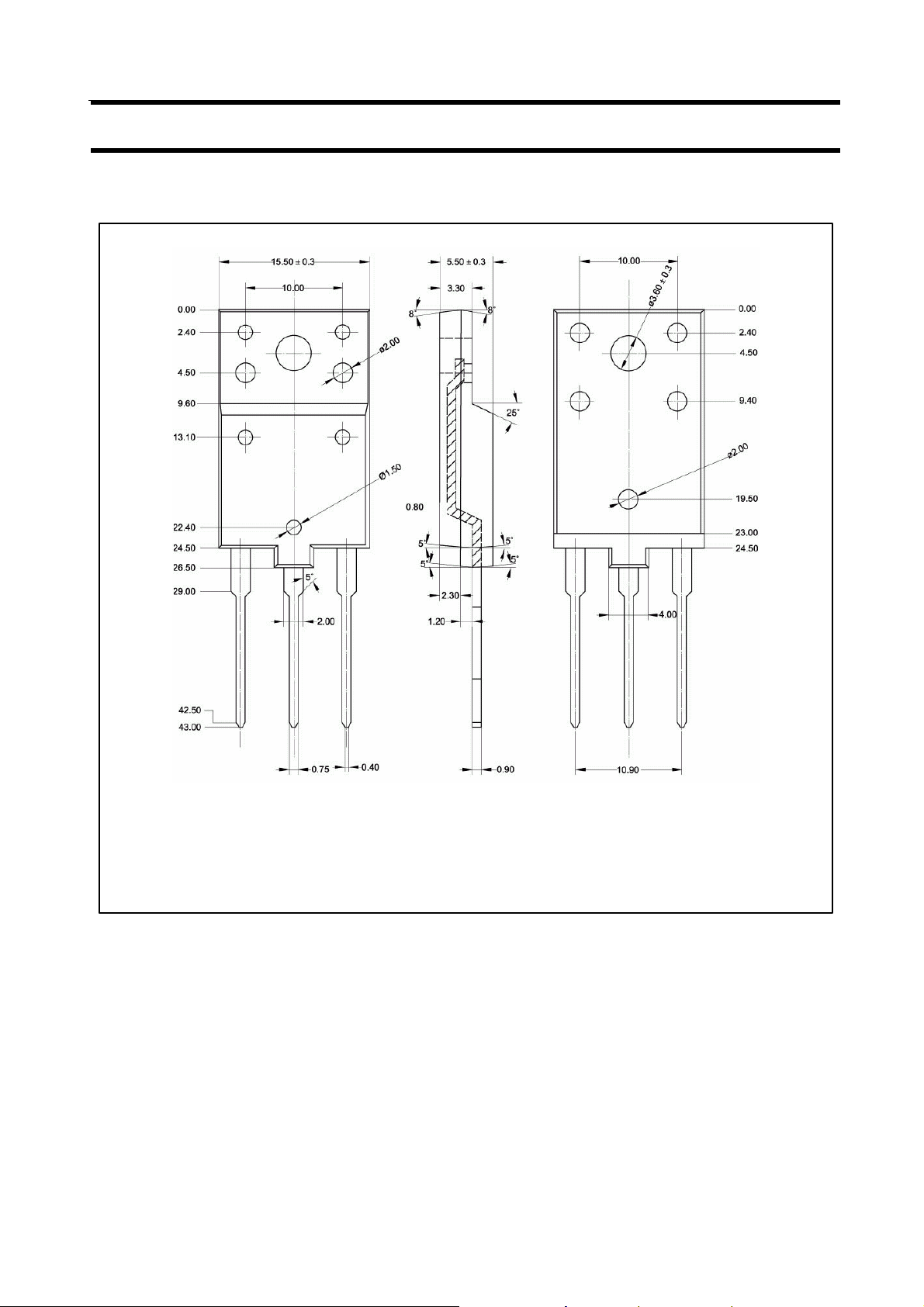

Fig.2 Outline dimensions (unindicated tolerance:±0.15 mm)
3
