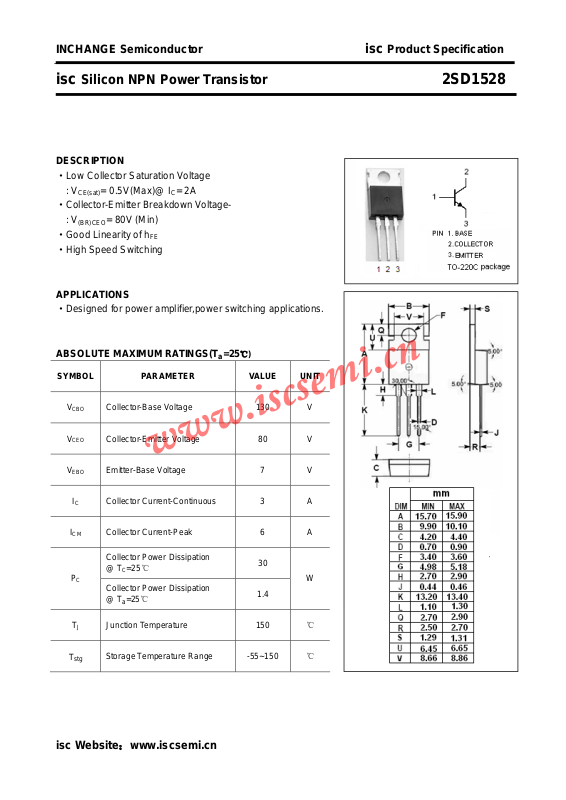

Page 1
INCHANGE Semiconductor isc Product Specification
www.iscsemi.cn
isc Silicon NPN Power Transistor 2SD1528
DESCRIPTION
·Low Collector Saturation Voltage
: V
·Collector-Emitter Breakdown Voltage-
: V
·Good Linearity of h
·High Speed Switching
APPLICATIONS
·Designed for power amplifier,power switching applications.
ABSOLUTE MAXIMUM RATINGS(T
= 0.5V(Max)@ IC= 2A
CE(sat)
= 80V (Min)
(BR)CEO
FE
=25℃)
a
SYMBOL PARAMETER VALUE UNIT
V
V
V
I
P
CBO
CEO
EBO
I
C
CM
C
T
J
Collector-Base Voltage 130 V
Collector-Emitter Voltage 80 V
Emitter-Base Voltage 7 V
Collector Current-Continuous 3 A
Collector Current-Peak 6 A
Collector Power Dissipation
=25℃
@ T
C
Collector Power Dissipation
@ T
=25℃
a
Junction Temperature 150
30
W
1.4
℃
T
stg
Storage Temperature Range -55~150
isc Website：www.iscsemi.cn
℃
Page 2
INCHANGE Semiconductor isc Product Specification
www.iscsemi.cn
isc Silicon NPN Power Transistor 2SD1528
ELECTRICAL CHARACTERISTICS
TC=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CEO
V
CE(
sat
V
BE(
sat
I
CBO
I
EBO
h
FE-1
h
FE-2
f
T
Switching times
t
on
Collector-Emitter Breakdown Voltage IC= 10mA; IB= 0 80 V
Collector-Emitter Saturation Voltage IC= 2A; IB= 0.1A B 0.5 V
)
Base-Emitter Saturation Voltage IC= 2A; IB= 0.1A B 1.2 V
)
Collector Cutoff Current VCB= 100V; IE= 0 10
Emitter Cutoff Current VEB= 5V; IC= 0 50
DC Current Gain IC= 0.1A; VCE= 2V 45
DC Current Gain IC= 1A; VCE= 2V 60 260
Current-Gain—Bandwidth Product IC= 0.5A; VCE= 10V; f= 10MHz 25 MHz
Turn-on Time 0.5
μA
μA
μs
t
stg
t
f
Storage Time 1.5
Fall Time
h
classifications
FE-2
R Q P
60-120 90-180 130-260
IC= 2A; IB1= -IB2= 0.1A;
VCC= 50V
μs
0.5
μs
isc Website：www.iscsemi.cn
