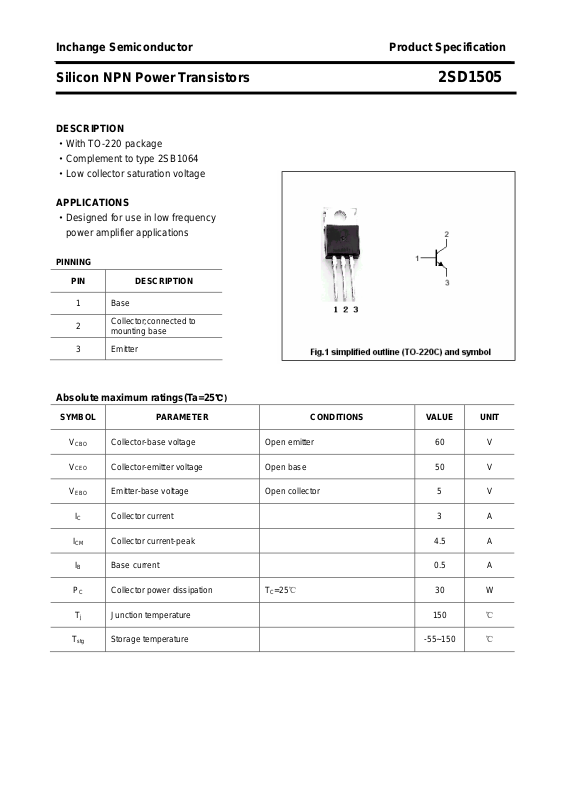

Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD1505
DESCRIPTION
·With TO-220 package
·Complement to type 2SB1064
·Low collector saturation voltage
APPLICATIONS
·Designed for use in low frequency
power amplifier applications

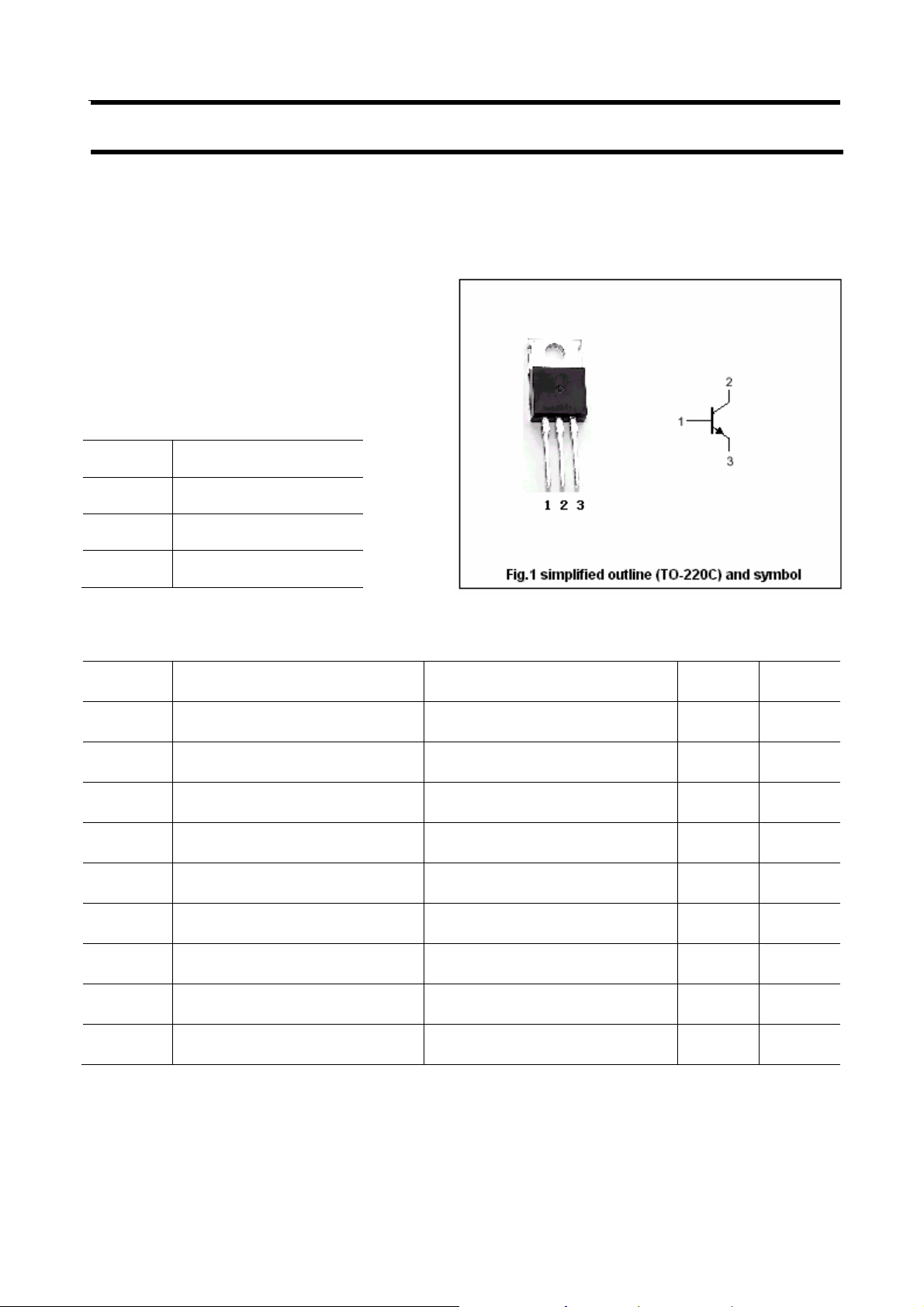

PINNING
PIN DESCRIPTION
1
2
3 Emitter
Base
Collector;connected to
mounting base
Absolute maximum ratings(Ta=25℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current 3 A
ICM Collector current-peak 4.5 A
IB Base current 0.5 A
Collector-base voltage Open emitter 60 V
Collector-emitter voltage Open base 50 V
Emitter-base voltage Open collector 5 V
PC Collector power dissipation TC=25℃ 30 W
Tj Junction temperature 150 ℃
T
Storage temperature -55~150 ℃
stg
Page 2
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD1505
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
V
V
Collector-emitter breakdown voltage IC=1mA ,IB=0 50 V
(BR)CEO
Collector-base breakdown voltage IC=50μA ,IE=0 60 V
(BR)CBO
(BR)EBO
V
CEsat
V
BEsat
I
CBO
I
EBO
Emitter-base breakdown voltage IE=50μA ,IC=0 5 V
Collector-emitter saturation voltage IC=2A; IB=0.2A 1.0 V
Base-emitter saturation voltage IC=2A; IB=0.2A 1.5 V
Collector cut-off current VCB=40V; IE=0 1.0 μA
Emitter cut-off current VEB=4V; IC=0 1.0 μA
hFE DC current gain IC=0.5A ; VCE=3V 60 320
COB Output capacitance IE=0 ; VCB=10V,f=1MHz 40 pF
fT Transition frequency IC=0.5A ; VCE=5V 90 MHz
2
Page 3
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SD1505
PACKAGE OUTLINE
Fig.2 Outline dimensions(unindicated tolerance:±0.10 mm)
