INCHANGE Semiconductor isc Product Specification
www.iscsemi.cn

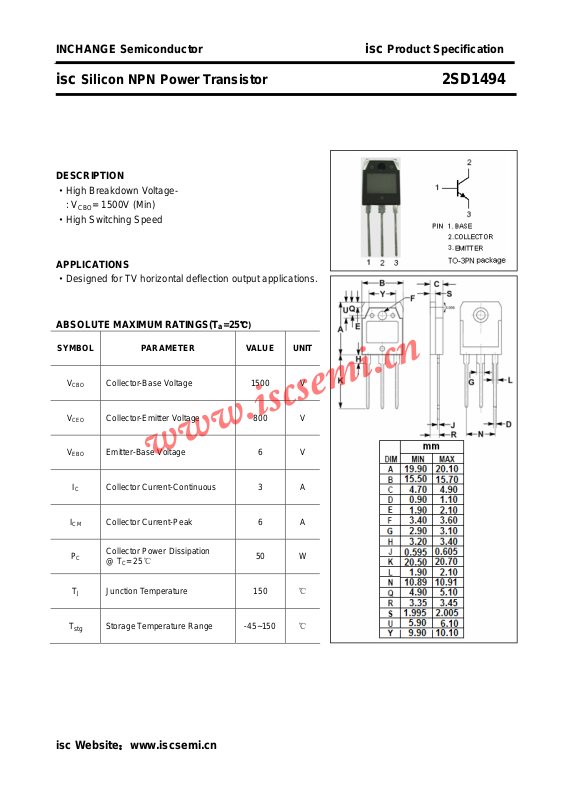

isc Silicon NPN Power Transistor 2SD1494
DESCRIPTION
·High Breakdown Voltage : V
= 1500V (Min)
CBO
·High Switching Speed
APPLICATIONS
·Designed for TV horizontal deflection output applications.
ABSOLUTE MAXIMUM RATINGS(T
=25℃)
a
SYMBOL PARAMETER VALUE UNIT
V
CBO
V
CEO
V
EBO
I
C
I
CM
P
C
T
J
Collector-Base Voltage 1500 V
Collector-Emitter Voltage 800 V
Emitter-Base Voltage 6 V
Collector Current-Continuous 3 A
Collector Current-Peak 6 A
Collector Power Dissipation
= 25℃
@ T
C
Junction Temperature 150
50 W
℃
T
stg
Storage Temperature Range -45~150
℃
isc Website：www.iscsemi.cn
Page 2
INCHANGE Semiconductor isc Product Specification
www.iscsemi.cn
isc Silicon NPN Power Transistor 2SD1494
ELECTRICAL CHARACTERISTICS
TC=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
V
(BR)CEO
(BR)EBO
V
CE
V
BE
I
CBO
t
(sat)
(sat)
f
Collector-Emitter Breakdown Voltage IC= 10mA; RBE= ∞ 800 V
Emitter-Base Breakdown Voltage IE= 10mA; IC= 0 6 V
Collector-Emitter Saturation Voltage IC= 2.5A; IB= 0.8A 5.0 V
Base-Emitter Saturation Voltage IC= 2.5A; IB= 0.8A 1.5 V
Collector Cutoff Current VCB= 600V; IE= 0 10 μA
Fall Time
I
= 2.75A, I
C
= 0.6A, I
B
1
= -1.3A
B
2
1.0 μs
isc Website：www.iscsemi.cn
