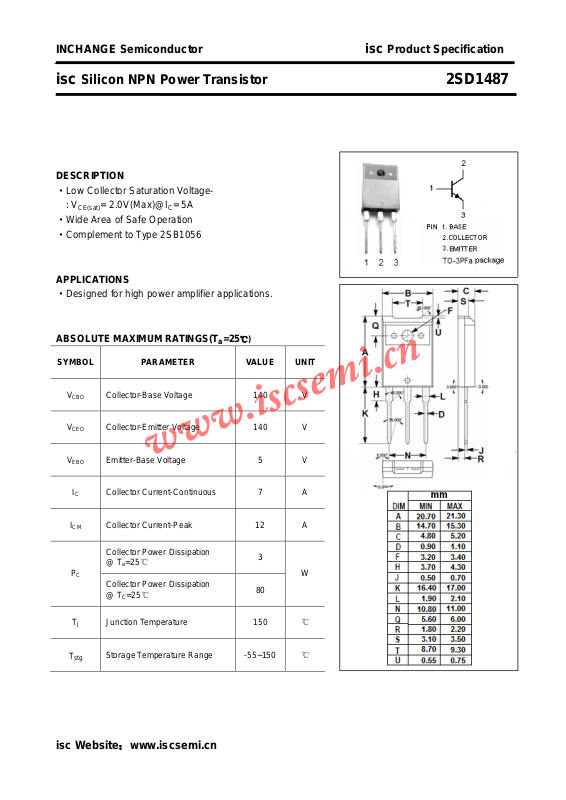

INCHANGE Semiconductor isc Product Specification
www.iscsemi.cn
isc Silicon NPN Power Transistor 2SD1487
DESCRIPTION
·Low Collector Saturation Voltage : V
CE(sat)
·Wide Area of Safe Operation
·Complement to Type 2SB1056
APPLICATIONS
·Designed for high power amplifier applications.
ABSOLUTE MAXIMUM RATINGS(T
= 2.0V(Max)@IC= 5A
=25℃)
a
SYMBOL PARAMETER VALUE UNIT
V
V
V
I
P
CBO
CEO
EBO
I
C
CM
C
T
J
Collector-Base Voltage 140 V
Collector-Emitter Voltage 140 V
Emitter-Base Voltage 5 V
Collector Current-Continuous 7 A
Collector Current-Peak 12 A
Collector Power Dissipation
=25℃
@ T
a
Collector Power Dissipation
=25℃
@ T
C
Junction Temperature 150 ℃
3
W
80
T
stg
Storage Temperature Range -55~150 ℃
isc Website：www.iscsemi.cn
Page 2
INCHANGE Semiconductor isc Product Specification
www.iscsemi.cn
isc Silicon NPN Power Transistor 2SD1487
ELECTRICAL CHARACTERISTICS
TC=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
CE
V
BE
I
I
h
h
h
C
h
Collector-Emitter Saturation Voltage IC= 5A; IB= 0.5A B 2.0 V
Base-Emitter On Voltage IC= 5A; VCE= 5V 1.8 V
Collector Cutoff Current VCB= 140V; IE= 0 50 μA
Emitter Cutoff Current VEB= 3V; IC= 0 50 μA
DC Current Gain IC= 20mA; VCE= 5V 20
DC Current Gain IC= 1A; VCE= 5V 40 200
DC Current Gain IC= 5A; VCE= 5V 20
Output Capacitance IE= 0; VCB= 10V; f= 1.0MHz 330 pF
Current-Gain—Bandwidth Product IC= 0.5A; VCE= 5V 20 MHz
Classifications
CBO
EBO
FE-1
FE-2
FE-3
OB
f
T
(sat)
(on)
FE-2
R Q P
40-80 60-120 100-200
