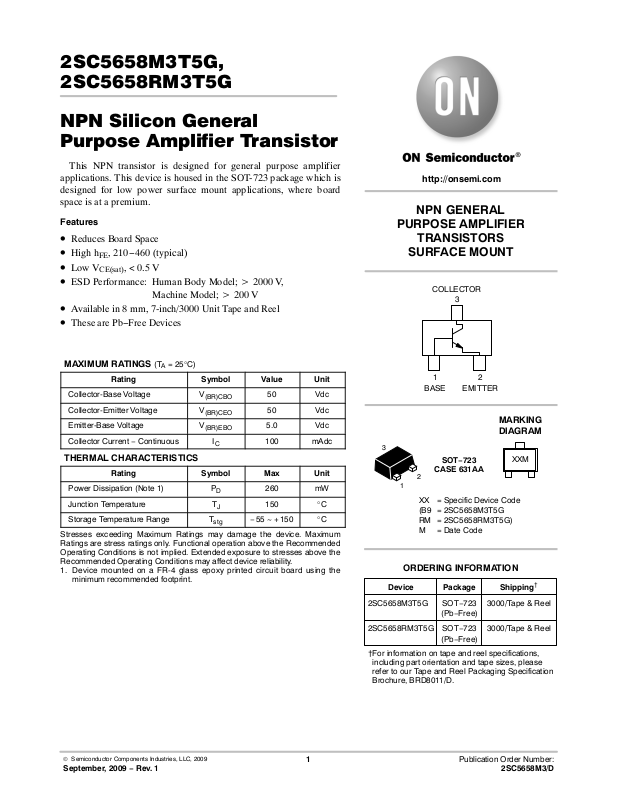

2SC5658M3T5G, 2SC5658RM3T5G

NPN Silicon General Purpose Amplifier Transistor

This NPN transistor is designed for general purpose amplifier applications. This device is housed in the SOT-723 package which is designed for low power surface mount applications, where board space is at a premium.

Features

• Reduces Board Space

• High h

• Low V

• ESD Performance: Human Body Model; u 2000 V,

• Available in 8 mm, 7-inch/3000 Unit Tape and Reel

• These are Pb−Free Devices

, 210−460 (typical)

, < 0.5 V

CE(sat)

Machine Model; u 200 V

http://onsemi.com

NPN GENERAL

PURPOSE AMPLIFIER

TRANSISTORS

SURFACE MOUNT

COLLECTOR

MAXIMUM RATINGS (T

Rating

Collector-Base Voltage V

Collector-Emitter Voltage V

Emitter-Base Voltage V

Collector Current − Continuous I

= 25°C)

Symbol Value Unit

(BR)CBO

(BR)CEO

(BR)EBO

50 Vdc

5.0 Vdc

100 mAdc

THERMAL CHARACTERISTICS

Rating Symbol Max Unit

Power Dissipation (Note 1) P

Junction Temperature T

Storage Temperature Range T

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

1. Device mounted on a FR-4 glass epoxy printed circuit board using the

minimum recommended footprint.

stg

260 mW

150 °C

−55 ~ +150 °C

BASE2EMITTER

MARKING DIAGRAM

SOT−723

CASE 631AA

XX = Specific Device Code (B9 = 2SC5658M3T5G RM = 2SC5658RM3T5G) M = Date Code

XXM

ORDERING INFORMATION

Device Package Shipping

2SC5658M3T5G SOT−723

(Pb−Free)

2SC5658RM3T5G SOT−723

(Pb−Free)

†For information on tape and reel specifications,

including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D.

3000/Tape & Reel

†

September, 2009 − Rev. 1

1 Publication Order Number:

2SC5658M3/D

Page 2

2SC5658M3T5G, 2SC5658RM3T5G

ELECTRICAL CHARACTERISTICS (T

= 25°C)

Characteristic

Collector-Base Breakdown Voltage (IC = 50 mAdc, IE = 0)

Collector-Emitter Breakdown Voltage (IC = 1.0 mAdc, IB = 0) V

Emitter-Base Breakdown Voltage (IE = 50 mAdc, IE = 0)

Collector-Base Cutoff Current (VCB = 30 Vdc, IE = 0) I

Emitter-Base Cutoff Current (VEB = 4.0 Vdc, IB = 0) I

Collector-Emitter Saturation Voltage (Note 2)

= 60 mAdc, IB = 5.0 mAdc)

DC Current Gain (Note 2)

= 6.0 Vdc, IC = 1.0 mAdc) 2SC5658M3T5G

= 6.0 Vdc, IC = 1.0 mAdc) 2SC5658RM3T5G

Transition Frequency (VCE = 12 Vdc, IC = 2.0 mAdc, f = 30 MHz) f

Output Capacitance (VCB = 12 Vdc, IC = 0 Adc, f = 1.0 MHz) C

2. Pulse Test: Pulse Width ≤ 300 ms, D.C. ≤ 2%.

Symbol Min Typ Max Unit

(BR)CBO

(BR)CEO

(BR)EBO

CBO

EBO

CE(sat)

50 − − Vdc

5.0 − − Vdc

− − 0.5

Vdc

− − 0.4

120 215

−

560 375

− 180 − MHz

− 2.0 − pF

−

http://onsemi.com

Page 3

2SC5658M3T5G, 2SC5658RM3T5G

TYPICAL ELECTRICAL CHARACTERISTICS

, COLLECTOR CURRENT (mA)

1.5

0.5

, COLLECTOR‐EMITTER VOLTAGE (V)

0.01

= 25°C

24 68

VCE, COLLECTOR VOLTAGE (V)

Figure 1. IC − V

0.1 1 10 100 IB, BASE CURRENT (mA)

Figure 3. Collector Saturation Region

160 mA

140 mA

120 mA

100 mA

80 mA

60 mA

40 mA

IB = 20 mA

TA = 25°C

1000

100

DC CURRENT GAIN

0.1

900

800

700

600

500

400

300

COLLECTOR VOLTAGE (mV)

200

100

0.2

TA = 75°C

TA = 25°C

TA = - 25°C

1 10 100

IC, COLLECTOR CURRENT (mA)

VCE = 10 V

Figure 2. DC Current Gain

TA = 25°C V

= 5 V

0.5 1 5 10 20 40 60 80 100 150 200

IC, COLLECTOR CURRENT (mA)

Figure 4. On Voltage

, INPUT CAPACITANCE (pF)

, CAPACITANCE (pF)

123470

VEB (V)

Figure 5. Capacitance

http://onsemi.com

10 20 30 40

VCB (V)

Figure 6. Capacitance

Page 4

2SC5658M3T5G, 2SC5658RM3T5G

PACKAGE DIMENSIONS

SOT−723

CASE 631AA−01

ISSUE D

BOTTOM VIEW

TOP VIEW

−X−

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

−Y−

X0.08 Y

SIDE VIEW

2. CONTROLLING DIMENSION: MILLIMETERS.

3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL.

4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS.

MILLIMETERS

DIM MIN NOM MAX

A 0.45 0.50 0.55 b 0.15 0.21 0.27

b1 0.25 0.31 0.37

C 0.07 0.12 0.17 D 1.15 1.20 1.25 E 0.75 0.80 0.85 e

H 1.15 1.20 1.25

L2 0.15 0.20 0.25

0.40 BSC

0.29 REF

RECOMMENDED

SOLDERING FOOTPRINT*

0.40

0.27

PACKAGE

OUTLINE

1.50

0.52

0.36

DIMENSIONS: MILLIMETERS

*For additional information on our Pb−Free strategy and soldering

details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.
