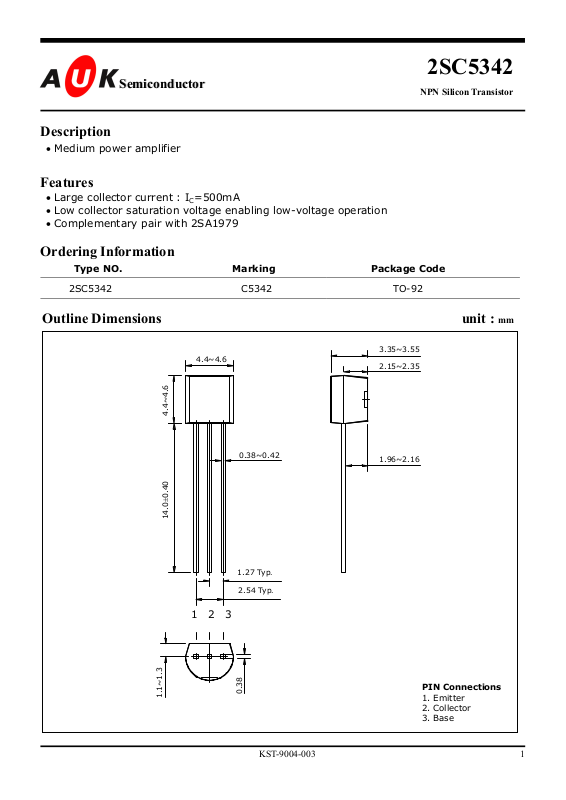

2SC5342
SSeemmiiccoonndduuccttoorr
Description
• Medium power amplifier
Features
• Large collector current : IC=500mA
• Low collector saturation voltage enabling low-voltage operation
• Complementary pair with 2SA1979
Ordering Information
Type NO. Marking Package Code
2SC5342 C5342 TO-92
Outline Dimensions unit : mm
4.4~4.6
NPN Silicon Transistor
3.35~3.55
2.15~2.35
4.4~4.6
14.0±0.40
1 2 3
0.38~0.42
1.27 Typ
2.54 Typ.
.
1.96~2.16
KST-9004-003
1.1~1.3
0.38
PIN Connections
1. Emitter
2. Collector
3. Base
1
Page 2
2SC5342
Absolute maximum ratings (Ta=25°C)
Characteristic Symbol Ratings Unit
Collector-Base voltage V
Collector-Emitter voltage V
Emitter-Base voltage V
Collector current IC 500 mA
Collector dissipation PC 625 mW
Junction temperature Tj 150
Storage temperature T
Electrical Characteristics (Ta=25°C)
Characteristic Symbol Test Condition Min. Typ. Max. Unit
I
Collector-Base breakdown voltage BV
Collector-Emitter breakdown voltage BV
Emitter-Base breakdown voltage BV
Collector cut-off current I
Emitter cut-off current I
DC current gain
Collector-Emitter saturation voltage V
Transition frequency fT VCE=6V, IE=-20mA - 300 - MHz
Collector output capacitance Cob VCB=6V, IE=0, f=1MHz - 7.0 - pF
CBO
CEO
EBO
CBO
EBO
*
h
FE
CE(sat)
=100µA, IE=0
C
IC=1mA, IB=0 32 - - V
=10µA, IC=0
I
E
VCB=40V, IE=0 - - 0.1
VEB=5V, IC=0 - - 0.1
V
CE
IC=100mA, IB=10mA - 0.25 V
40 V
CBO
32 V
CEO
5 V
EBO
°C
-55~150
stg
40 - - V
5 - - V
=1V, IC=100mA 70 - 240 -
°C
µA
µA
* : hFE Rank / O : 70~140, Y : 120~240
KST-9004-003
2
Page 3

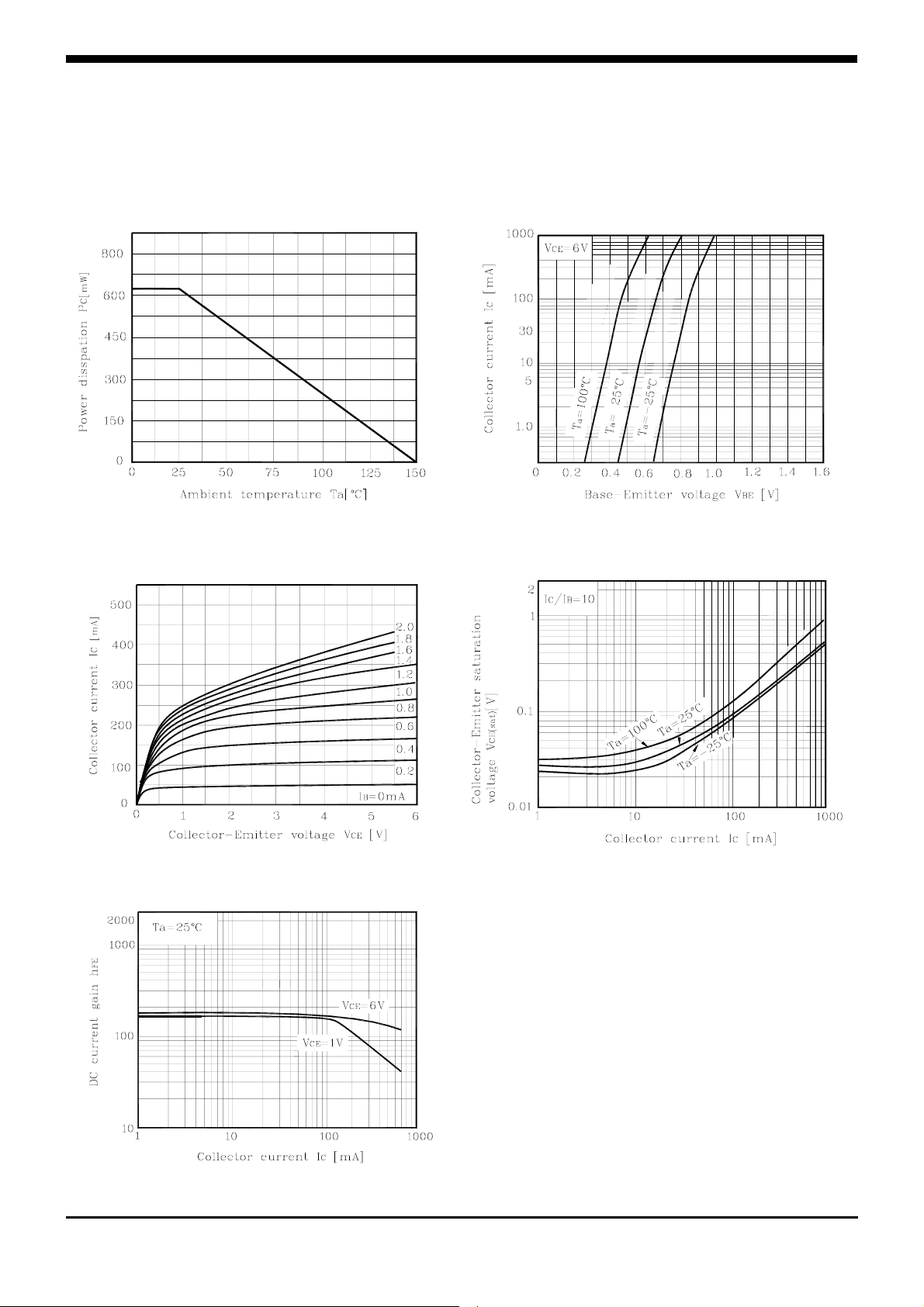

Electrical Characteristic Curves
2SC5342
Fig. 1 Pc - Ta
Fig. 3 IC - VCE
Fig. 2 I
Fig. 4 V
- VBE
C
CE(SAT)
- I
C
Fig. 5 hFE - IC
KST-9004-003
3
Page 4
2SC5342
