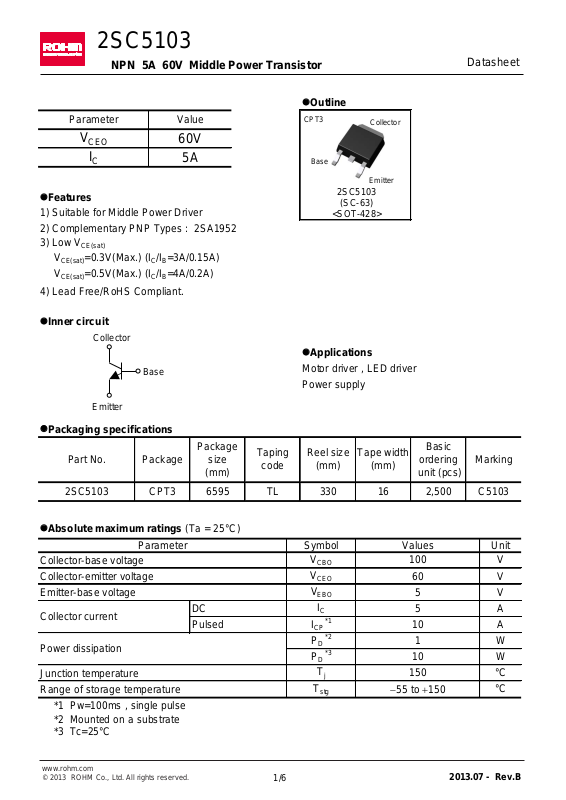

Datasheet

2SC5103

NPN 5A 60V Middle Power Transistor

l

Outline

l

Features

1) Suitable for Middle Power Driver

2) Complementary PNP Types : 2SA1952

3) Low V

CE(sat)

V

CE(sat)

=0.3V(Max.) (IC/IB=3A/0.15A)

V

CE(sat)

=0.5V(Max.) (IC/IB=4A/0.2A)

4) Lead Free/RoHS Compliant.

l

Inner circuit

l

Applications

Motor driver , LED driver Power supply

l

Packaging specifications

l

Absolute maximum ratings (Ta = 25°C)

Collector-base voltage Collector-emitter voltage Emitter-base voltage

DC Pulsed

Junction temperature Range of storage temperature

*1 Pw=100ms , single pulse

*2 Mounted on a substrate

*3 Tc=25°C

Parameter

Value

V

CEO

60V

I

C

5A

CPT3

Basic

ordering

unit (pcs)

Marking

2SC5103

CPT3

6595

TL

330

16

2,500

C5103

Part No.

Package

size

(mm)

Taping

code

Reel size

(mm)

Tape width

(mm)

Parameter

Symbol

Values

Unit

V

CBO

100

V

CEO

60

V

EBO

5

V

Collector current

I

C

5

A

I

CP

*1

10

A

Power dissipation

P

D

*2

1

W

T

stg

-55 to +150

°C

P

D

*3

10

W

T

j

150

°C

2SC5103

(SC-63)

<SOT-428>

Base

Emitter

Collector

Base

Emitter

1/6

2013.07 - Rev.B

Data Sheet

2SC5103

lElectrical characteristics (Ta = 25°C)

*1 Pulsed *2 See switching time test circuit

lhFE rank categories

lSwitching time test circuit

V

V-1.5V--0.5

V

Rank

Q

pF

Transition frequency

f

T

*1

V

CE

= 10V, IE = -0.5A

f=30MH

Z

-

120

0.3nsns

t

stg

*2

---

1.5

ns

t

on

*2

IC=3A IB1=0.15A IB2= -0.15A VCC⋍30V

--0.3

MHz

h

FE

120 to 270

-

Emitter cut-off current

I

EBO

V

EB

= 5V

-

hFE 2

V

CE

= 2V, IC = 3A

40

-

DC current gain

V

CE(sat)

*1

V

BE(sat)

*1

IC = 4A, IB = 0.2A

----0.1

Unit

VmA-V-V10mA10

Parameter

Symbol

Conditions

Min.

Typ.

Max.

Collector-emitter breakdown voltage

BV

CEO

IC = 1mA

60-80

-

Collector-base breakdown voltage

BV

CBO

IC = 50mA

100--

Emitter-base breakdown voltage

BV

EBO

IE = 50mA

5

-

IC = 4A, IB = 0.2A

-

120

0.15

0.3

-

1.2-270

-

t

f

*2

Collector cut-off current

I

CBO

V

CB

= 100V

Base-emitter saturation voltage

Turn-on time

Storage time

Fall time

Collector-emitter saturation voltage

IC = 3A, IB = 0.15A

V

CE

= 2V, IC = 1A

hFE 1

Output capacitance

C

ob

V

CB

= 10V, IE = 0A

f = 1MHz

-

2/6

2013.07 - Rev.B

Data Sheet

2SC5103

lElectrical characteristic curves(Ta = 25°C)

10

100

1000

0.01 0.1 1 10

VCE= 5V

2V 1V

Ta=25ºC Pulsed

Fig.1 Ground Emitter Propagation Characteristics

COLLECTOR CURRENT : I

C

[A]

BASE TO EMITTER VOLTAGE : V

BE

[V]

Fig.2 Typical Output Characteristics

COLLECTOR CURRENT : I

C

[A]

COLECTOR TO EMITTE VOLTAGE : V

CE

[V]

Fig.3 DC Current Gain vs. Collector Current (I)

DC CURRENT GAIN : h

FE

COLLECTOR CURRENT : IC [A]

Fig.4 DC Current Gain vs. Collector Current (II)

DC CURRENT GAIN : h

FE

COLLECTOR CURRENT : IC [A]

3/6

2013.07 - Rev.B

Data Sheet

2SC5103

lElectrical characteristic curves(Ta = 25°C)

0.001

0.01

0.1

1

0.01 0.1 1 10

Ta=25ºC Pulsed

IC / IB =20/1

10/1

Fig.5 Collector-Emitter Saturation Voltage vs. Collector Current (I)

COLLECTOR-EMITTER

SATURATION VOLTAGE : V

CE(sat)

[V]

COLLECTOR CURRENT : IC [A]

Fig.6 Collector-Emitter Saturation Voltage vs. Collector Current (II)

COLLECTOR-EMITTER

SATURATION VOLTAGE : V

CE(sat)

[V]

COLLECTOR CURRENT : IC [A]

Fig.7 Base-Emitter Saturation Voltage vs. Collector Current

BASE-EMITTER

SATURATION VOLTAGE : V

BE(sat)

[V]

COLLECTOR CURRENT : IC [A]

Fig.8 Gain Bandwidth Product vs. Emitter Current

TRANSITION FREQUENCY : f

T

[MHz]

EMITTER CURRENT :IE [A]

4/6

2013.07 - Rev.B

Data Sheet

2SC5103

lElectrical characteristic curves(Ta = 25°C)

Fig.9 Collector output capacitance vs. Collector-Base Voltage

COLLECTOR OUTPUT CAPACITANCE : Cob [pF]

COLLECTOR - BASE VOLTAGE : VCB [V]

Fig.10 Safe Operating Area

COLLECTOR CURRENT : I

C

[A]

COLLECTOR TO EMITTER VOLTAGE : VCE [V]

5/6

2013.07 - Rev.B

Data Sheet

2SC5103

lDimensions (Unit : mm)

Dimension in mm / inches

CPT3

D

b1

e

b

b3

b2

L3

A2

H

A1

A3

c

L1

Lp

x B A

L E L2

l3

l2

l1

b6

b5e

L4

c1

B

A

Pattern of terminal position areas

[Not a recommended pattern of soldering pads]

MIN MAX MIN MAX

A1

0.00 0.15 0.000 0.006

A2

2.20 2.50 0.087 0.098

A3

b

0.55 0.75 0.022 0.030

b1

5.00 5.30 0.197 0.209

b2b3c

0.40 0.60 0.016 0.024

c1

0.40 0.60 0.016 0.024

D

6.30 6.70 0.248 0.264

E

5.40 5.80 0.213 0.228

e

HE

9.00 10.00 0.354 0.394

L

2.20 2.80 0.087 0.110

L1

0.80 1.40 0.031 0.055

L2

1.20 1.80 0.047 0.071

L3L4Lp

1.00 1.60 0.039 0.063

x

- 0.25 - 0.010

MIN MAX MIN MAX

b5

- 1.00 - 0.04

b6

- 5.20 - 0.205

ｌ1

- 2.50 - 0.098

ｌ2

- 5.50 - 0.217

ｌ3

- 10.00 - 0.394

DIM

MILIMETERS

INCHES

0.25

0.010

5.00

0.197

0.75

0.030

2.30

0.091

5.30

0.209

0.90

0.035

DIM

MILIMETERS

INCHES

6/6

2013.07 - Rev.B
