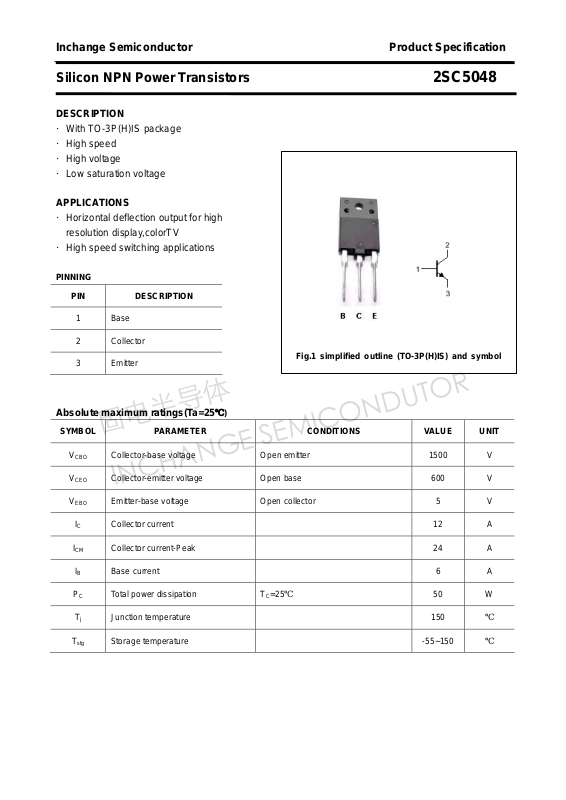

Page 1
固电半导体
INCHANGE SEMICONDUTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC5048
DESCRIPTION
·With TO-3P(H)IS package
·High speed
·High voltage
·Low saturation voltage
APPLICATIONS
·Horizontal deflection output for high
resolution display,colorTV
·High speed switching applications
PINNING
PIN DESCRIPTION
1
2 Collector
3 Emitter
Base
Fig.1 simplified outline (TO-3P(H)IS) and symbol
Absolute maximum ratings(Ta=25
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current 12 A
ICM Collector current-Peak 24 A
IB Base current 6 A
Collector-base voltage Open emitter 1500 V
Collector-emitter voltage Open base 600 V
Emitter-base voltage Open collector 5 V
℃)
T
PC Total power dissipation
Tj Junction temperature 150
T
Storage temperature -55~150
stg
=25℃
C
50 W
℃
℃
Page 2
固电半导体
INCHANGE SEMICONDUTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC5048
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CEO
V
CEsat
V
BEsat
I
CBO
I
EBO
h
FE-1
h
FE-2
Cob Collector output capacitance IE=0 ; VCB=10V,f=1MHz 160 pF
fT Transition frequency IE=0.1A ; VCE=10V 1.7 MHz
Switching times (inductive load)
ts Storage time 2.5 4 μs
tf Fall time
Collector-emitter breakdown voltage IC=10mA ;IB=0 600 V
Collector-emitt er saturation voltage IC=8A; IB=2A 3 V
Base-emitter saturation voltage IC=8A; IB=2A 1.0 1.4 V
Collector cut-off current VCB=1500V; IE=0 1 mA
Emitter cut-off current VEB=5V; IC=0 10 μA
DC current gain IC=1A ; VCE=5V 10 30
DC current gain IC=8A ; VCE=5V 4 8
I
=6A;I
CP
f
=64kHz
H
B1
(end)
=1.15A
0.15 0.3 μs
2
Page 3
固电半导体
INCHANGE SEMICONDUTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC5048
PACKAGE OUTLINE

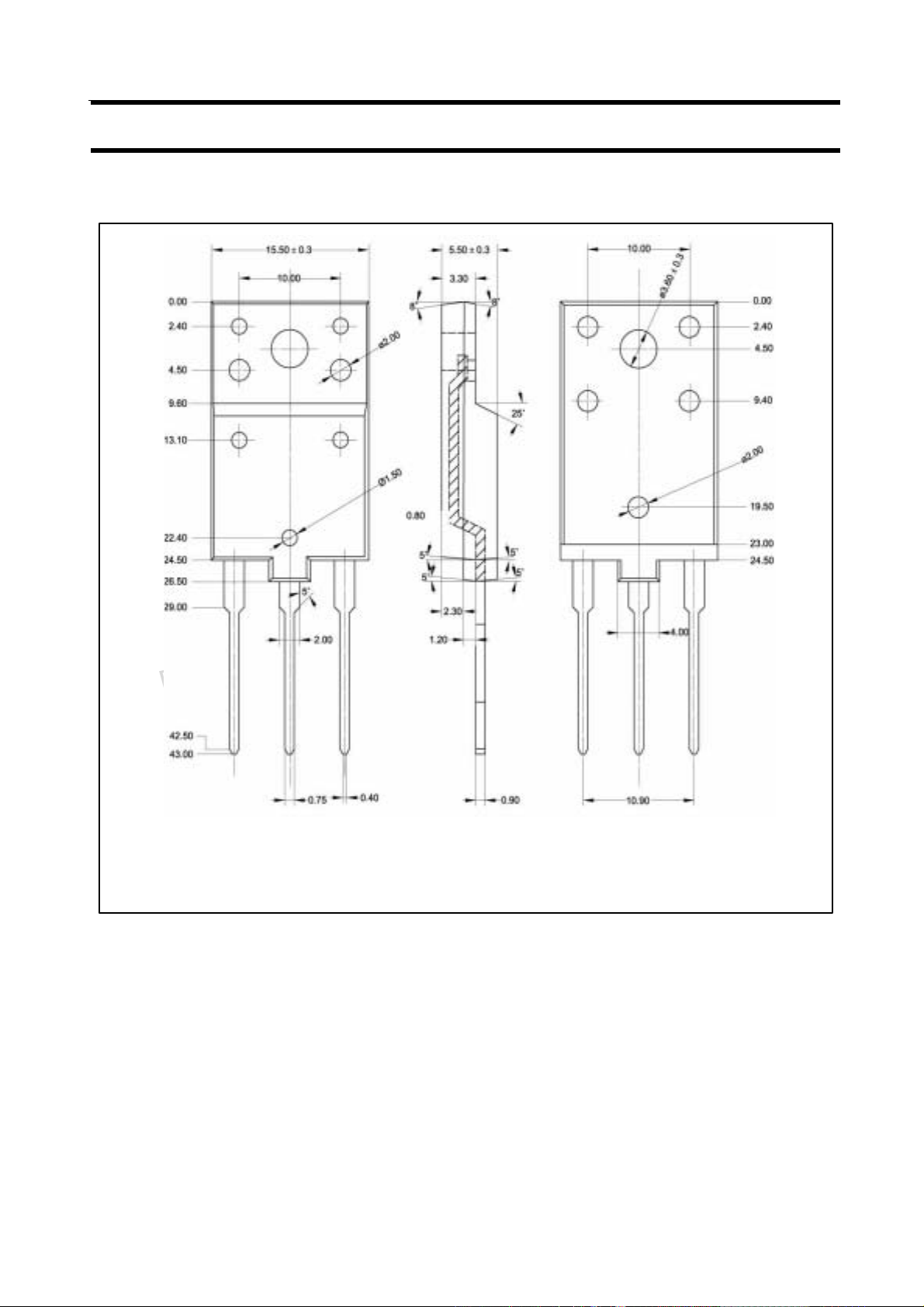

Fig.2 Outline dimensions (unindicated tolerance:±0.20 mm)
3
Page 4
固电半导体
INCHANGE SEMICONDUTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC5048
4
