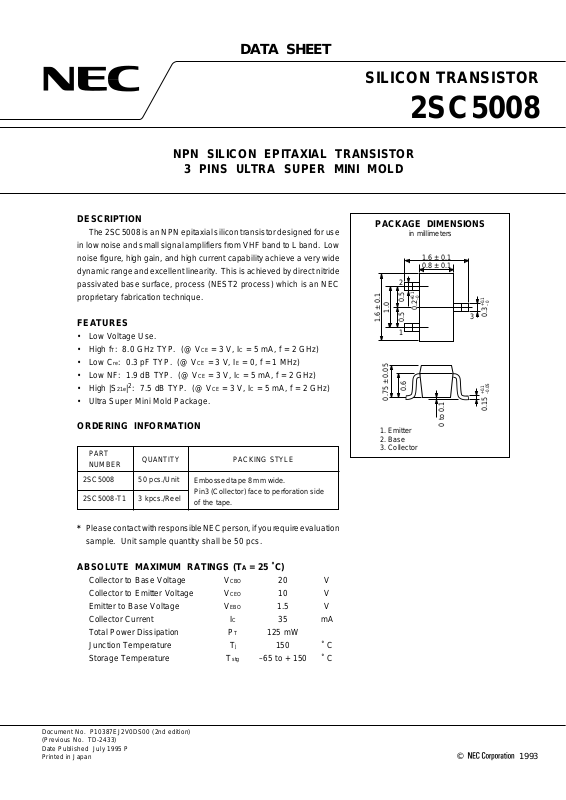

Page 1
©
1993
DATA SHEET
DESCRIPTION
The 2SC5008 is an NPN epitaxial silicon transistor designed for use
in low noise and small signal amplifiers from VHF band to L band. Low
noise figure, high gain, and high current capability achieve a very wide
dynamic range and excellent linearity. This is achieved by direct nitride
passivated base surface, process (NEST2 process) which is an NEC
proprietary fabrication technique.
FEATURES
• Low Voltage Use.
• High fT: 8.0 GHz TYP. (@ VCE = 3 V, IC = 5 mA, f = 2 GHz)
• Low Cre: 0.3 pF TYP. (@ VCE = 3 V, IE = 0, f = 1 MHz)
• Low NF: 1.9 dB TYP. (@ V
CE = 3 V, IC = 5 mA, f = 2 GHz)
• High |S21e|2: 7.5 dB TYP. (@ VCE = 3 V, IC = 5 mA, f = 2 GHz)
• Ultra Super Mini Mold Package.
ORDERING INFORMATION
PART
QUANTITY PACKING STYLE
NUMBER
2SC5008 50 pcs./Unit
2SC5008-T1 3 kpcs./Reel
* Please contact with responsible NEC person, if you require evaluation
sample. Unit sample quantity shall be 50 pcs.
ABSOLUTE MAXIMUM RATINGS (TA = 25 ˚C)
Collector to Base Voltage VCBO 20 V
Collector to Emitter Voltage VCEO 10 V
Emitter to Base Voltage V
EBO 1.5 V
Collector Current IC 35 mA
Total Power Dissipation PT 125 mW
Junction Temperature T
j 150 ˚ C
Storage Temperature Tstg –65 to + 150 ˚ C
SILICON TRANSISTOR
Document No. P10387EJ2V0DS00 (2nd edition)
(Previous No. TD-2433)
Date Published July 1995 P
Printed in Japan
2SC5008
NPN SILICON EPITAXIAL TRANSISTOR
3 PINS ULTRA SUPER MINI MOLD
Embossed tape 8 mm wide.
Pin3 (Collector) face to perforation side
of the tape.
1.6 ± 0.1
0.8 ± 0.1
1.6 ± 0.1
1.0
0.5 0.5
0.2
+0.1
–0
0.3
+0.1
–0
2
1
3
0.75 ± 0.05
0.6
0 to 0.1
0.15
+0.1
–0.05
PACKAGE DIMENSIONS
in millimeters
1. Emitter
2. Base
3. Collector
Page 2
2SC5008
2
ELECTRICAL CHARACTERISTICS (TA = 25 ˚C)
CHARACTERISTIC SYMBOL MIN. TYP. MAX. UNIT TEST CONDITIONS
Collector Cutoff Current ICBO 1.0
µ
AVCB = 10 V, IE = 0
Emitter Cutoff Current IEBO 1.0
µ
AVEB = 1 V, IC = 0
DC Current Gain hFE 80 160 VCE = 3 V, IC = 5 mA
*1
Gain Bandwidth Product fT 5.5 8.0 GHz VCE = 3 V, IC = 5 mA
Feed-back Capacitance Cre 0.3 0.7 pF VCB = 3 V, IE = 0, f = 1 MHz
*2
Insertion Power Gain |S21e|
2
5.5 7.5 dB VCE = 3 V, IC = 5 mA, f = 2 GHz
Noise Figure NF 1.9 3.2 dB VCE = 3 V, IC = 5 mA, f = 2 GHz
*1 Pulse Measurement PW ≤ 350 µs, Duty Cycle ≤ 2 %
*2 The emitter terminal and the case shall be connected to the guard terminal of the three-terminal capacitance
bridge.
h
FE Classification
RANK FB
Marking 44
hFE 80 to 160
Page 3
2SC5008
3
TYPICAL CHARACTERISTICS (TA = 25 ˚C)
20
0
10
1.00.5
150
0
50
15010050
100
200
0.5
10
505
25
0
510
20
15
10
5
V
CE = 3 V
IB = 160 A
µ
140 A
µ
120 A
µ
100 A
µ
80 A
µ
60 A
µ
40 A
µ
20 A
µ
201021
100
20
50
VCE = 3 V
0.5
0
505
12
0
0.5
8
6
4
2
201021
6
2
4
VCE = 3 V
f = 2 GH
Z
502010512
8
10
12
VCE = 3 V
f = 2 GH
Z
10
TOTAL POWER DISSIPATION vs.
AMBIENT TEMPERATURE
PT – Total Power Dissipation – mW
TA – Ambient Temperature – °C
COLLECTOR CURRENT vs.
BASE TO EMITTER VOLTAGE
COLLECTOR CURRENT vs.
COLLECTOR TO EMITTER VOLTAGE
DC CURRENT GAIN vs.
COLLECTOR CURRENT
GAIN BANDWIDTH PRODUCT vs.
COLLECTOR CURRENT
INSERTION POWER GAIN vs.
COLLECTOR CURRENT
IC – Collector Current – mAhFE – DC Current Gain
f
T – Gain Bandwidth Product – GHz
|S
21e|
2
– Insertion Power Gain – dB
I
C – Collector Current – mA
VBE – Base to Emitter Voltage – V
I
C – Collector Current – mAIC – Collector Current – mA
V
CE – Collector to Emitter Voltage – V IC – Collector Current – mA
Free Air
Page 4
2SC5008
4
25
0
5.00.5
3
0
1
502
2
2.0
1
250
1.0
0.5
0.2
0.1
V
CE
= 3 V
I
C
= 5 mA
2010510.5
20
15
10
5
0.1 0.2 1.0 2.0
MAG
|S
21e
|
2
51020
f = 1 MH
Z
VCE = 3 V
f = 2 GH
Z
C
re
– Feed-back Capacitance – pF

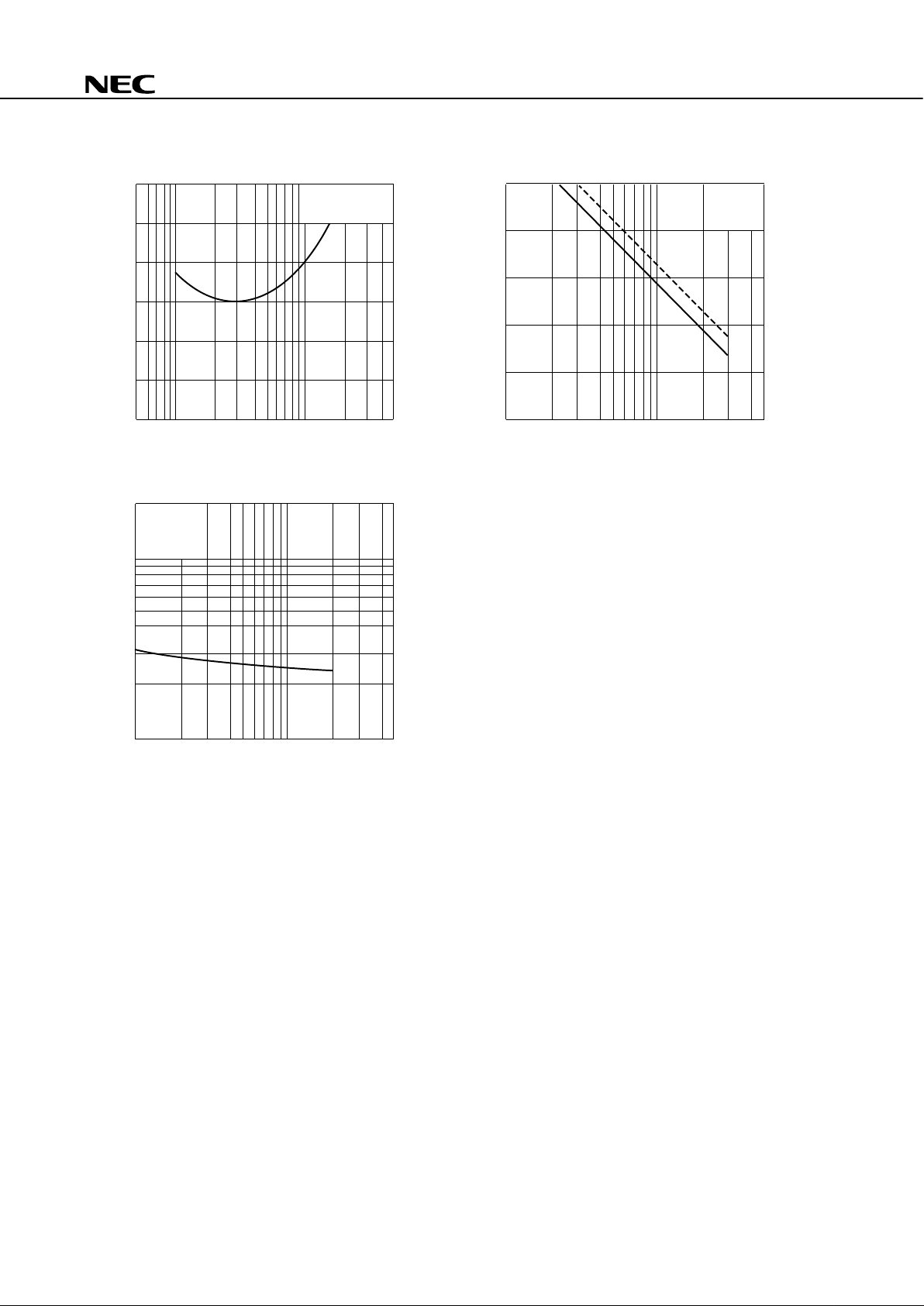

FEED-BACK CAPACITANCE vs.
COLLECTOR TO BASE VOLTAGE
NF – Noise Figure – dB
VCB – Collector to Base Voltage – V
I
C
– Collector Current – mA
NOISE FIGURE vs. COLLECTOR CURRENT
MAXIMUM AVAILABLE GAIN, INSERTION
POWER GAIN vs. FREQUENCY
MAG – Maximum Available Gain – dB
|S
21e
|
2
– Insertion Power Gain – dB
f – Frequency – GHz
Page 5
2SC5008
5
S-PARAMETER
VCE = 3 V, IC = 10 mA, ZO = 50 Ω
FREQUENCY S11 S21 S12 S22
MHz MAG ANG MAG ANG MAG ANG MAG ANG
100.00 .739 –23.1 15.190 151.5 .016 74.9 .922 –13.6
200.00 .617 –45.5 13.966 131.9 .027 63.0 .804 –22.2
300.00 .507 –64.6 12.474 115.9 .035 57.3 .699 –25.8
400.00 .414 –81.0 10.826 102.7 .042 51.8 .632 –27.3
500.00 .344 –94.7 9.421 91.8 .049 49.7 .583 –28.1
600.00 .296 –105.9 8.147 82.9 .055 47.0 .550 –28.1
700.00 .260 –116.6 7.211 74.9 .062 44.4 .525 –28.3
800.00 .236 –126.3 6.434 67.7 .068 41.8 .506 –28.7
900.00 .218 –136.2 5.806 60.9 .075 39.1 .490 –28.9
1000.00 .205 –144.8 5.288 54.6 .083 36.4 .477 –29.6
1100.00 .199 –153.1 4.864 48.6 .089 33.4 .466 –29.9
1200.00 .194 –161.6 4.500 42.7 .096 30.2 .457 –31.0
1300.00 .193 –168.9 4.191 37.0 .102 27.7 .449 –31.7
1400.00 .194 –175.6 3.908 31.4 .111 24.2 .441 –32.8
1500.00 .196 178.7 3.680 26.2 .118 21.0 .435 –33.9
1600.00 .202 173.5 3.489 20.7 .125 17.6 .429 –35.5
1700.00 .214 167.9 3.317 15.0 .133 12.6 .417 –37.2
1800.00 .222 161.7 3.154 9.6 .139 9.4 .406 –38.2
1900.00 .229 156.3 2.994 4.2 .145 6.0 .397 –39.4
2000.00 .237 151.7 2.857 –1.0 .152 2.6 .390 –40.5
2100.00 .246 147.5 2.748 –6.1 .159 –.9 .381 –42.1
2200.00 .253 144.6 2.626 –11.1 .167 –4.6 .374 –43.6
2300.00 .263 140.9 2.539 –16.2 .174 –8.0 .366 –45.2
2400.00 .271 137.9 2.445 –21.3 .182 –11.6 .357 –46.8
2500.00 .283 134.8 2.363 –26.3 .190 –15.2 .347 –48.4
2600.00 .292 132.0 2.288 –31.4 .197 –19.2 .338 –50.6
2700.00 .303 129.7 2.218 –36.4 .204 –22.9 .328 –52.5
2800.00 .315 127.4 2.147 –41.4 .211 –26.7 .318 –54.8
2900.00 .326 125.0 2.085 –46.3 .220 –30.8 .309 –56.9
3000.00 .339 122.7 2.032 –51.2 .227 –34.2 .299 –59.5
VCE = 3 V, IC = 7 mA, ZO = 50 Ω
FREQUENCY S11 S21 S12 S22
MHz MAG ANG MAG ANG MAG ANG MAG ANG
100.00 .815 –17.7 11.972 155.6 .016 77.0 .947 –11.5
200.00 .732 –34.0 11.228 138.4 .029 63.4 .855 –20.4
300.00 .634 –50.1 10.480 123.5 .039 56.1 .757 –25.1
400.00 .539 –64.9 9.549 110.7 .047 51.8 .687 –27.9
500.00 .455 –78.9 8.722 99.0 .054 47.4 .630 –29.6
600.00 .392 –89.6 7.703 89.1 .060 44.0 .589 –30.5
700.00 .336 –100.4 6.951 80.3 .066 41.4 .557 –30.9
800.00 .297 –110.0 6.265 72.2 .073 38.5 .532 –31.5
900.00 .268 –119.5 5.700 64.9 .079 35.8 .511 –31.9
1000.00 .244 –128.0 5.221 58.3 .086 32.7 .494 –32.5
1100.00 .228 –136.6 4.802 51.8 .092 29.7 .480 –32.9
1200.00 .216 –145.2 4.479 45.5 .098 27.4 .468 –33.8
1300.00 .208 –153.4 4.169 39.6 .106 24.0 .459 –34.4
1400.00 .203 –160.8 3.900 33.9 .113 21.1 .449 –35.6
1500.00 .202 –167.7 3.674 28.2 .121 17.5 .440 –36.6
1600.00 .205 –173.8 3.478 22.7 .128 14.3 .433 –37.8
1700.00 .214 179.6 3.316 17.3 .135 10.2 .421 –39.7
1800.00 .219 172.5 3.153 11.6 .141 6.4 .409 –40.7
1900.00 .223 165.7 3.001 6.0 .146 3.5 .399 –41.7
2000.00 .230 160.0 2.874 .7 .153 0.0 .391 –43.0
2100.00 .236 155.4 2.753 –4.6 .160 –3.2 .382 –44.4
2200.00 .244 151.6 2.631 –9.6 .167 –6.9 .374 –45.7
2300.00 .254 147.1 2.548 –14.9 .174 –10.4 .365 –47.2
2400.00 .262 143.5 2.453 –20.0 .181 –13.8 .356 –49.0
2500.00 .273 140.2 2.370 –25.0 .189 –17.4 .346 –50.5
2600.00 .281 137.1 2.295 –30.2 .196 –21.0 .337 –52.7
2700.00 .293 134.1 2.228 –35.2 .203 –24.9 .328 –54.6
2800.00 .303 131.4 2.156 –40.2 .211 –28.3 .317 –56.7
2900.00 .315 128.6 2.092 –45.2 .218 –32.3 .307 –58.8
3000.00 .326 126.2 2.040 –50.1 .227 –36.1 .298 –61.4
Page 6
2SC5008
6
S-PARAMETER
VCE = 3 V, IC = 5 mA, ZO = 50 Ω
FREQUENCY S11 S21 S12 S22
MHz MAG ANG MAG ANG MAG ANG MAG ANG
100.00 .870 –13.9 9.067 158.8 .017 76.2 .964 –9.7
200.00 .809 –27.3 8.687 143.1 .031 65.8 .897 –17.8
300.00 .733 –40.3 8.368 129.3 .042 58.0 .814 –23.3
400.00 .661 –53.0 7.864 117.5 .052 51.2 .748 –27.0
500.00 .575 –66.1 7.479 106.3 .059 45.9 .687 –29.5
600.00 .510 –76.2 6.765 96.3 .066 41.4 .643 –31.2
700.00 .440 –87.2 6.297 86.6 .072 38.2 .604 –32.3
800.00 .387 –96.8 5.812 77.7 .078 34.7 .574 –33.3
900.00 .345 –106.1 5.365 69.7 .083 32.7 .547 –33.9
1000.00 .309 –114.9 4.964 62.4 .090 29.2 .527 –34.7
1100.00 .283 –123.3 4.616 55.4 .096 25.9 .509 –35.2
1200.00 .261 –131.9 4.298 49.0 .101 23.0 .493 –36.1
1300.00 .246 –139.7 4.032 42.4 .107 20.4 .481 –36.7
1400.00 .234 –147.4 3.784 36.7 .115 17.1 .471 –37.8
1500.00 .227 –154.7 3.568 30.8 .122 14.2 .460 –38.9
1600.00 .227 –161.3 3.385 25.0 .129 11.2 .450 –40.2
1700.00 .231 –168.9 3.230 19.1 .137 7.1 .438 –41.9
1800.00 .231 –176.7 3.069 13.5 .141 3.4 .425 –42.8
1900.00 .233 176.3 2.929 7.8 .148 .7 .413 –44.0
2000.00 .237 169.5 2.802 2.3 .153 –2.4 .405 –45.2
2100.00 .242 163.9 2.690 –3.0 .159 –6.1 .396 –46.5
2200.00 .247 159.4 2.583 –8.3 .166 –9.3 .387 –48.0
2300.00 .256 154.3 2.495 –13.6 .173 –12.8 .377 –49.5
2400.00 .264 150.1 2.404 –18.8 .179 –16.2 .367 –51.1
2500.00 .274 146.2 2.324 –23.9 .187 –19.3 .358 –52.7
2600.00 .282 142.3 2.251 –29.2 .194 –23.3 .348 –54.8
2700.00 .292 139.2 2.188 –34.3 .200 –26.9 .339 –56.8
2800.00 .303 135.9 2.117 –39.4 .207 –30.2 .328 –59.0
2900.00 .313 132.9 2.056 –44.5 .215 –34.1 .319 –60.9
3000.00 .325 130.0 2.003 –49.5 .223 –37.5 .309 –63.5
VCE = 3 V, IC = 3 mA, ZO = 50 Ω
FREQUENCY S11 S21 S12 S22
MHz MAG ANG MAG ANG MAG ANG MAG ANG
100.00 .936 –10.5 5.612 163.6 .017 79.6 .981 –7.1
200.00 .892 –20.4 5.628 148.9 .034 69.7 .944 –14.0
300.00 .842 –30.5 5.602 136.8 .048 60.6 .887 –19.3
400.00 .785 –41.2 5.393 126.0 .060 53.2 .837 –23.7
500.00 .732 –50.8 5.328 116.2 .069 46.4 .782 –27.2
600.00 .681 –59.2 4.924 106.6 .077 40.6 .740 –29.9
700.00 .618 –68.7 4.767 97.2 .084 35.8 .698 –32.0
800.00 .564 –77.9 4.575 88.0 .090 31.0 .663 –33.9
900.00 .510 –86.9 4.365 79.4 .094 27.0 .627 –35.2
1000.00 .459 –96.0 4.191 70.9 .100 23.5 .599 –36.5
1100.00 .413 –104.8 3.991 62.9 .106 19.8 .577 –37.5
1200.00 .375 –113.0 3.790 55.7 .110 17.1 .558 –38.5
1300.00 .350 –120.8 3.588 48.7 .116 14.2 .542 –39.6
1400.00 .325 –128.3 3.410 42.0 .121 11.1 .525 –40.8
1500.00 .307 –135.8 3.234 35.7 .126 7.8 .513 –41.8
1600.00 .295 –142.9 3.086 29.5 .134 4.9 .499 –43.2
1700.00 .289 –150.9 2.960 23.3 .140 1.0 .486 –44.8
1800.00 .283 –158.6 2.830 17.0 .143 –2.7 .471 –46.0
1900.00 .276 –166.4 2.707 11.2 .148 –5.6 .457 –47.1
2000.00 .273 –174.1 2.597 5.4 .153 –8.5 .448 –48.4
2100.00 .273 179.6 2.504 –.3 .159 –11.6 .435 –49.8
2200.00 .275 174.0 2.405 –5.9 .164 –14.4 .428 –51.3
2300.00 .280 167.8 2.332 –11.5 .170 –17.9 .417 –52.7
2400.00 .284 162.6 2.248 –16.9 .176 –20.9 .406 –54.2
2500.00 .292 157.7 2.177 –22.2 .182 –23.8 .396 –55.9
2600.00 .298 152.8 2.109 –27.6 .187 –27.3 .386 –57.9
2700.00 .307 148.7 2.051 –32.9 .194 –30.7 .376 –59.9
2800.00 .316 144.7 1.988 –38.1 .200 –33.8 .366 –61.8
2900.00 .326 140.9 1.934 –43.4 .207 –37.3 .356 –64.0
3000.00 .337 137.3 1.885 –48.6 .214 –40.5 .346 –66.6
Page 7
2SC5008
7
S-PARAMETER
VCE = 3 V, IC = 1 mA, ZO = 50 Ω
FREQUENCY S11 S21 S12 S22
MHz MAG ANG MAG ANG MAG ANG MAG ANG
100.00 .986 –6.4 1.963 167.5 .019 82.2 .996 –4.0
200.00 .971 –13.0 2.022 157.2 .036 73.4 .987 –8.1
300.00 .958 –19.5 2.075 147.4 .053 66.7 .966 –11.8
400.00 .936 –26.5 2.082 137.6 .070 58.7 .953 –15.4
500.00 .914 –32.8 2.114 129.5 .084 52.1 .929 –18.7
600.00 .890 –39.0 2.011 120.8 .098 45.0 .909 –22.0
700.00 .859 –45.3 1.993 112.4 .109 38.5 .883 –24.9
800.00 .833 –51.7 1.967 103.7 .120 32.1 .859 –27.7
900.00 .801 –58.0 1.916 95.7 .127 25.8 .830 –30.5
1000.00 .769 –65.2 1.952 88.0 .137 20.2 .803 –33.0
1100.00 .732 –72.5 1.972 79.8 .143 14.4 .776 –35.0
1200.00 .693 –80.0 1.987 72.4 .148 9.7 .754 –37.1
1300.00 .663 –86.7 1.945 64.6 .154 4.5 .734 –39.0
1400.00 .626 –93.9 1.936 57.2 .157 –.1 .712 –41.1
1500.00 .596 –100.5 1.893 49.6 .162 –4.4 .693 –42.9
1600.00 .570 –107.2 1.852 42.8 .165 –8.3 .676 –44.6
1700.00 .542 –114.9 1.845 35.3 .170 –12.9 .660 –46.5
1800.00 .523 –121.5 1.786 28.6 .172 –17.5 .640 –48.3
1900.00 .497 –129.1 1.766 21.5 .174 –21.5 .622 –49.9
2000.00 .471 –137.3 1.746 14.6 .174 –25.3 .610 –51.7
2100.00 .456 –144.2 1.707 8.2 .174 –28.5 .595 –53.3
2200.00 .443 –151.0 1.661 1.6 .176 –31.9 .583 –55.0
2300.00 .430 –158.3 1.648 –4.8 .177 –35.1 .567 –56.8
2400.00 .424 –164.8 1.598 –10.9 .178 –38.1 .557 –58.6
2500.00 .419 –171.3 1.565 –17.0 .180 –40.5 .545 –60.5
2600.00 .414 –177.8 1.534 –23.1 .182 –43.6 .534 –62.6
2700.00 .412 176.4 1.504 –29.1 .183 –46.5 .523 –64.6
2800.00 .413 170.5 1.466 –34.9 .186 –48.7 .515 –66.9
2900.00 .414 164.7 1.442 –40.6 .189 –51.4 .504 –69.2
3000.00 .419 159.5 1.413 –46.3 .191 –53.5 .495 –71.7
VCE = 1 V, IC = 5 mA, ZO = 50 Ω
FREQUENCY S11 S21 S12 S22
MHz MAG ANG MAG ANG MAG ANG MAG ANG
100.00 .849 –19.1 8.397 156.6 .021 75.5 .949 –11.9
200.00 .764 –34.1 8.259 139.2 .037 63.8 .866 –21.8
300.00 .681 –49.1 7.901 125.1 .051 54.8 .767 –28.2
400.00 .612 –63.6 7.397 113.1 .060 48.4 .689 –32.3
500.00 .534 –78.0 7.006 101.8 .068 42.2 .623 –35.2
600.00 .473 –89.5 6.297 91.7 .076 38.7 .573 –37.0
700.00 .414 –101.5 5.833 82.2 .082 35.3 .531 –38.1
800.00 .371 –112.1 5.352 73.6 .089 31.9 .499 –39.2
900.00 .339 –122.2 4.924 65.7 .095 28.7 .472 –39.9
1000.00 .314 –131.4 4.557 58.5 .103 25.6 .448 –40.9
1100.00 .295 –140.2 4.219 51.6 .109 22.8 .429 –41.2
1200.00 .283 –148.3 3.935 45.2 .115 20.1 .414 –42.2
1300.00 .275 –156.2 3.672 38.8 .122 16.9 .398 –42.8
1400.00 .270 –163.3 3.448 32.9 .129 13.8 .385 –44.0
1500.00 .267 –170.3 3.242 26.9 .136 10.7 .374 –45.0
1600.00 .268 –176.4 3.081 21.1 .143 7.5 .362 –46.4
1700.00 .273 177.8 2.927 15.4 .153 3.9 .353 –47.9
1800.00 .280 172.2 2.783 9.6 .160 –.1 .340 –49.5
1900.00 .288 165.8 2.663 3.9 .165 –3.8 .326 –51.1
2000.00 .294 160.1 2.540 –1.7 .171 –6.8 .316 –52.2
2100.00 .301 155.4 2.445 –7.0 .177 –10.1 .304 –53.7
2200.00 .307 151.6 2.347 –12.4 .186 –13.8 .293 –55.4
2300.00 .317 147.3 2.260 –17.8 .192 –17.2 .284 –57.0
2400.00 324 143.6 2.177 –23.0 .199 –20.8 .272 –58.9
2500.00 .334 140.2 2.105 –28.2 .207 –23.9 .261 –60.8
2600.00 .345 137.0 2.037 –33.5 .214 –27.8 .251 –63.7
2700.00 .354 134.0 1.977 –38.6 .221 –31.4 .241 –65.9
2800.00 .365 131.0 1.913 –43.8 .228 –35.3 .230 –68.6
2900.00 .377 128.2 1.856 –48.9 .235 –39.0 .220 –71.2
3000.00 .387 125.5 1.808 –53.8 .244 –42.9 .210 –74.5
Page 8
2SC5008
8
S-PARAMETER
VCE = 1 V, IC = 3 mA, ZO = 50 Ω
FREQUENCY S11 S21 S12 S22
MHz MAG ANG MAG ANG MAG ANG MAG ANG
100.00 .928 –11.2 5.570 160.2 .022 78.7 .974 –8.7
200.00 .876 –22.9 5.562 146.9 .040 67.5 .928 –16.9
300.00 .821 –34.2 5.509 134.3 .057 57.4 .859 –23.0
400.00 .758 –45.7 5.289 123.2 .070 49.7 .798 –28.0
500.00 .705 –56.7 5.198 113.1 .081 43.3 .738 –32.0
600.00 .652 –66.1 4.787 103.2 .089 37.0 .689 –35.2
700.00 .588 –76.8 4.617 93.6 .097 31.9 .640 –37.5
800.00 .535 –87.1 4.406 84.1 .103 27.6 .601 –39.4
900.00 .484 –97.1 4.187 75.5 .108 23.9 .565 –41.0
1000.00 .438 –107.0 3.986 67.1 .115 20.3 .533 –42.6
1100.00 .401 –116.3 3.771 59.1 .120 16.5 .508 –43.6
1200.00 .371 –125.4 3.566 51.8 .125 13.4 .486 –44.7
1300.00 .350 –133.4 3.362 44.8 .131 10.3 .468 –45.7
1400.00 .333 –141.3 3.177 38.3 .137 7.0 .449 –47.2
1500.00 .320 –148.7 3.015 31.8 .143 4.1 .436 –48.3
1600.00 .312 –156.1 2.872 25.8 .149 1.1 .421 –49.7
1700.00 .310 –162.9 2.745 19.5 .157 –2.5 .408 –51.4
1800.00 .310 –170.2 2.623 13.4 .162 –6.5 .391 –52.9
1900.00 .309 –177.5 2.514 7.3 .165 –9.7 .377 –54.2
2000.00 .310 175.4 2.407 1.4 .171 –12.7 .366 –55.5
2100.00 .313 169.8 2.318 –4.2 .177 –16.1 .351 –57.2
2200.00 .317 164.9 2.227 –9.8 .182 –19.1 .343 –58.5
2300.00 .324 159.5 2.157 –15.4 .188 –22.3 .330 –60.4
2400.00 .331 155.0 2.076 –20.8 .194 –25.6 .319 –62.2
2500.00 .338 150.6 2.012 –26.2 .200 –28.8 .307 –64.1
2600.00 .346 146.5 1.947 –31.7 .207 –32.4 .296 –66.8
2700.00 .356 142.6 1.894 –36.9 .213 –35.6 .285 –69.0
2800.00 .365 139.0 1.833 –42.3 .220 –39.1 .274 –71.8
2900.00 .375 135.7 1.782 –47.5 .226 –42.7 .265 –74.3
3000.00 .386 132.4 1.737 –52.7 .234 –46.1 .254 –77.2
VCE = 1 V, IC = 1 mA, ZO = 50 Ω
FREQUENCY S11 S21 S12 S22
MHz MAG ANG MAG ANG MAG ANG MAG ANG
100.00 .983 –6.8 1.986 166.5 .022 83.1 .993 –4.6
200.00 .968 –14.0 2.016 156.0 .044 73.1 .983 –9.3
300.00 .952 –21.0 2.067 145.7 .064 65.2 .959 –13.6
400.00 .925 –28.5 2.064 135.9 .083 56.7 .942 –17.7
500.00 .904 –35.3 2.096 127.1 .100 49.8 .913 –21.6
600.00 .878 –41.8 1.992 118.1 .116 42.7 .889 –25.2
700.00 .844 –48.6 1.971 109.4 .129 35.5 .859 –28.5
800.00 .816 –55.6 1.945 100.6 .141 28.7 .829 –31.7
900.00 .782 –62.3 1.900 92.3 .151 22.5 .795 –34.8
1000.00 .749 –69.9 1.926 84.3 .159 16.3 .765 –37.4
1100.00 .709 –77.8 1.940 76.0 .166 11.1 .736 –39.7
1200.00 .673 –85.8 1.952 68.2 .172 5.8 .709 –42.0
1300.00 .639 –92.8 1.904 60.4 .178 .8 .686 –44.2
1400.00 .606 –100.6 1.889 52.8 .182 –3.9 .661 –46.3
1500.00 .578 –107.5 1.837 45.2 .185 –8.9 .641 –48.2
1600.00 .551 –114.6 1.801 38.0 .189 –12.8 .621 –50.2
1700.00 .526 –122.6 1.782 30.7 .195 –17.6 .603 –52.2
1800.00 .509 –129.5 1.727 23.8 .196 –22.3 .582 –54.4
1900.00 .487 –137.3 1.702 16.9 .196 –26.3 .562 –56.1
2000.00 .466 –145.4 1.674 9.8 .198 –30.1 .548 –57.9
2100.00 .454 –152.5 1.637 3.4 .198 –33.7 .530 –59.6
2200.00 .446 –159.2 1.590 –3.1 .199 –36.9 .519 –61.7
2300.00 .437 –166.3 1.571 –9.5 .200 –40.5 .502 –63.5
2400.00 .433 –172.8 1.520 –15.7 .201 –43.8 .490 –65.7
2500.00 .430 –179.0 1.488 –21.7 .201 –46.5 .477 –67.7
2600.00 .429 174.8 1.459 –27.8 .203 –49.3 .466 –70.0
2700.00 .429 169.2 1.425 –33.7 .204 –52.3 .453 –72.4
2800.00 .433 163.8 1.390 –39.5 .206 –55.1 .443 –75.1
2900.00 .437 158.6 1.363 –45.3 .208 –57.9 .431 –77.5
3000.00 .443 153.5 1.336 –50.9 .211 –60.2 .421 –80.5
Page 9
2SC5008
9
[MEMO]
Page 10
2
2SC5008
No part of this document may be copied or reproduced in any form or by any means without the prior written
consent of NEC Corporation. NEC Corporation assumes no responsibility for any errors which may appear in this
document.
NEC Corporation does not assume any liability for infringement of patents, copyrights or other intellectual
property rights of third parties by or arising from use of a device described herein or any other liability arising
from use of such device. No license, either express, implied or otherwise, is granted under any patents,
copyrights or other intellectual property rights of NEC Corporation or others.
While NEC Corporation has been making continuous effort to enhance the reliability of its semiconductor devices,
the possibility of defects cannot be eliminated entirely. To minimize risks of damage or injury to persons or
property arising from a defect in an NEC semiconductor device, customer must incorporate sufficient safety
measures in its design, such as redundancy, fire-containment, and anti-failure features.
NEC devices are classified into the following three quality grades:
“Standard“, “Special“, and “Specific“. The Specific quality grade applies only to devices developed based on
a customer designated “quality assurance program“ for a specific application. The recommended applications
of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each
device before using it in a particular application.
Standard: Computers, office equipment, communications equipment, test and measurement equipment,
audio and visual equipment, home electronic appliances, machine tools, personal electronic
equipment and industrial robots
Special: Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support)
Specific: Aircrafts, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems or medical equipment for life support, etc.
The quality grade of NEC devices in “Standard“ unless otherwise specified in NEC's Data Sheets or Data Books.
If customers intend to use NEC devices for applications other than those specified for Standard quality grade,
they should contact NEC Sales Representative in advance.
Anti-radioactive design is not implemented in this product.
M4 94.11
[MEMO]
Loading...
