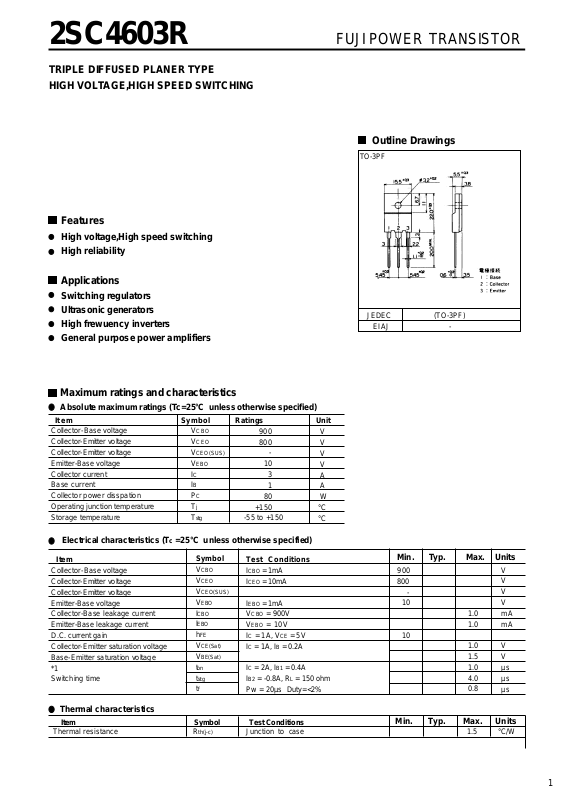

Page 1
2SC4603R
TRIPLE DIFFUSED PLANER TYPE
HIGH VOLTAGE,HIGH SPEED SWITCHING
Features
High voltage,High speed switching
High reliability
Applications
Switching regulators
Ultrasonic generators
High frewuency inverters
General purpose power amplifiers
FUJI POWER TRANSISTOR
Outline Drawings
TO-3PF
JEDEC (TO-3PF)
EIAJ -
Maximum ratings and characteristics
Absolute maximum ratings (Tc=25°C unless otherwise specified)
Item Symbol Ratings Unit
Collector-Base voltage VCBO
Collector-Emitter voltage VCEO
Collector-Emitter voltage VCEO(SUS)
Emitter-Base voltage VEBO
Collector current IC
Base current IB
Collector power disspation PC
Operating junction temperature Tj
Storage temperature Tstg
Electrical characteristics (Tc =25°C unless otherwise specified)
Item
Collector-Base voltage
Collector-Emitter voltage
Collector-Emitter voltage
Emitter-Base voltage
Collector-Base leakage current
Emitter-Base leakage current
D.C. current gain
Collector-Emitter saturation voltage
Base-Emitter saturation voltage
*1
Switching time
Symbol
VCBO
VCEO
VCEO(SUS)
VEBO
ICBO
IEBO
hFE
VCE(Sat)
VBE(Sat)
ton
tstg
tf
900
800
-
10
3
1
80
+150
-55 to +150
Test Conditions
ICBO = 1mA
ICEO = 10mA
IEBO = 1mA
VCBO = 900V
VEBO = 10V
IC = 1A, VCE = 5V
IC = 1A, IB = 0.2A
IC = 2A, IB1 = 0.4A
IB2 = -0.8A, RL = 150 ohm
Pw = 20µs Duty=<2%
V
V
V
V
A
A
W
°C
°C
Min. Typ. Max. Units
900
800
-
10
1.0
1.0
10
1.0
1.5
1.0
4.0
0.8
V
V
V
V
mA
mA
V
V
µs
µs
µs
Thermal characteristics
Item Symbol Test Conditions
Thermal resistance
Rth(j-c) Junction to case
Min. Typ. Max. Units
1.5 °C/W
1
Page 2
2SC4603R
Characteristics
Collector-Emitter voltage VCE[V]
FUJI POWER TRANSISTOR
D.C. current gain hFE
Base current IB[A]
Collector Output Characteristics
Saturation voltage VCE(sat), VBE(sat)[V]
Collector current IC[A]
Base and Collector Saturation Voltage
Collector current IC[A]
DC Current Gain
Collector current IC[A]
Collector-Emitter voltage VCE[V]
Safe Operating Area
Collector current IC[A]
Collector-Emitter voltage VCE[V]
Reverse Biased Safe Operating Area
Switching time ton, tstg, tf [µs]
Collector current IC[A]
Switching Time
2
Page 3
2SC4603R
Characteristics
Derating [%]
FUJI POWER TRANSISTOR
Case temperature Tc [°C]
ASO Derating
Thermal resistance Rth(j-c) [°C/W]
time [ms]
Transient Thermal Resistance
3
