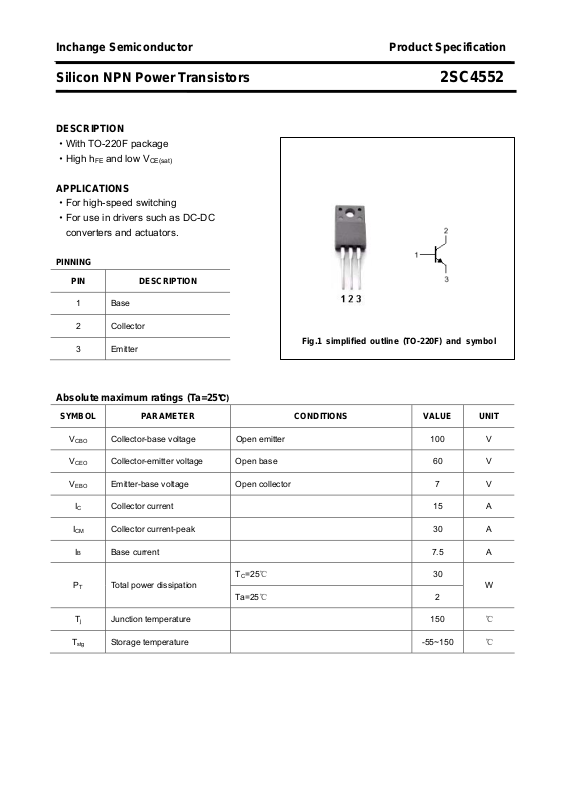

Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC4552
DESCRIPTION
·With TO-220F package
·High h
and low V
FE
APPLICATIONS
·For high-speed switching
·For use in drivers such as DC-DC
converters and actuators.
PINNING
PIN DESCRIPTION
CE(sat)
1
2 Collector
3 Emitter
Base

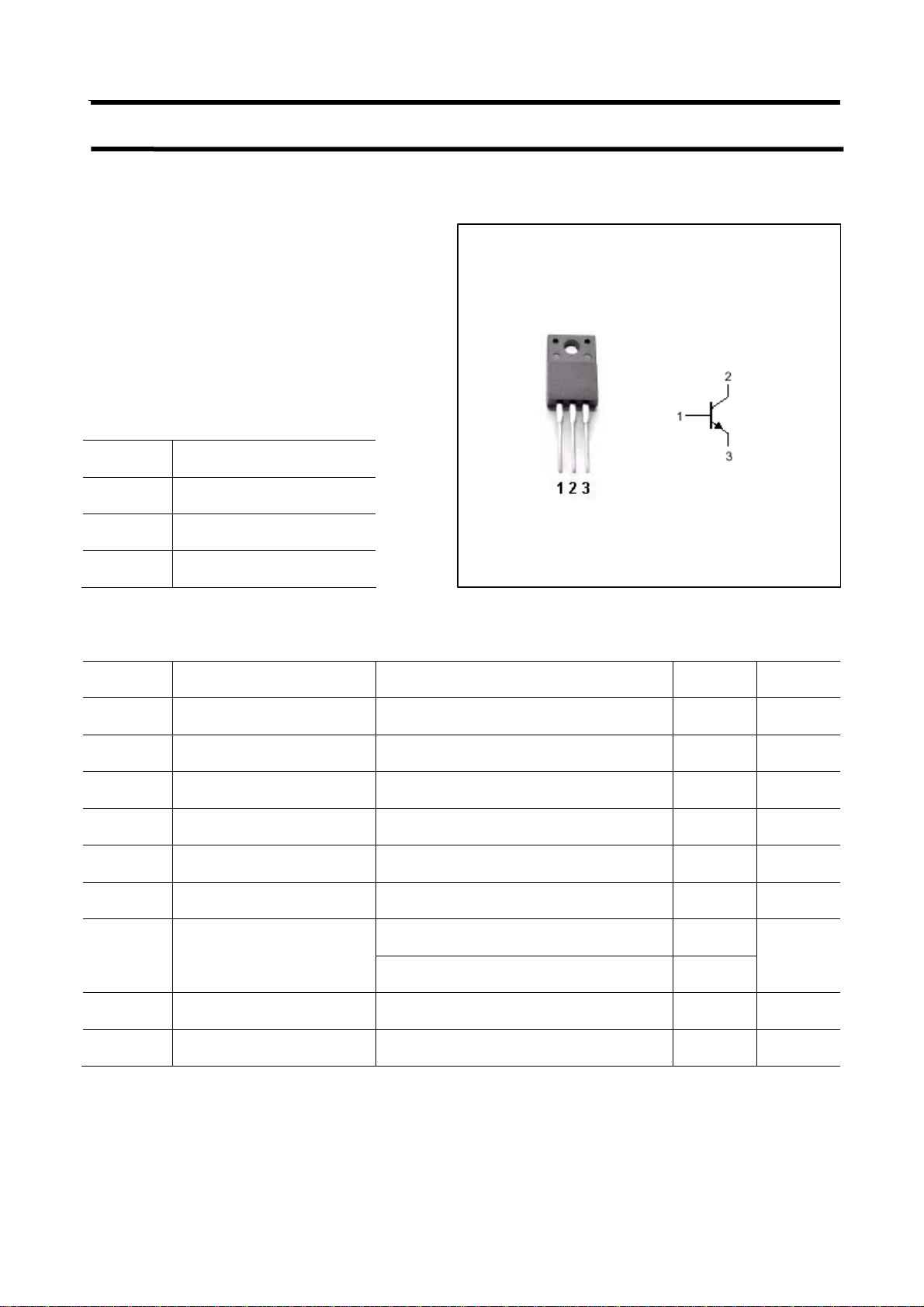

Fig.1 simplified outline (TO-220F) and symbol
Absolute maximum ratings (Ta=25℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current 15 A
ICM Collector current-peak 30 A
IB Base current 7.5 A
PT Total power dissipation
Collector-base voltage Open emitter 100 V
Collector-emitter voltage Open base 60 V
Emitter-base voltage Open collector 7 V
TC=25℃
Ta =2 5℃
30
W
2
Tj Junction temperature 150
T
Storage temperature -55~150
stg
℃
℃
Page 2
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC4552
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
CEO(SUS)
V
CE(sat)1
V
CE(sat)2
V
BE(sat)1
V
BE(sat)2
I
CBO
I
CER
I
CEX1
I
CEX2
I
EBO
h
FE-1
h
FE-2
h
FE-3
Collector-emitter sustaining voltage IC=8A; IB=0.8A;L=1mH 60 V
Collector-emitter saturation voltage IC=8A ; IB=0.4A 0.3 V
Collector-emitter saturation voltage IC=12A ; IB=0.6A 0.5 V
Base-emitter saturation voltage IC=8A ; IB=0.4A 1.2 V
Base-emitter saturation voltage IC=12A ; IB=0.6A 1.5 V
Collector cut-off current VCB=60V;IE=0 10
μA
Collector cut-off current VCB=60V;RBE=50Ω;Ta=125°C 1.0 mA
Collector cut-off current VCB=60V; VBE=-1.5V 10
μA
Collector cut-off current VCB=60V; VBE=-1.5V;Ta=125°C 1.0 mA
Emitter cut-off current VEB=5V;IC=0 10
μA
DC current gain IC=1.5A ; VCE=2V 100
DC current gain IC=3.0A ; VCE=2V 100 400
DC current gain IC=8.0A ; VCE=2V 60
Cob Collector capacitance VCB=10V;IE=0;f=1.0MHz 180 pF
fT Transition frequency IC=1.5A ; VCE=10V 120 MHz
Switching times
ton Turn-on time 0.3
ts Storage time 1.5
tf Fall time
IC=8.0A; IB1=-IB2=0.4A
=50V ,RL=6.3Ω
V
CC
0.3
μs
μs
μs
h
Classifications
FE-2
M L K
100-120 150-300 200-400
2
Page 3
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC4552

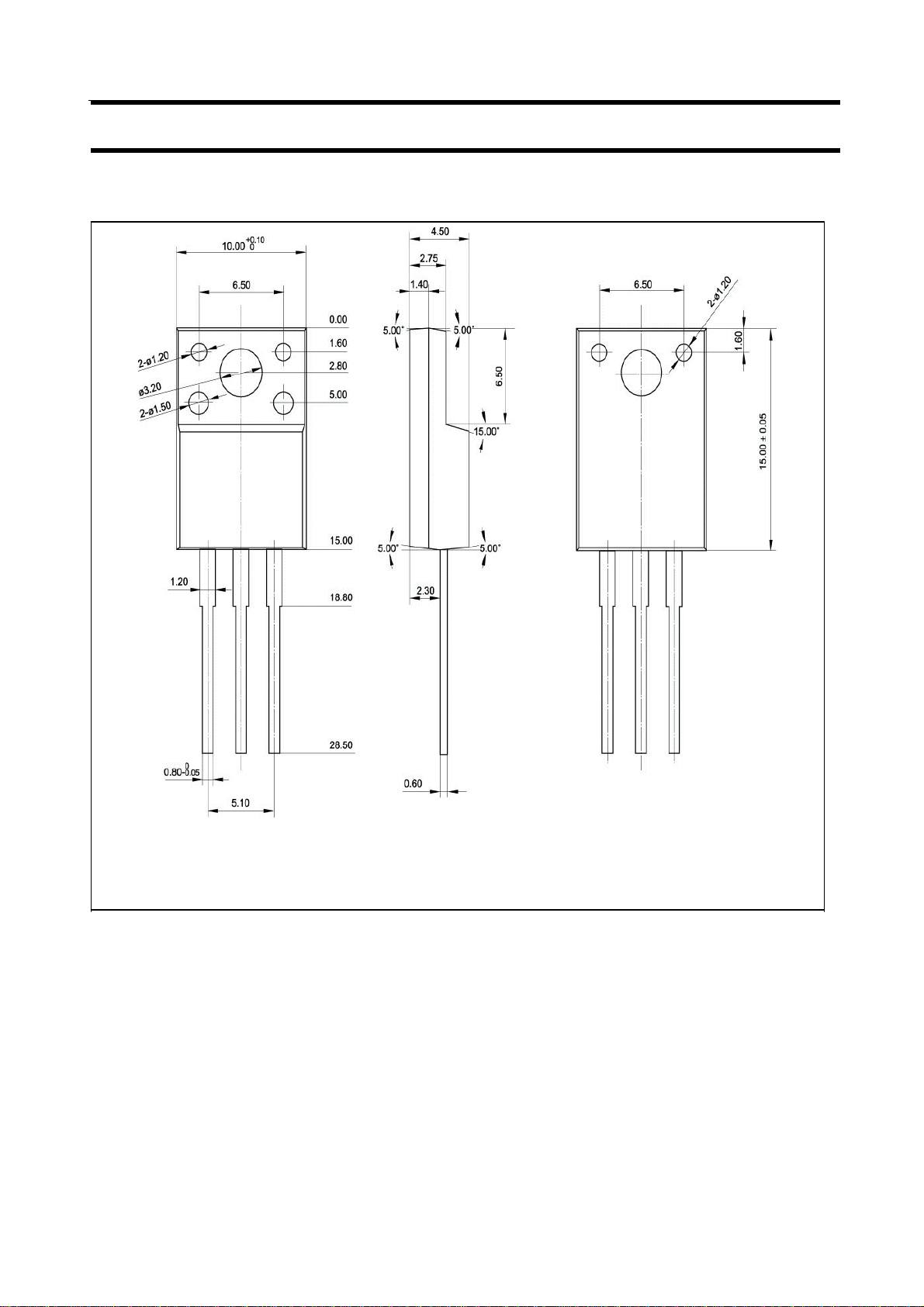

PACKAGE OUTLINE
Fig.2 Outline dimensions
3
Page 4

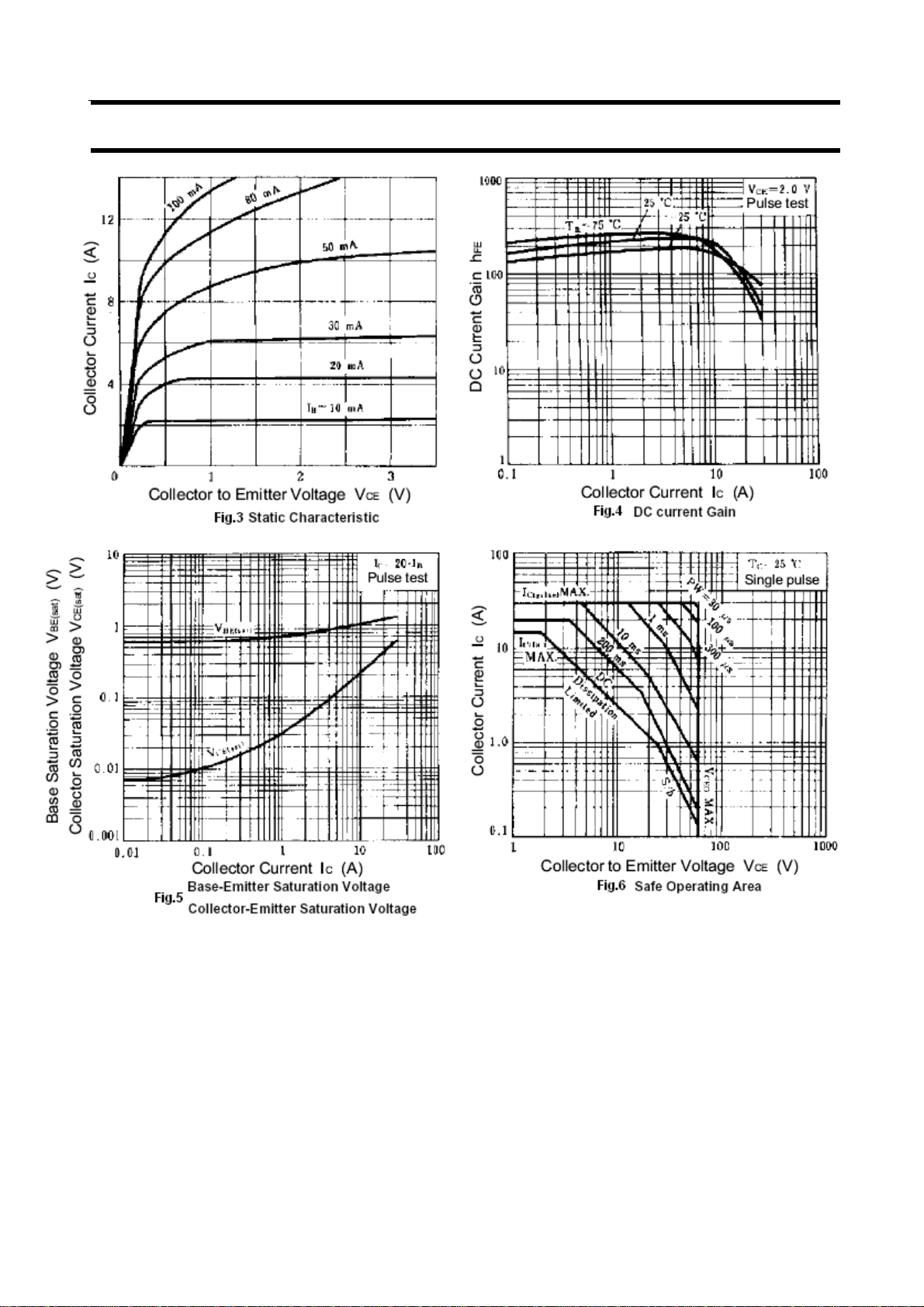

Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC4552
4
