2SC4500(L)/(S)
Silicon NPN Epitaxial
Application
Low frequency amplifier
Outline
4
1
2
3
4
3
2
1
1. Base
2. Collector
3. Emitter
4. Collector
DPAK
S Type
L Type
1
2, 4
3
Page 2
2SC4500(L)/(S)
2
Absolute Maximum Ratings (Ta = 25°C)
Item Symbol Ratings Unit
Collector to base voltage V
CBO
60 V
Collector to emitter voltage V
CEO
60 V
Emitter to base voltage V
EBO
7V
Collector current I
C
1A
Collector peak current I
C (peak)
2A
Collector power dissipation P
C
0.8 W
PC*
1
8
Junction temperature Tj 150 °C
Storage temperature Tstg –55 to +150 °C
Note: 1. Value at TC = 25°C.
Electrical Characteristics (Ta = 25°C)
Item Symbol Min Typ Max Unit Test Conditions
Collector to emitter breakdown
voltage
V
(BR)CEO
60 — — V IC = 1 mA, RBE = ∞
Emitter to base breakdown
voltage
V
(BR)EBO
7——VI
E
= 0.1 mA, IC = 0
Collector cutoff current I
CBO
——10µAV
CB
= 60 V, IE = 0
DC current transfer ratio h
FE
2000 — — VCE = 10 V, IC = 500 mA*
1
Collector to emitter saturation
voltage
V
CE (sat)
— — 1.5 V IC = 500 mA, IB = 0.5 mA*
1
Base to emitter saturation
voltage
V
BE (sat)
— — 2.0 V IC = 500 mA, IB = 0.5 mA*
1
Turn on time t
on
— 100 — ns VCC = 12 V, IC = 250 mA,
Turn off time t
off
— 600 — ns IB1 = –IB2 = 5 mA
Note: 1. Pulse Test.
Page 3
2SC4500(L)/(S)
3
Maximum Collector Dissipation Curve
12
8
4
0 50 100 150
Case temperature T
C
(°C)
Collector power dissipation P
C
(W)
3.0
1.0
0.3
0.1
0.03
Collector current I
C
(A)
1.0 3 3010 100
Collector to emitter voltage V
CE
(V)
DC Operation(T
C
= 25°C)
PW = 10 ms
1 ms
Area of Safe Operation
100 µs
Ta = 25°C, 1 Shot Pulse
Typical Output Characteristics
IB = 0, Ta = 25°C
80 µA
100
120
120
140
160
200
180
1.0
0.8
0.6
0.4
0.2
012
Collector to emitter voltage V
CE
(V)
543
Collector current I
C
(A)
100,000
30,000
10,000
3,000
1,000
0.01 0.1 1.00.03 0.3
DC current transfer ratio h
FE
Collector current IC (A)
DC Current Transfer Ratio vs.
Collector Current
VCE = 10 V
Ta = 25°C
Page 4
2SC4500(L)/(S)
4

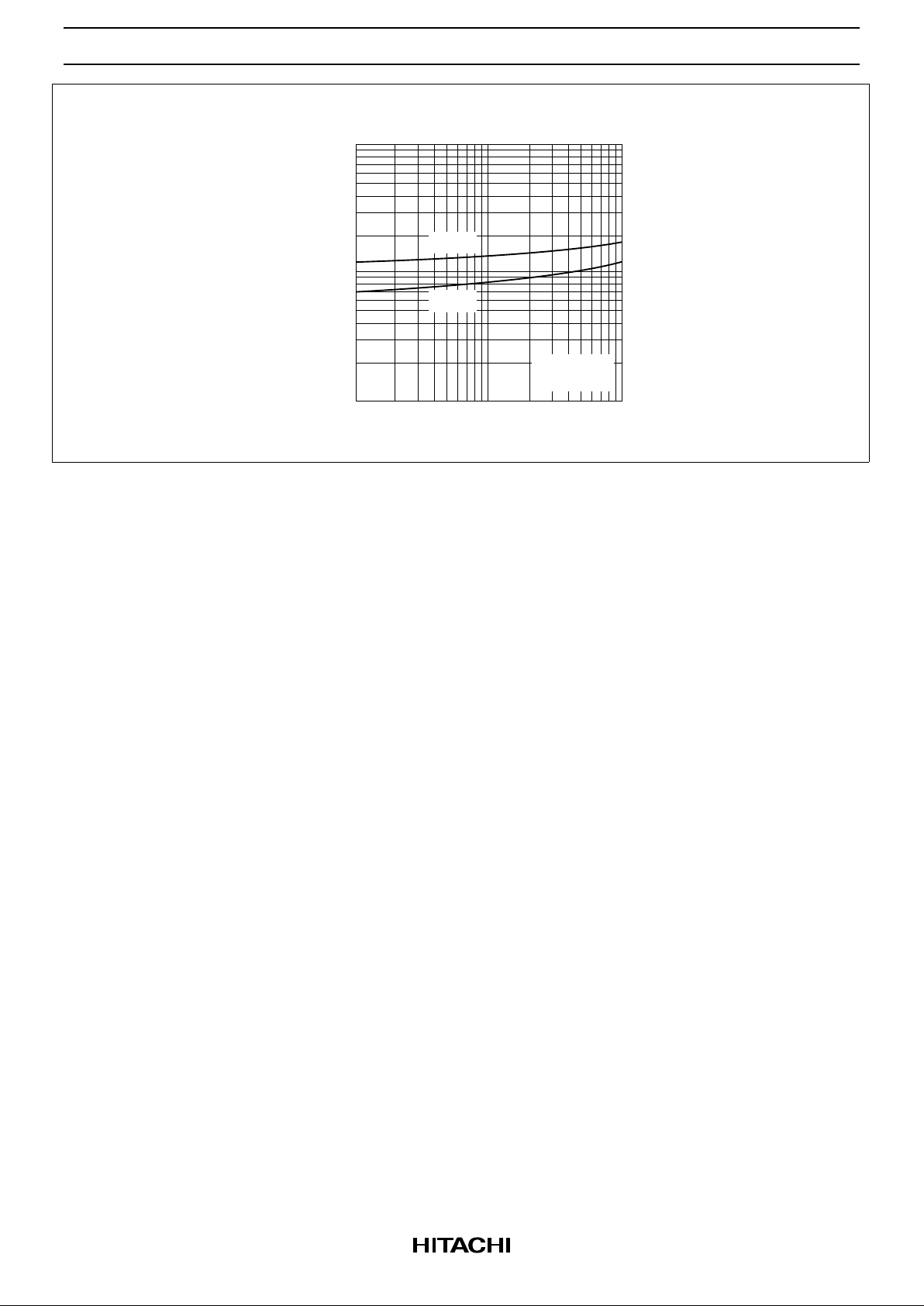

Saturation Voltage vs. Collector Current
10
3
1.0
0.3
0.1
0.01 0.30.03 0.1 1.0
Collector current I
C
(A)
Collector to emitter saturation voltage V
CE(sat)
(V)
Base to emitter saturation voltage V
BE(sat)
(V)
V
BE(sat)
V
CE(sat)
IC = 1000 I
B
Ta = 25°C
Page 5

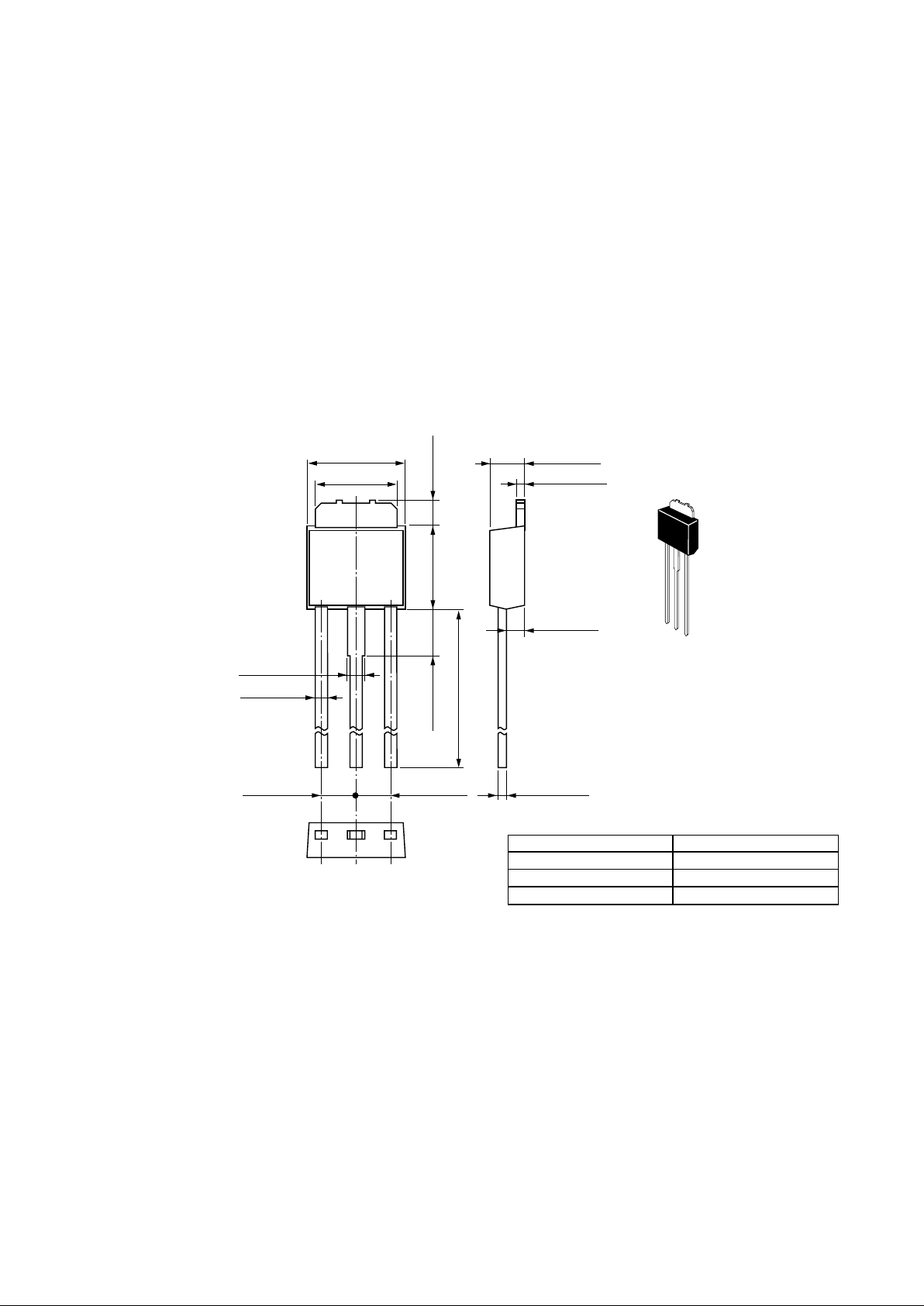

Hitachi Code
JEDEC
EIAJ
Weight
(reference value)
DPAK (L)-(1)
—
Conforms
0.42 g
Unit: mm
6.5 ± 0.5 2.3 ± 0.2
0.55 ± 0.1
1.2 ± 0.3
0.55 ± 0.1
5.5 ± 0.5 1.7 ± 0.5
16.2 ± 0.5
3.1 ± 0.5
5.4 ± 0.5
1.15 ± 0.1
2.29 ± 0.5 2.29 ± 0.5
0.8 ± 0.1
