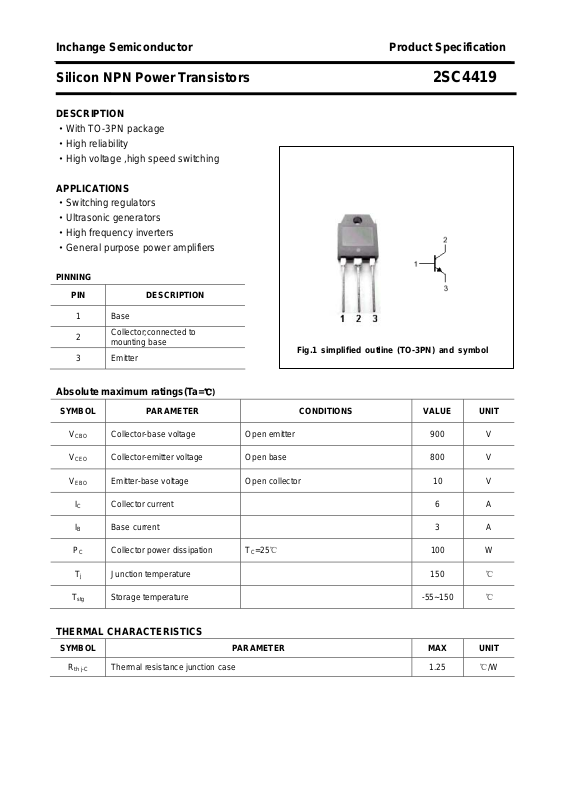

Page 1
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC4419
DESCRIPTION
·With TO-3PN package
·High reliability
·High voltage ,high speed switching
APPLICATIONS
·Switching regulators
·Ultrasonic generators
·High frequency inverters
·General purpose power amplifiers
PINNING
PIN DESCRIPTION
1
2
3 Emitter
Base
Collector;connected to
mounting base

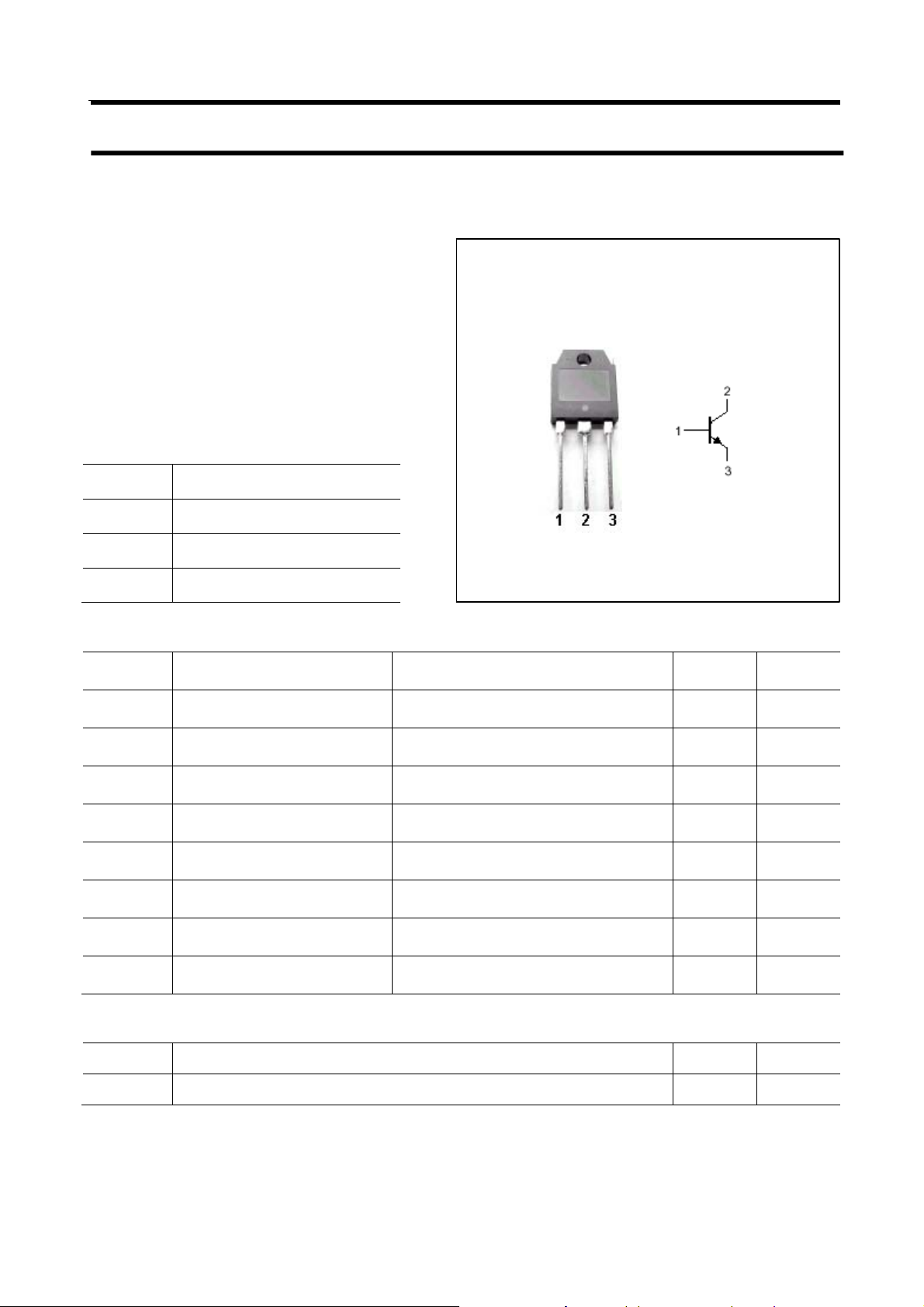

Fig.1 simplified outline (TO-3PN) and symbol
Absolute maximum ratings(Ta=℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current 6 A
IB Base current 3 A
PC Collector power dissipation
Tj Junction temperature 150
Collector-base voltage Open emitter 900 V
Collector-emitter voltage Open base 800 V
Emitter-base voltage Open collector 10 V
T
=25℃
C
100 W
℃
T
Storage temperature -55~150
stg
℃
THERMAL CHARACTERISTICS
SYMBOL PARAMETER MAX UNIT
R
Thermal resistance junction case 1.25 ℃/W
th j-C
Page 2
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC4419
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
V
CEsat
V
BEsat
I
CBO
I
EBO
Collector-emitter breakdown voltage IC=10mA ; IB=0 800 V
Collector-base breakdown voltage IC=1mA ; IE=0 900 V
Emitter-base breakdown voltage IE=1mA ; IB=0 10 V
Collector-emitter saturation voltage IC=2A; IB=0.4A 1.0 V
Base-emitter saturation voltage IC=2A; IB=0.4A 1.5 V
Collector cut-off current VCB=900V ;IE=0 1.0 mA
Emitter cut-off current VEB=10V; IC=0 1.0 mA
hFE DC current gain IC=2A ; VCE=5V 10
Switching times
ton Turn-on time 1.0
μs
IC=3A;IB1=0.6A;
=-1.2A;RL=100Ω
t
Storage time 4.0
stg
I
B2
=20μs,Duty≤2%
P
W
μs
tf Fall time
2
0.8
μs
Page 3
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC4419
PACKAGE OUTLINE

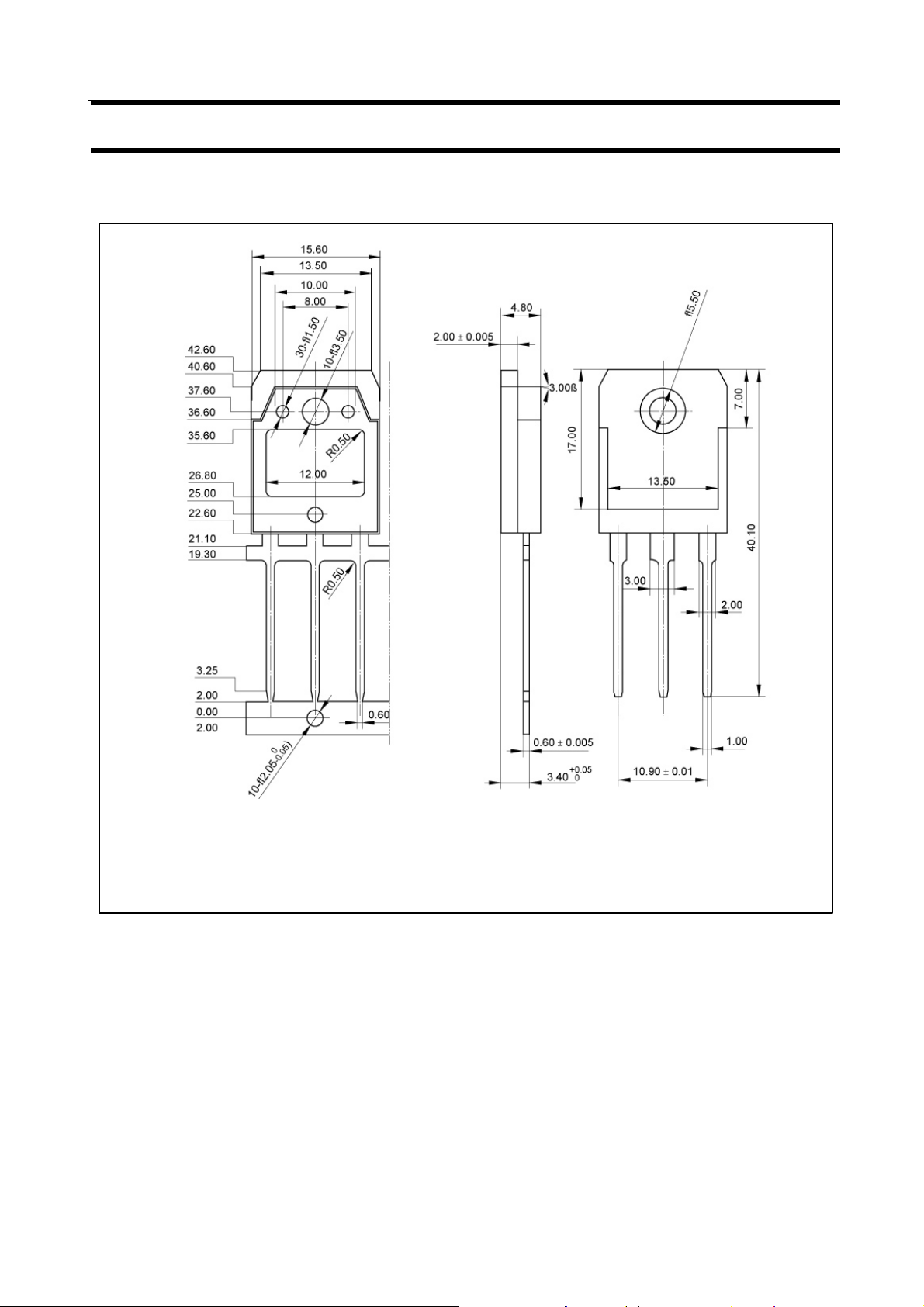

Fig.2 outline dimensions (unindicated tolerance:±0.1mm)
3
Page 4

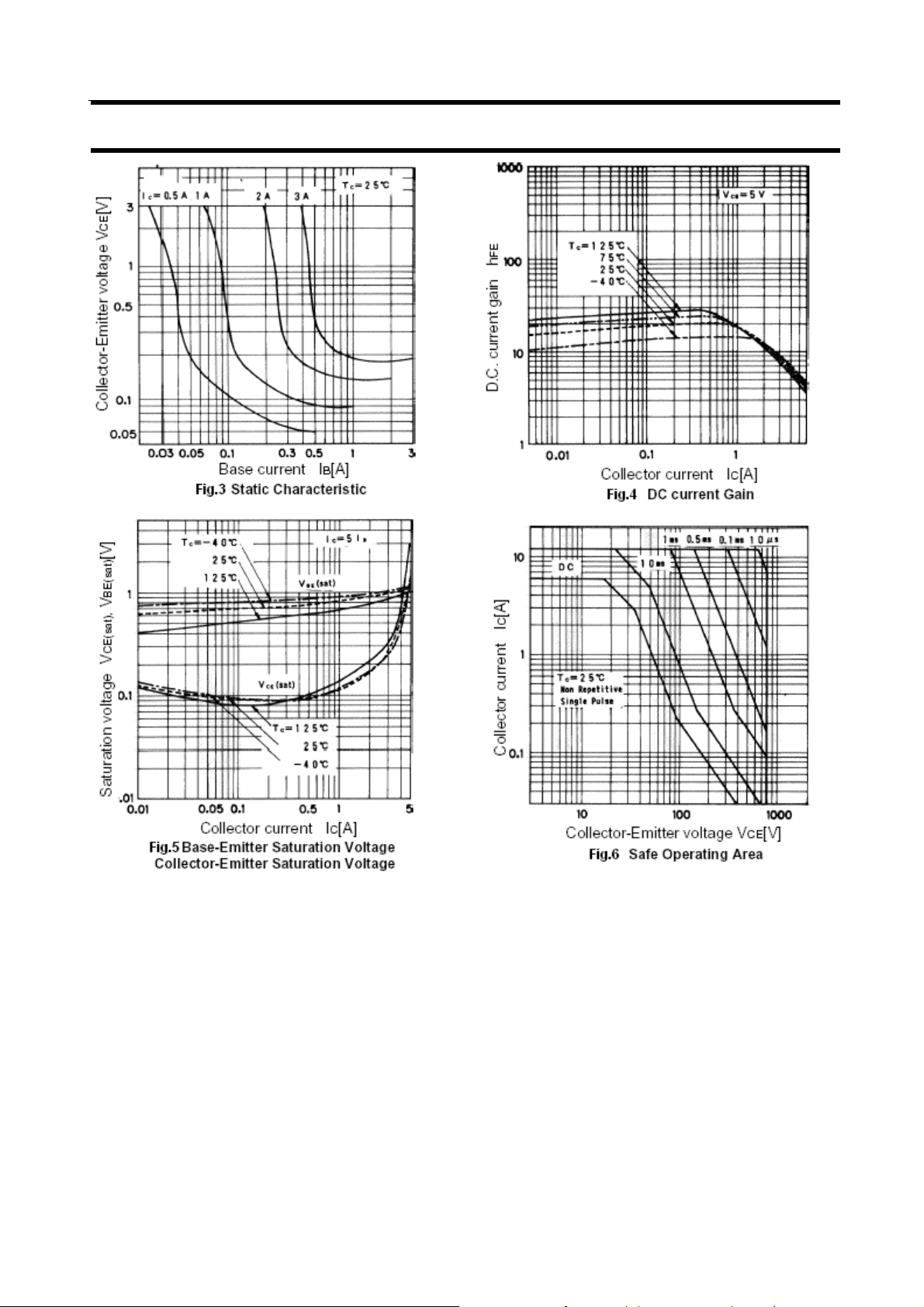

Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC4419
4
