固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification

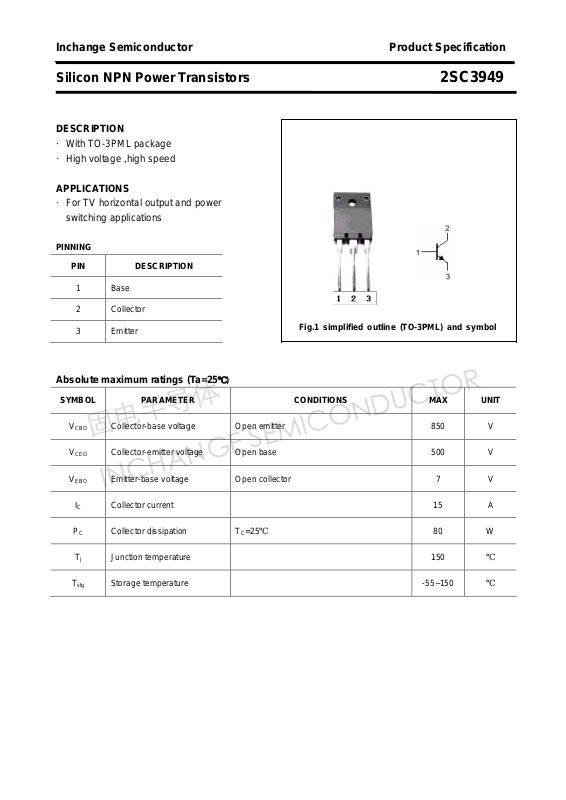

Silicon NPN Power Transistors 2SC3949
DESCRIPTION
·With TO-3PML package
·High voltage ,high speed
APPLICATIONS
·For TV horizontal output and power
switching applications
PINNING
PIN DESCRIPTION
1
2 Collector
3 Emitter
Base

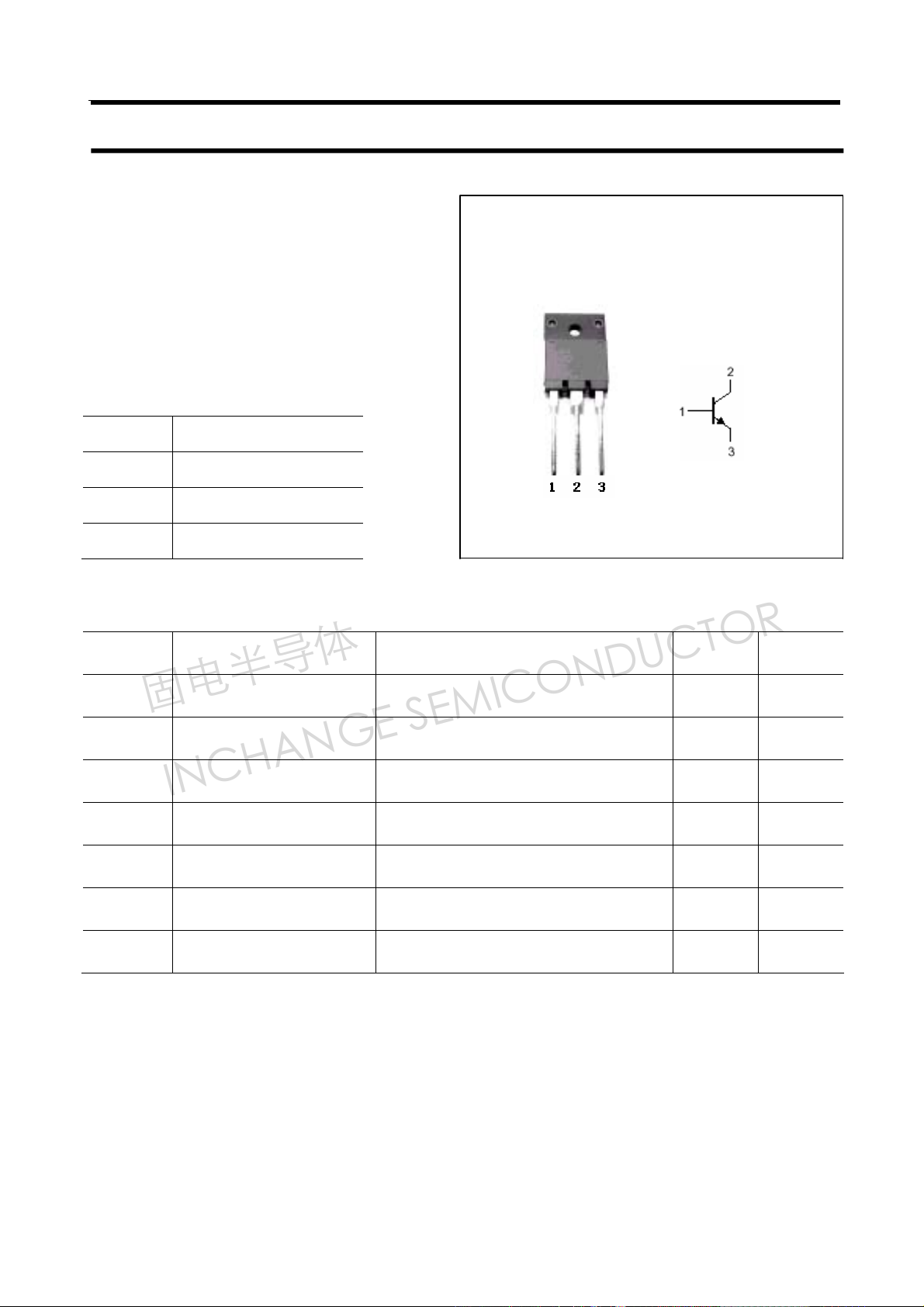

Fig.1 simplified outline (TO-3PML) and symbol
Absolute maximum ratings (Ta=25℃)
SYMBOL PARAMETER CONDITIONS MAX UNIT
V
CBO
V
CEO
V
EBO
IC Collector current 15 A
PC Collector dissipation
Tj Junction temperature 150
Collector-base voltage Open emitter 850 V
Collector-emitter voltage Open base 500 V
Emitter-base voltage Open collector 7 V
T
=25℃
C
80 W
℃
T
Storage temperature -55~150
stg
℃
Page 2
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC3949
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
V
CEsat
V
BEsat
I
CBO
I
EBO
hFE DC current gai n IC=10A ; VCE=5V 10 30
fT Transition frequency IC=2A ; VCE=10V 20 MHz
COB Output capacitance IE=0 ; VCB=10V;f=1MHz 260 pF
Collector-emitter breakdown voltage IC=10mA ;RBE=∞ 500 V
Collector-base breakdown voltage IC=1mA ;IE=0 850 V
Emitter-base breakdown voltage IE=1mA ;IC=0 7 V
Collector-emitter saturation voltage IC=10A ;IB=2A 1.0 V
Base-emitter saturation voltage IC=10A ;IB=2A 1.5 V
V
=800V; IE=0
Collector cut-off current
Emitter cut-off current VEB=6V ;IC=0 0.1 mA
CE
TC=100℃
0.1
1.0
mA
2
Page 3
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC3949
PACKAGE OUTLINE

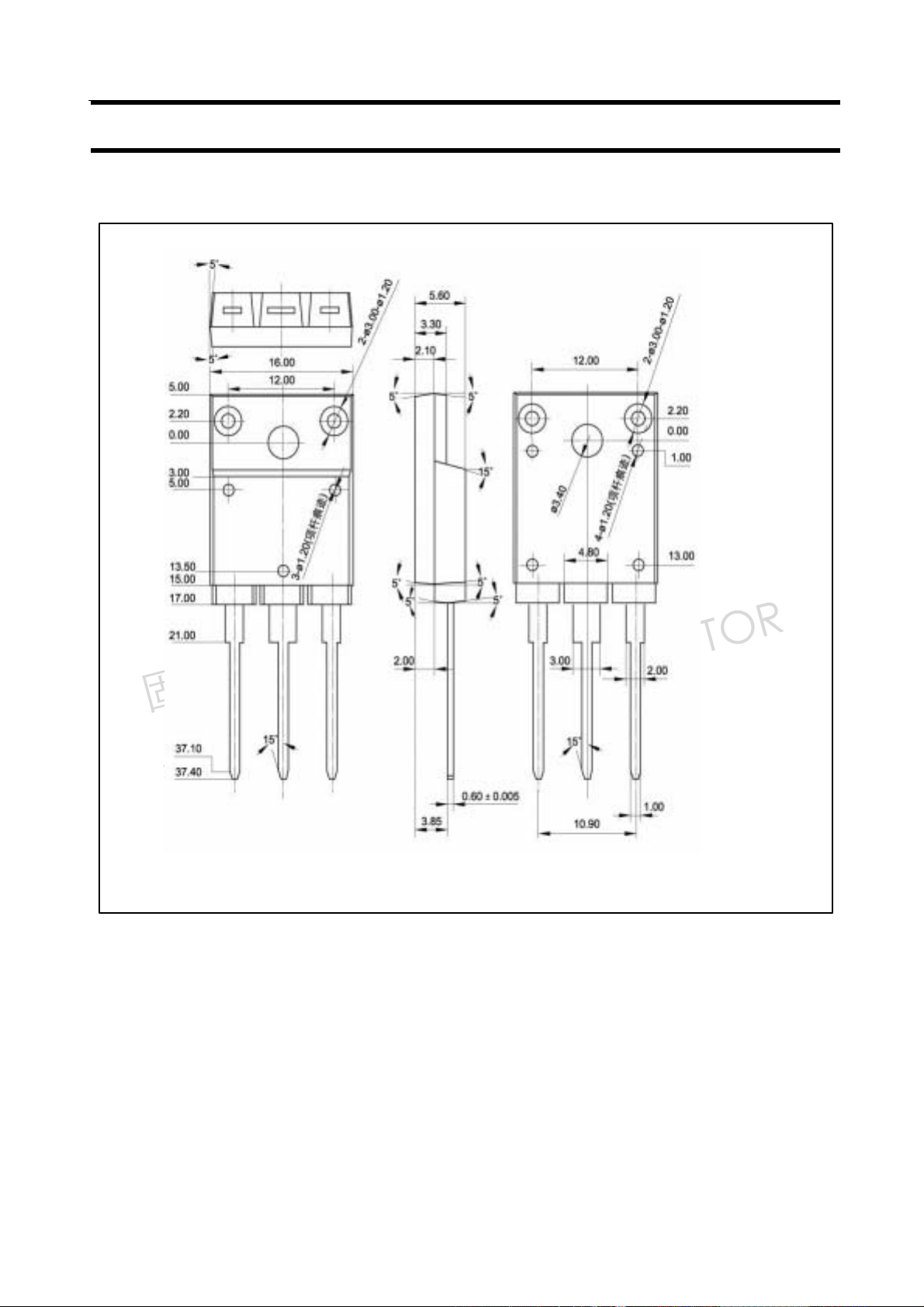

Fig.2 outline dimensions
3
