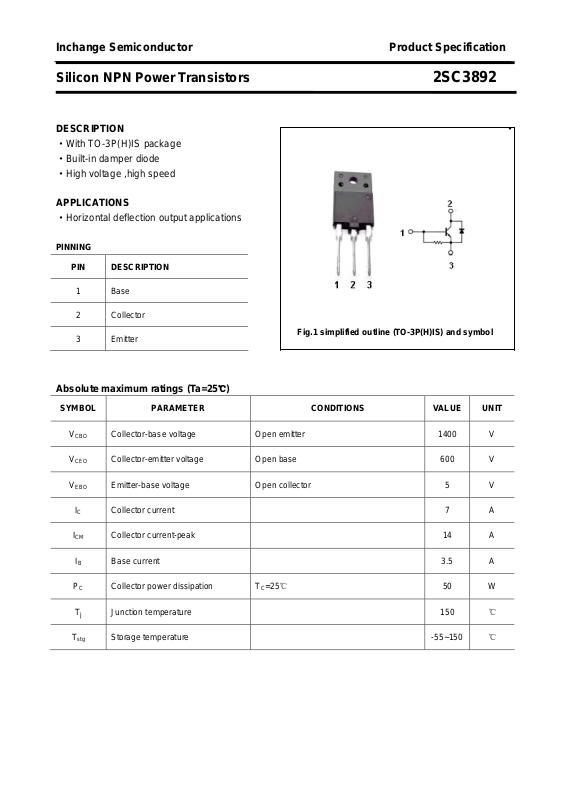

Page 1
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC3892
DESCRIPTION ·
·With TO-3P(H)IS package
·Built-in damper diode
·High voltage ,high speed
APPLICATIONS
·Horizontal deflection output applications
PINNING
PIN DESCRIPTION
1
2 Collector
3 Emitter
Base
Fig.1 simplified outline (TO-3P(H)IS) and symbol
Absolute maximum ratings (Ta=25
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current 7 A
ICM Collector current-peak 14 A
IB Base current 3.5 A
Collector-base voltage Open emitter 1400 V
Collector-emitter voltage Open base 600 V
Emitter-base voltage Open collector 5 V
℃)
PC Collector power dissipation
Tj
T
stg
Junction temperature 150
Storage temperature -55~150
T
=25℃
C
50 W
℃
℃
Page 2
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC3892
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)EBO
V
CEsat
V
BEsat
I
CBO
I
EBO
h
FE
Emitter-base breakdown voltage IE=200mA , IC=0 5 V
Collector-emitter saturation voltage IC=5A ;IB=1.2A 5.0 V
Base-emitter saturation voltage IC=5A ;IB=1.2A 1.5 V
Collector cut-off current VCB=500V; IE=0 10 μA
Emitter cut-off current VEB=5V; IC=0 66 200 mA
DC current gain IC=1A ; VCE=5V 8 12
fT Transition frequency IC=0.1A ; VCE=10V 1 3 MHz
COB Collector output capacitance IE=0 ; VCB=10V;f=1MHz 210 pF
VF
Diode forward voltage I
=5A 2.0 V
F
ts Storage time 2.5 μs
Resistive load
=5A ;IB1=1A;IB2=-2A;RL=40Ω
I
tf
Fall time
CP
0.2 μs
2
Page 3
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC3892
PACKAGE OUTLINE

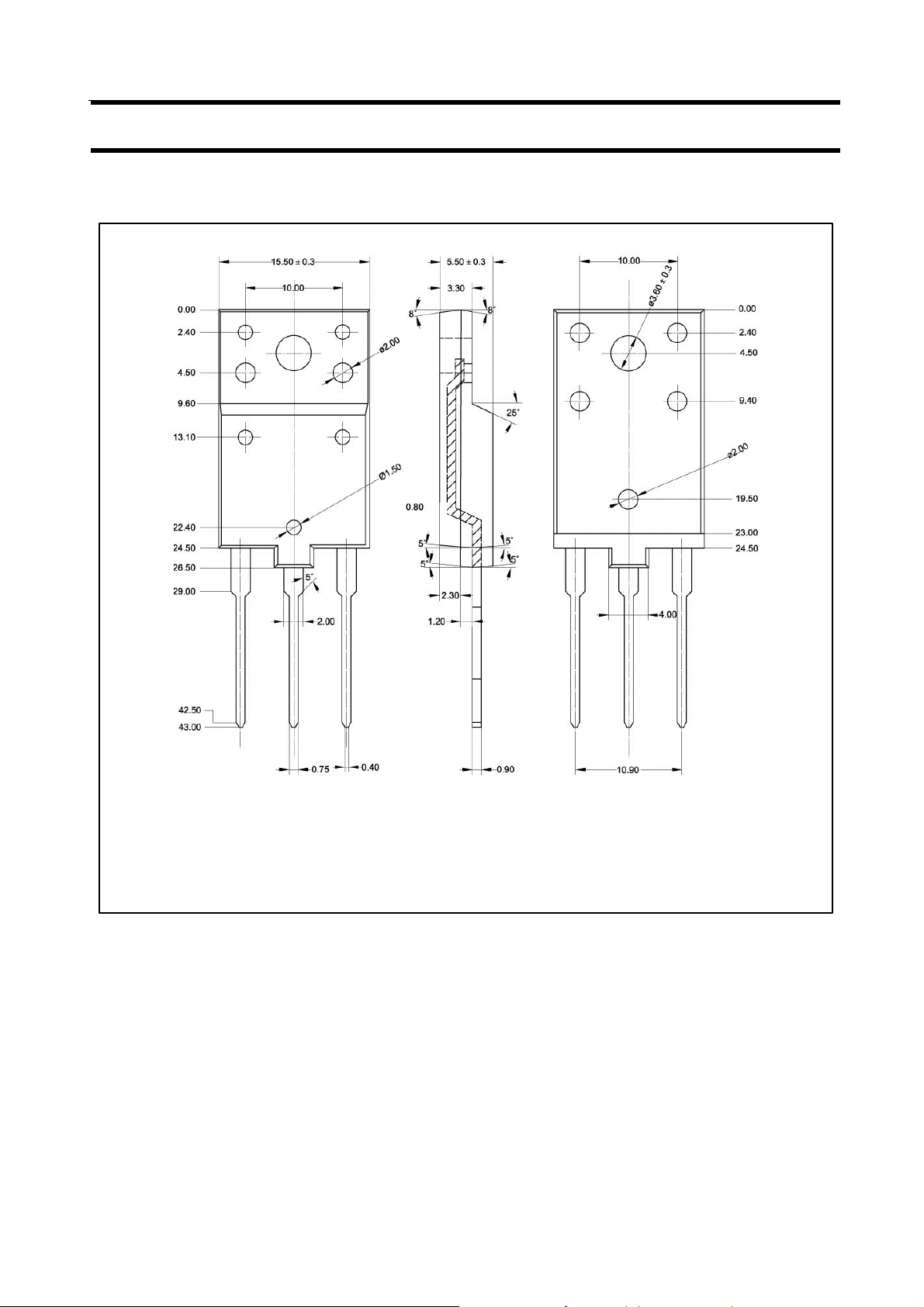

Fig.2 Outline dimensions (unindicated tolerance:±0.15 mm)
3
