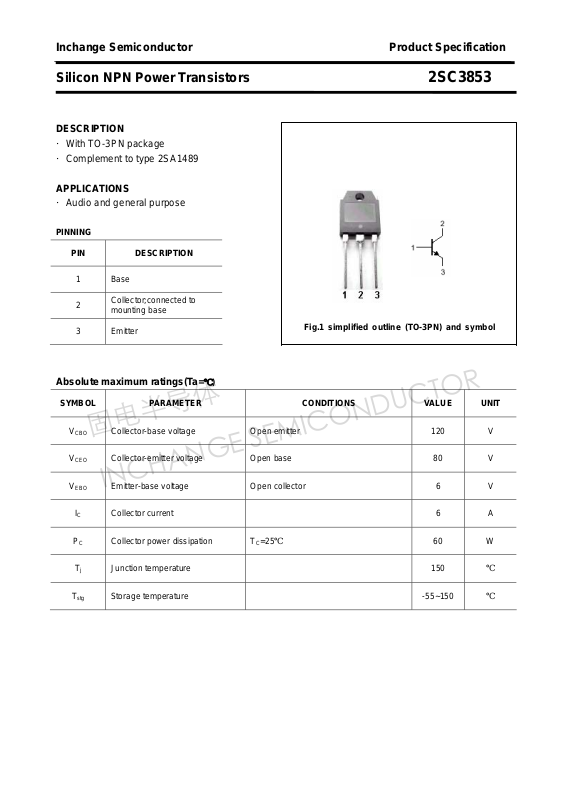

Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC3853
DESCRIPTION
·With TO-3PN package
·Complement to type 2SA1489
APPLICATIONS
·Audio and general purpose
PINNING
PIN DESCRIPTION
1
2
3 Emitter
Base
Collector;connected to
mounting base

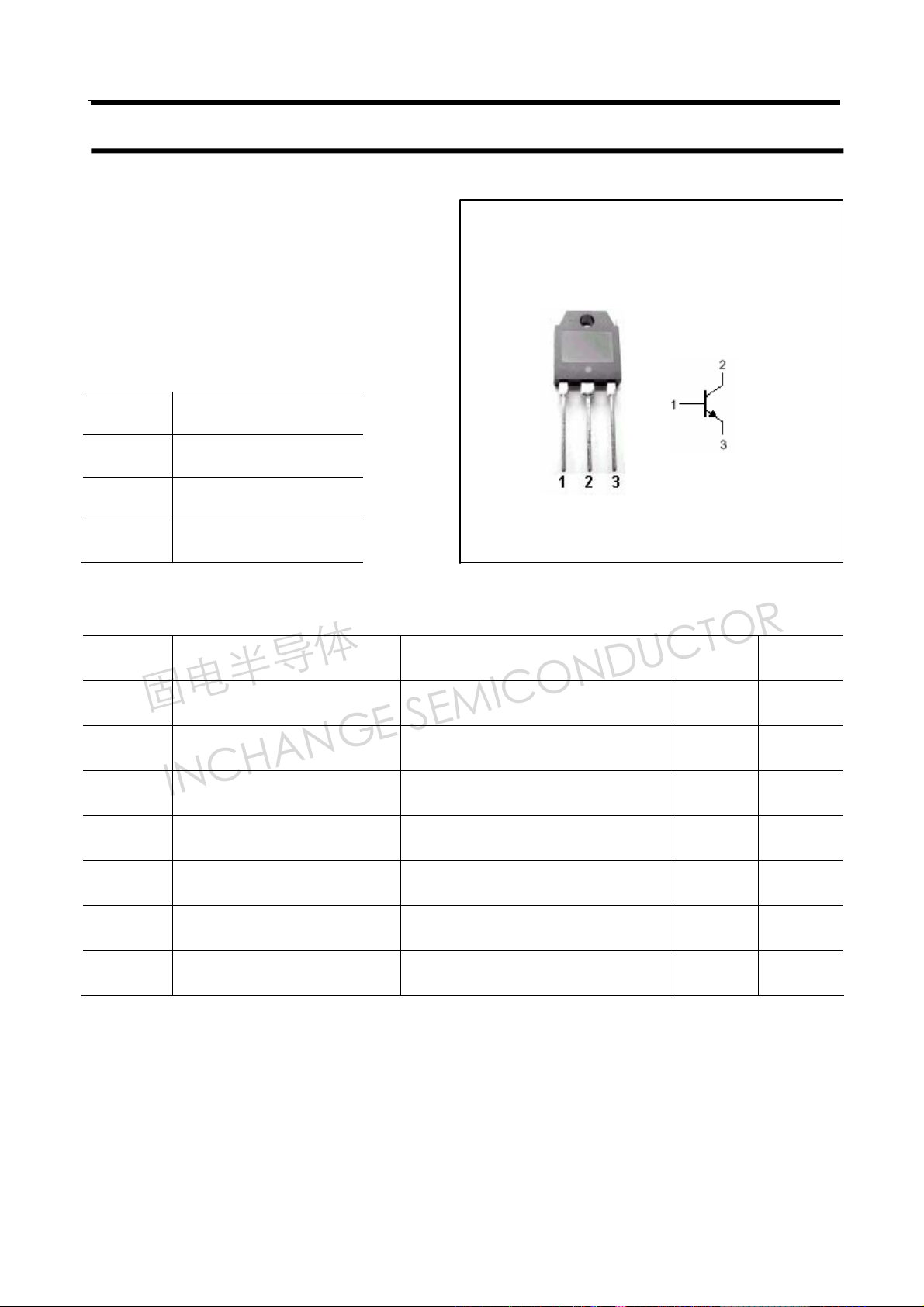

Fig.1 simplified outline (TO-3PN) and symbol
Absolute maximum ratings(Ta=
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current 6 A
PC Collector power dissipation TC=25℃ 60 W
Collector-base voltage Open emitter 120 V
Collector-emitter voltage Open base 80 V
Emitter-base voltage Open collector 6 V
℃)
Tj Junction temperature 150 ℃
T
Storage temperature -55~150 ℃
stg
Page 2
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC3853
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CEO
V
(BR)EBO
V
CEsat
I
CBO
I
EBO
hFE DC current gai n IC=2A ; VCE=4V 50
fT Transition frequency IC=0.5A ; VCE=12V 20 MHz
Collector-emitter breakdown voltage IC=50mA ;IB=0 80 V
Emitter-base breakdown voltage IE=1mA ;IC=0 6 V
Collector-emitter saturation voltage IC=2A; IB=0.2A 1.5 V
Collector cut-off current VCB=120V; IE=0 100 μA
Emitter cut-off current VEB=6V; IC=0 100 μA
2
Page 3
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC3853
PACKAGE OUTLINE
Fig.2 outline dimensions (unindicated tolerance:±0.1mm)
