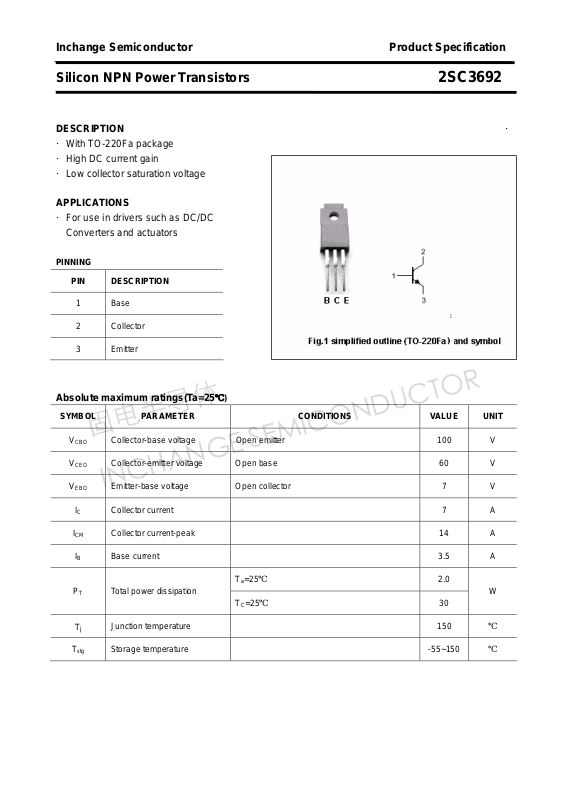

Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC3692
DESCRIPTION ·
·With TO-220Fa package
·High DC current gain
·Low collector saturation voltage
APPLICATIONS
·For use in drivers such as DC/DC
Converters and actuators
PINNING
PIN DESCRIPTION
1
2 Collector
3 Emitter
Base
Absolute maximum ratings(Ta=25
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current 7 A
ICM Collector current-peak 14 A
IB Base current 3.5 A
Collector-base voltage Open emitter 100 V
Collector-emitter voltage Open base 60 V
Emitter-base voltage Open collector 7 V
℃)
Ta=25℃
PT Total power dissipation
TC=25℃
Tj
T
stg
Junction temperature 150
Storage temperature -55~150
2.0
W
30
℃
℃
Page 2
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC3692
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
V
V
V
V
Collector-emitter sustaining voltage IC=4A; IB=0.4A,L=1mH 60 V
CEO(SUS)
Collector-emitter saturation voltage IC=4A; IB=0.2 A 0.3 V
CEsat-1
Collector-emitter saturation voltage IC=6A; IB=0.3A 0.5 V
CEsat-2
Base-emitter saturation voltage IC=4A; IB=0.2 A 1.2 V
BEsat-1
Base-emitter saturation voltage IC=6A; IB=0.3A 1.5 V
BEsat-2
I
Collector cut-off current VCB=60V; IE=0 10 μA
CBO
V
=60V; VBE=-1.5V
I
Collector cut-off current
CEX
I
Emitter cut-off current VEB=5V; IC=0 10 μA
EBO
h
DC current gain IC=0.7A ; VCE=2V 100
FE-1
h
DC current gain IC=1.5A ; VCE=2V 100 200 400
FE-2
h
DC current gain IC=4A ; VCE=2V 60
FE-3
COB Output capacitance IE=0; VCB=10V;f=1MHz 100 pF
CE
Ta=125℃
10
1.0
μA
mA
fT Transition frequency IC=1A ; VCE=10V 150 MHz
Switching times
ton Turn-on time 0.3 μs
ts Storage time 1.5 μs
tf Fall time
h
100-200 150-300 200-400
classifications
FE-2
M L K
2
I
=4A;RL=12.5Ω
C
=-IB2=0.2A
I
B1
VCC≈50V
0.3 μs
