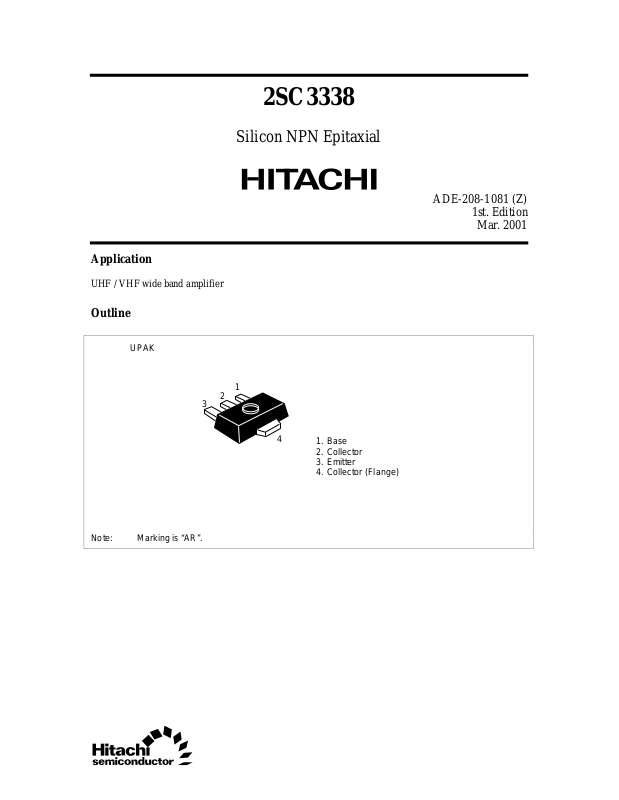

Datasheet 2SC3338 Datasheet (HIT)

Application

UHF / VHF wide band amplifier

Outline

UPAK

3

2SC3338

Silicon NPN Epitaxial

ADE-208-1081 (Z)

1st. Edition

Mar. 2001

1

2

Note: Marking is “AR”.

4

1. Base

2. Collector

3. Emitter

4. Collector (Flange)

2SC3338

Absolute Maximum Ratings (Ta = 25°C)

Item Symbol Ratings Unit

Collector to base voltage V
Collector to emitter voltage V
Emitter to base voltage V
Collector current I
Collector power dissipation P

CBO

CEO

EBO

C

C

Junction temperature Tj 150 °C
Storage temperature Tstg –55 to +150 °C

Electrical Characteristics (Ta = 25°C)

Item Symbol Min Typ Max Unit Test conditions

Collector to base breakdown

V

(BR)CBO

voltage
Collector to emitter breakdown

V

(BR)CEO

voltage
Emitter cutoff current I
Collector cutoff current I
DC current transfer ratio h

EBO

CBO

FE

Collector output capacitance Cob — 1.0 1.5 pF VCB = 5 V, IE = 0, f = 1 MHz
Gain bandwidth product f

T

Power gain PG — 8.2 — dB VCE = 5 V, IC = 20 mA,

Noise figure NF — 2.0 — dB VCE = 5 V, IC = 5 mA,

20——V I

12——V I

——10µAVEB = 3 V, IC = 0
— — 0.5 µAVCB = 15 V, IC = 0
30 90 200 VCE = 5 V, IC = 20 mA

3.5 4.5 — GHz VCE = 5 V, IC = 20 mA

20 V
12 V
3V
50 mA
400 mW

= 10 µA, IE = 0

C

= 1 mA, RBE = ∞

C

f = 900 MHz

f = 900 MHz

See characteristic curves of 2SC3127.

2

Maximum Collector Dissipation Curve

600

(mW)

C

400

200

Collector Power Dissipation P

0 50 100 150

Ambient Temperature Ta (°C)

2SC3338

3

2SC3338

Package Dimensions

As of January, 2001

Unit: mm

0.53 Max

0.48 Max

4.5 ± 0.1

1.8 Max

1.5

1.5

3.0

1.5 ± 0.1

0.4

φ

1

2.5 ± 0.1

4.25 Max

0.8 Min

0.44 Max

0.44 Max

(2.5)

(0.4)

Hitachi Code
JEDEC
EIAJ
Mass

(1.5)

(reference value)

(0.2)

UPAK
—
Conforms

0.050 g

4

2SC3338
