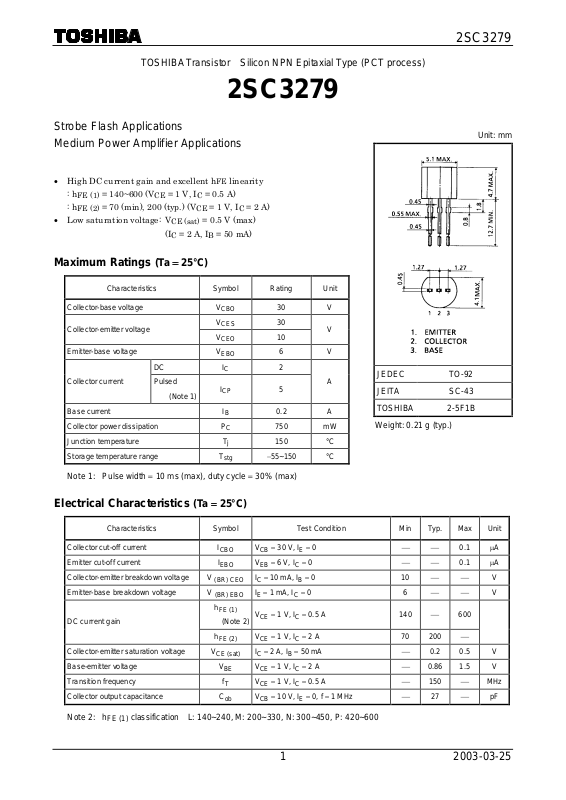

Page 1
TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT process)
2SC3279
2SC3279
Strobe Flash Applications
Medium Power Amplifier Applications
· High DC current gain and excellent h
: h
: h
· Low saturation voltage: V
(I
= 140~600 (VCE = 1 V, IC = 0.5 A)
FE (1)
= 70 (min), 200 (typ.) (VCE = 1 V, IC = 2 A)
FE (2)
CE (sat)
= 2 A, IB = 50 mA)
C
Maximum Ratings
Characteristics Symbol Rating Unit
Collector-base voltage V
Collector-emitter voltage
Emitter-base voltage V
Collector current
Base current IB 0.2 A
Collector power dissipation PC 750 mW
Junction temperature T
Storage temperature range T
(Ta ==== 25°C)
DC IC 2
Pulsed
(Note 1)
linearity
FE
= 0.5 V (max)
30 V
CBO
V
30
CES
10
V
CEO
6 V
EBO
5
I
CP
j
stg
V
A
150 °C
-55~150 °C
Unit: mm
JEDEC TO-92
JEITA SC-43
TOSHIBA 2-5F1B
Weight: 0.21 g (typ.)
Note 1: Pulse width = 10 ms (max), duty cycle = 30% (max)
Electrical Characteristics
Characteristics Symbol Test Condition Min Typ. Max Unit
Collector cut-off current I
Emitter cut-off current I
Collector-emitter breakdown voltage V
Emitter-base breakdown voltage V
DC current gain
Collector-emitter saturation voltage V
Base-emitter voltage VBE VCE = 1 V, IC = 2 A ¾ 0.86 1.5 V
Transition frequency fT VCE = 1 V, IC = 0.5 A ¾ 150 ¾ MHz
Collector output capacitance Cob VCB = 10 V, IE = 0, f = 1 MHz ¾ 27 ¾ pF
Note 2: h
classification L: 140~240, M: 200~330, N: 300~450, P: 420~600
FE (1)
(Ta ==== 25°C)
(BR) CEOIC
(BR) EBOIE
h
h
CE (sat)
VCB = 30 V, IE = 0 ¾ ¾ 0.1 mA
CBO
VEB = 6 V, IC = 0 ¾ ¾ 0.1 mA
EBO
= 10 mA, IB = 0 10 ¾ ¾ V
= 1 mA, IC = 0 6 ¾ ¾ V
FE (1)
(Note 2)
FE (2)
V
= 1 V, IC = 0.5 A 140 ¾ 600
CE
VCE = 1 V, IC = 2 A 70 200 ¾
IC = 2 A, IB = 50 mA ¾ 0.2 0.5 V
1
2003-03-25

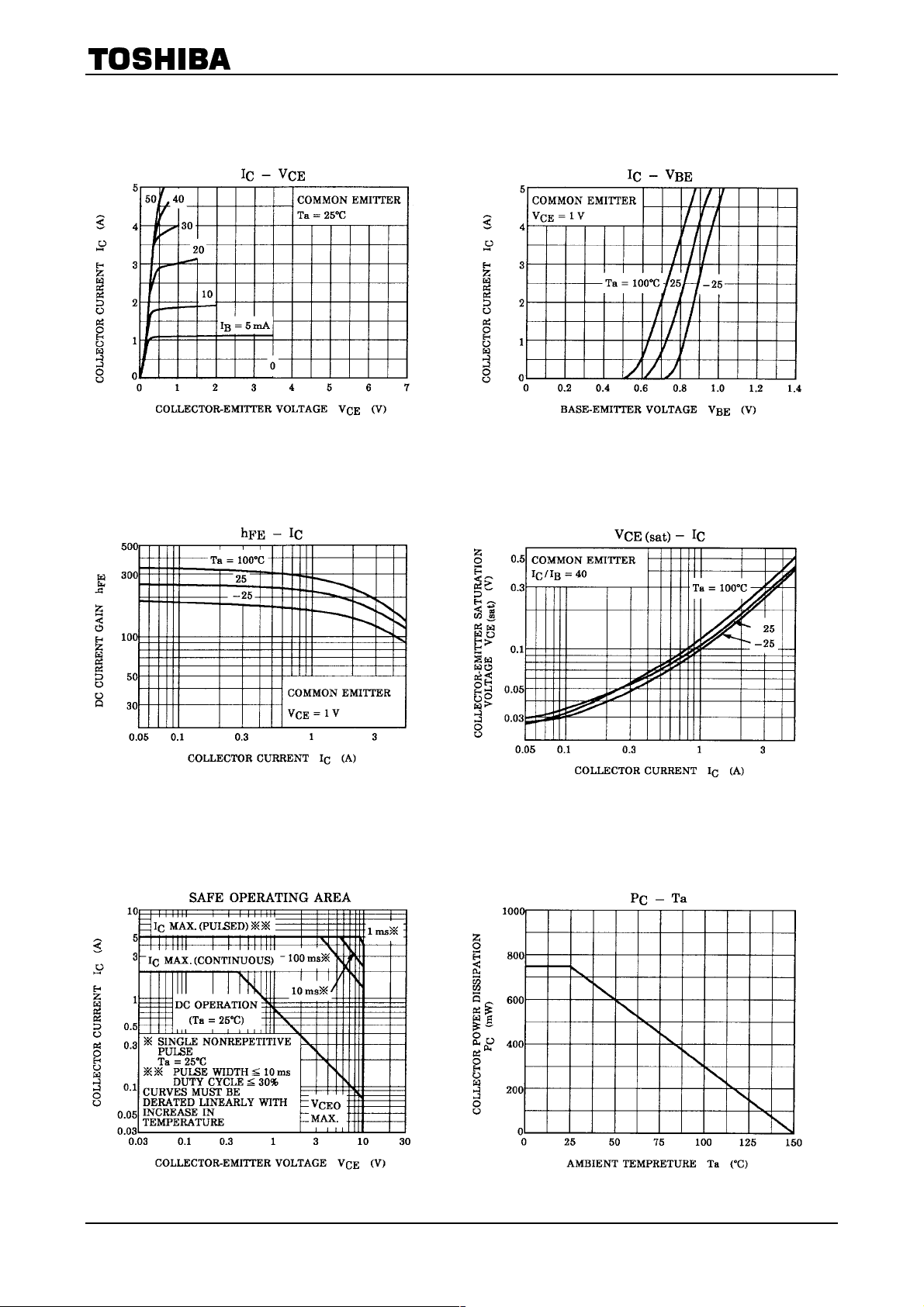

Page 2
2SC3279
2
2003-03-25
