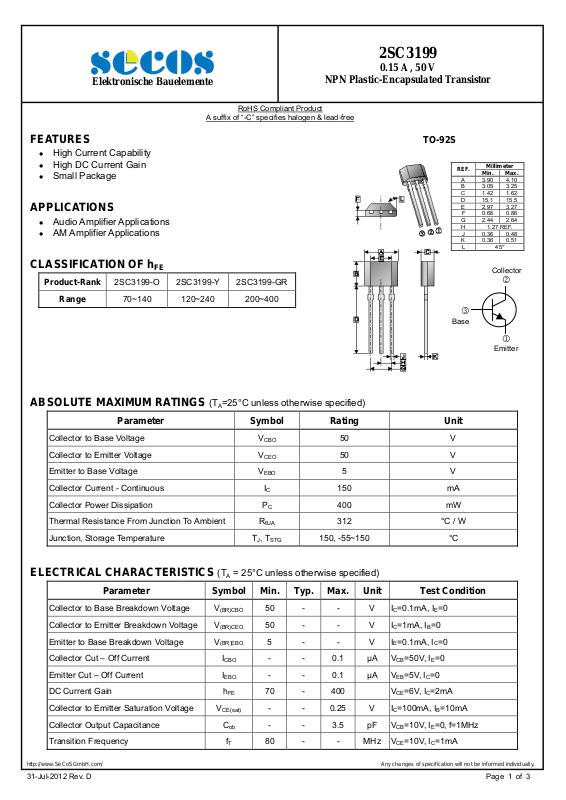

Page 1
r
r
Elektronische Bauelemente
FEATURES
High Current Capability
High DC Current Gain
Small Package
APPLICATIONS
Audio Amplifier Applications
AM Amplifier Applications
NPN Plastic-Encapsulated Transistor
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
2SC3199
0.15 A , 50 V
TO-92S
REF.
Millimete
Min. Max.
A 3.90 4.10
B 3.05 3.25
C 1.42 1.62
D 15.1 15.5
E 2.97 3.27
F 0.66 0.86
G 2.44 2.64
H 1.27 REF.
J 0.36 0.48
K 0.36 0.51
L 45°
CLASSIFICATION OF h
FE
Product-Rank 2SC3199-O 2SC3199-Y 2SC3199-GR
Range 70~140 120~240 200~400
Base
ABSOLUTE MAXIMUM RATINGS (T
Parameter Symbol Rating Unit
Collector to Base Voltage V
Collector to Emitter Voltage V
Emitter to Base Voltage V
Collector Current - Continuous IC 150 mA
Collector Power Dissipation PC 400 mW
Thermal Resistance From Junction To Ambient R
Junction, Storage Temperature TJ, T
=25°C unless otherwise specified)
A
50 V
CBO
50 V
CEO
5 V
EBO
312 °C / W
θJA
150, -55~150 °C
STG
Collector
Emitte
ELECTRICAL CHARACTERISTICS (T
Parameter Symbol Min. Typ. Max. Unit Test Condition
Collector to Base Breakdown Voltage V
Collector to Emitter Breakdown Voltage V
Emitter to Base Breakdown Voltage V
Collector Cut – Off Current I
Emitter Cut – Off Current I
DC Current Gain hFE 70 - 400 VCE=6V, IC=2mA
Collector to Emitter Saturation Voltage V
Collector Output Capacitance Cob - - 3.5 pF VCB=10V, IE=0, f=1MHz
Transition Frequency fT 80 - - MHz VCE=10V, IC=1mA
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
31-Jul-2012 Rev. D Page 1 of 3
= 25°C unless otherwise specified)
A
50 - - V IC=0.1mA, IE=0
(BR)CBO
(BR)CEO
(BR)EBO
- - 0.1 μA VCB=50V, IE=0
CBO
- - 0.1 μA VEB=5V, IC=0
EBO
CE(sat)
50 - - V IC=1mA, IB=0
5 - - V IE=0.1mA, IC=0
- - 0.25 V IC=100mA, IB=10mA
Page 2
Elektronische Bauelemente

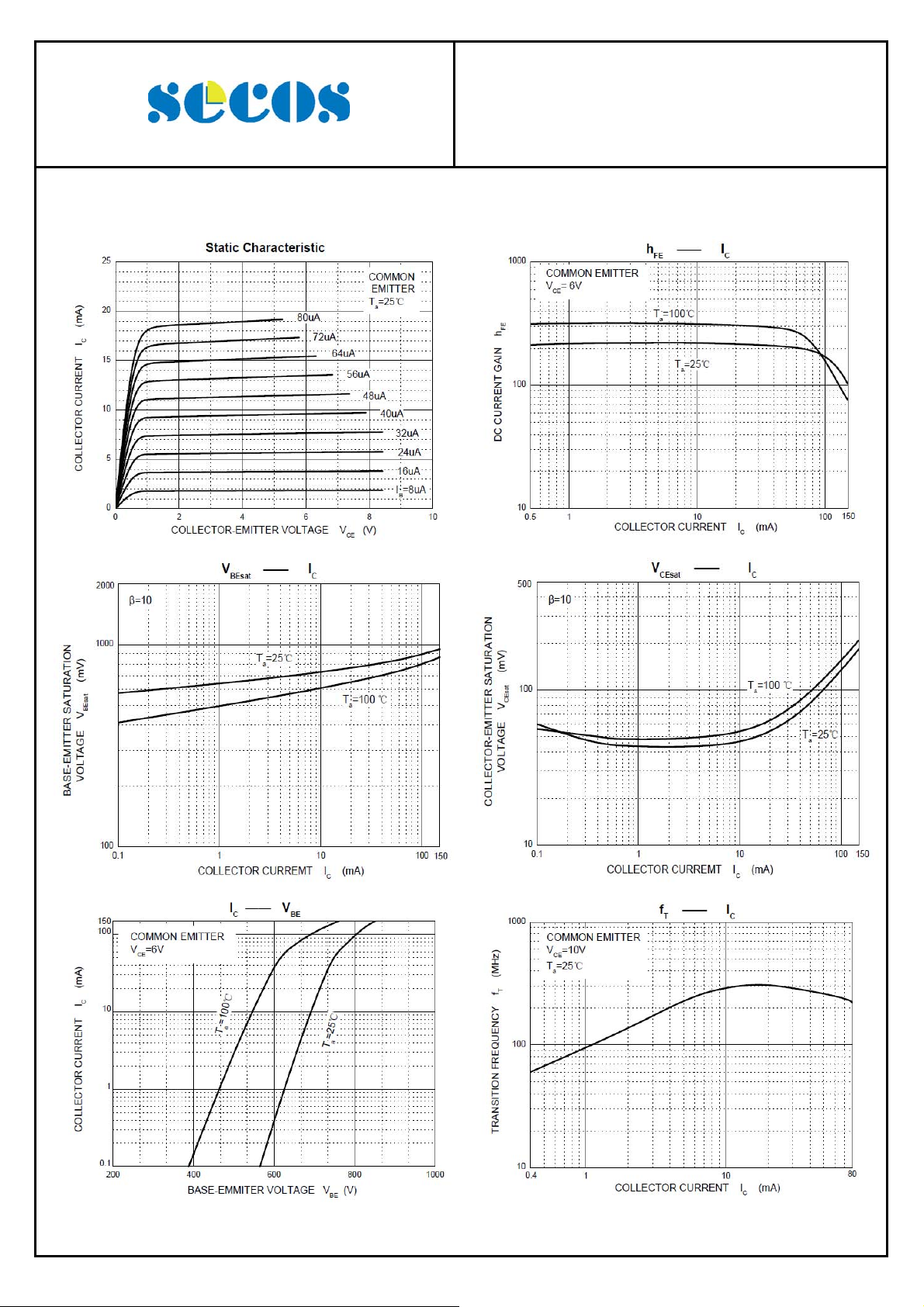

CHARACTERISTIC CURVES
2SC3199
NPN Plastic-Encapsulated Transistor
0.15 A , 50 V
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
31-Jul-2012 Rev. D Page 2 of 3
Page 3
Elektronische Bauelemente

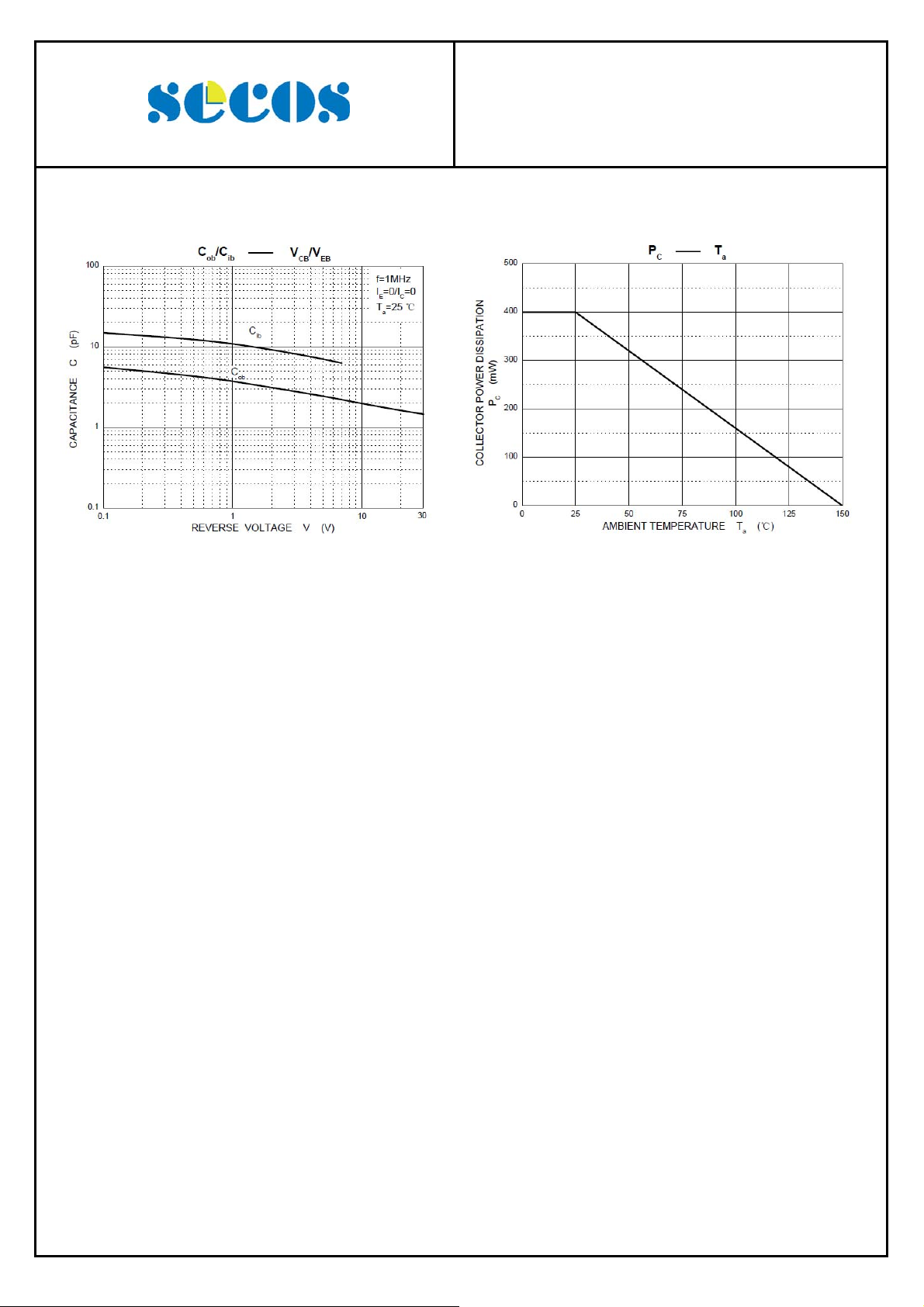

CHARACTERISTIC CURVES
2SC3199
NPN Plastic-Encapsulated Transistor
0.15 A , 50 V
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
31-Jul-2012 Rev. D Page 3 of 3
