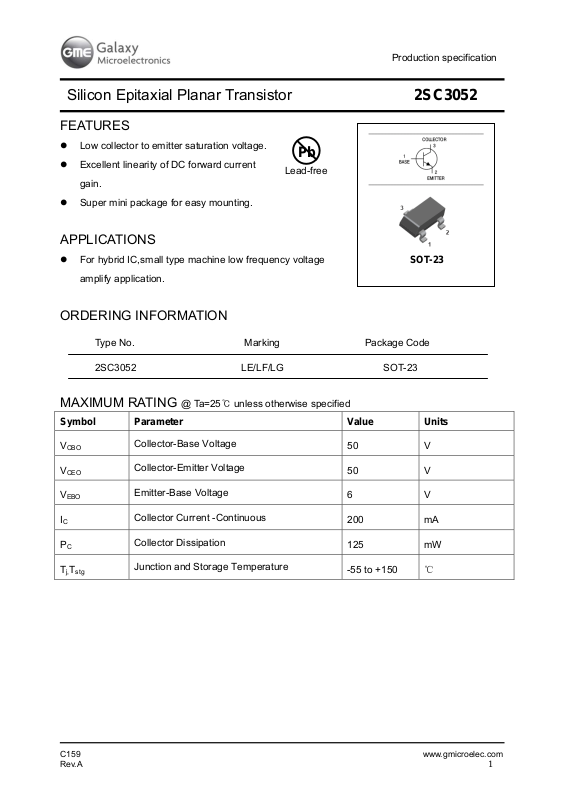

Production specification
Silicon Epitaxial Planar Transistor 2SC3052
FEATURES
z Low collector to emitter saturation voltage.
Pb
z Excellent linearity of DC forward current
gain.
z Super mini package for easy mounting.
APPLICATIONS
z For hybrid IC,small type machine low frequency voltage SOT-23
amplify application.
ORDERING INFORMATION
Type No. Marking Package Code
2SC3052 LE/LF/LG SOT-23
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Lead-free
Symbol Parameter Value Units
V
CBO
V
CEO
V
EBO
I
C
P
C
Tj,T
stg
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current -Continuous
Collector Dissipation
Junction and Storage Temperature
50 V
50 V
6 V
200 mA
125 mW
-55 to +150 ℃
C159 www.gmicroelec.com
Rev.A 1
Page 2
Production specification
Silicon Epitaxial Planar Transistor 2SC3052
ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
Parameter Symbol Test conditions MIN
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector to Emitter saturation voltage
Collector output capacitance
Transition frequency
Noise Figure
V
(BR)CBO IC
V
(BR)CEOIC
V
(BR)EBO IE
I
CBO
I
EBO
h
FE
V
CE(sat)
C
ob
f
T
NF
=100μA,IE=0 50 V
=0.1mA,IB=0 50 V
=100μA,IC=0 6 V
VCB=50V,IE=0 0.1 μA
VEB=6V,IC=0 0.1 μA
VCE=6V,IC=1mA
=6V,IC=0.1mA
V
CE
IC=100mA, IB=10mA
VCB=6V,IE=0,f=1MHz
VCE=6V, IC= 10mA
V
=6V,IE=0.1mA,
CE
f=1kHz,R
=2kΩ
G
150
0.3 V
2.5 pF
200 MHz
20 dB
TYP MAX UNIT
90
800
CLASSIFICATION OF h
FE
Rank E F G
Range 150-300 250-500 400-800
Marking LE LF LG

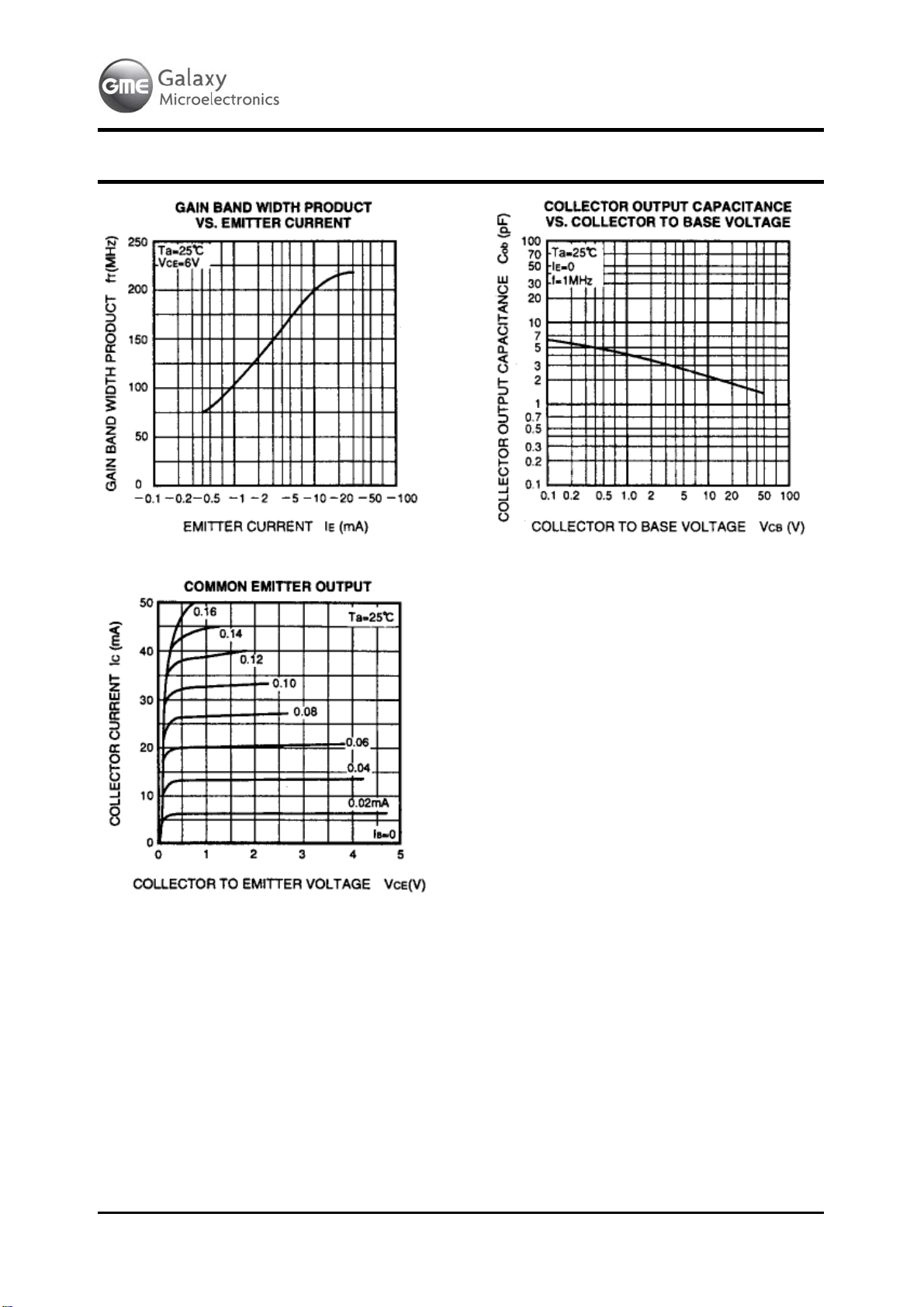

TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
C159 www.gmicroelec.com
Rev.A 2
Page 3
Production specification
Silicon Epitaxial Planar Transistor 2SC3052
C159 www.gmicroelec.com
Rev.A 3
Page 4
Production specification
Silicon Epitaxial Planar Transistor 2SC3052
PACKAGE OUTLINE
Plastic surface mounted package SOT-23
K
D
A
G
Dim Min Max
E
B
J
A 2.70 3.10
B 1.10 1.50
C 1.0 Typical
D 0.4 Typical
E 0.35 0.48
G 1.80 2.00
H 0.02 0.1
SOT-23
C
H
SOLDERING FOOTPRINT
0.95 0.95
2.00
0.90
0.80
J 0.1 Typical
K 2.20 2.60
All Dimensions in mm
Unit : mm
PACKAGE INFORMATION
Device Package Shipping
2SC3052 SOT-23 3000/Tape&Reel
