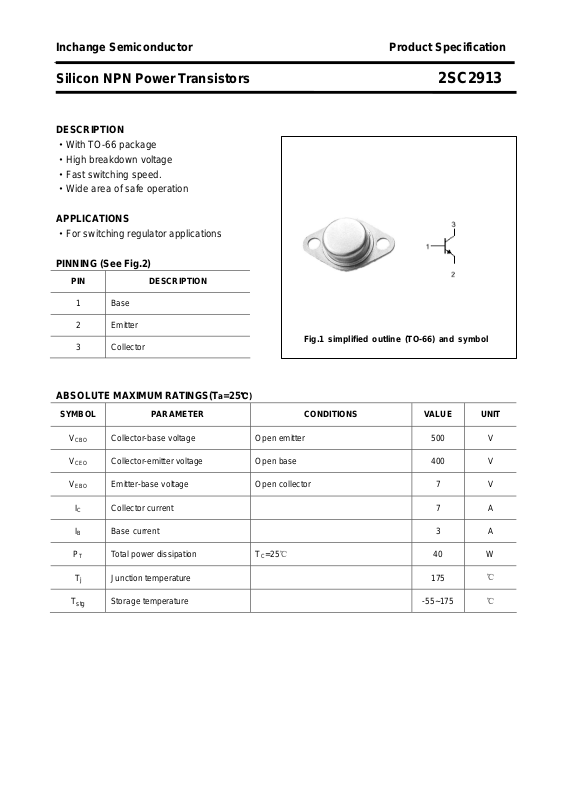

Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2913
DESCRIPTION
·With TO-66 package
·High breakdown voltage
·Fast switching speed.
·Wide area of safe operation
APPLICATIONS
·For switching regulator applications
PINNING (See Fig.2)
PIN DESCRIPTION
1
2 Emitter
3 Collector
Base
Fig.1 simplified outline (TO-66) and symbol
ABSOLUTE MAXIMUM RATINGS(T
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current 7 A
IB Base current 3 A
PT Total power dissipation
Tj
Collector-base voltage Open emitter 500 V
Collector-emitter voltage Open base 400 V
Emitter-base voltage Open collector 7 V
Junction temperature 175
a=25℃)
T
=25℃
C
40 W
℃
T
stg
Storage temperature -55~175
℃
Page 2
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2913
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
I
V
(BR)CEO
Collector-emitter breakdown voltage
=5mA ; RBE=∞
C
400 V
V
(BR)CBO
V
(BR)EBO
V
CEsat
V
BEsat
I
CBO
I
EBO
Collector-base breakdown voltage IC=1mA ; IE=0 500 V
Emitter-base breakdown voltage IE=1mA ; IC=0 7 V
Collector-emitter saturation voltage IC=7A; IB=1.4A 1.0 V
Base-emitter saturation voltage IC=7A; IB=1.4A 2.0 V
Collector cut-off current VCB=400V ;IE=0 100
Emitter cut-off current VEB=5V; IC=0 100
μA
μA
hFE DC current gai n IC=3A ; VCE=5V 12
2
Page 3
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2913
PACKAGE OUTLINE
Fig.2 Outline dimensions
3
