FEATURES
High Gain：G
Good Linearity of h
Elektronische Bauelemente
A suffix of “-C” specifies halogen & lead-free
=33 dB(Typ.)(f =45MHz)
pe
FE
RoHS Compliant Product
2SC2717
0.05A , 30V
NPN Plastic-Encapsulated Transistor
TO-92
G
K
H
Base
J
A
D
B
CE
F
Emitter
Collector
REF.
A 4.40 4.70
B 4.30 4.70
C 12.70 D 3.30 3.81
E 0.36 0.56
F 0.36 0.51
G 1.27 TYP.
H 1.10 J 2.42 2.66
K 0.36 0.76
Collector
Millimeter
Min. Max.
Base
Emitte
ABSOLUTE MAXIMUM RATINGS (T
Parameter Symbol Rating Unit
Collector to Base Voltage V
Collector to Emitter Voltage V
Emitter to Base Voltage V
Collector Current - Continuous IC 50 mA
Collector Power Dissipation PC 300 mW
Junction, Storage Temperature TJ, T
= 25°C unless otherwise specified)
A
30 V
CBO
25 V
CEO
4 V
EBO
125, -55~125 °C
STG
ELECTRICAL CHARACTERISTICS (T
Parameter Symbol Min. Typ. Max. Unit Test Condition
Collector to Base Breakdown Voltage V
Collector to Emitter Breakdown Voltage V
Emitter to Base Breakdown Voltage V
Collector Cut – Off Current I
Emitter Cut – Off Current I
DC Current Gain hFE 40 - 240 VCE=12.5V, IC=12.5mA
Collector to Emitter Saturation Voltage V
Base to Emitter Saturation voltage V
Transition Frequency fT 300 - - MHz VCE=12.5V, IC=12.5mA
Collector Output Capacitance Cob 0.8 - 2 pF VCB=10V, IE=0, f=30MHz
Collector to Base Time Constant C
Power Gain Gpe 28 - 36 dB
= 25°C unless otherwise specified)
A
30 - - V IC=100μA, IE=0
(BR)CBO
(BR)CEO
(BR)EBO
- - 0.1 μA VCB=30V, IE=0
CBO
- - 0.1 μA VEB=3V, IC=0
EBO
CE(sat)
BE(sat)
.rbb’
C
25 - - V IC=10mA, IB=0
4 - - V IE=100μA, IC=0
- - 0.2 V IC=15mA, IB=1.5mA
- - 1.5 V IC=15mA, IB=1.5mA
- - 25 ps VCB=10V, IE=-1mA, f=30MHz
V
=12.5V, IE=-12.5mA,
CC
f=45MHz
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
14-Mar-2011 Rev. A Page 1 of 3
Page 2
Elektronische Bauelemente

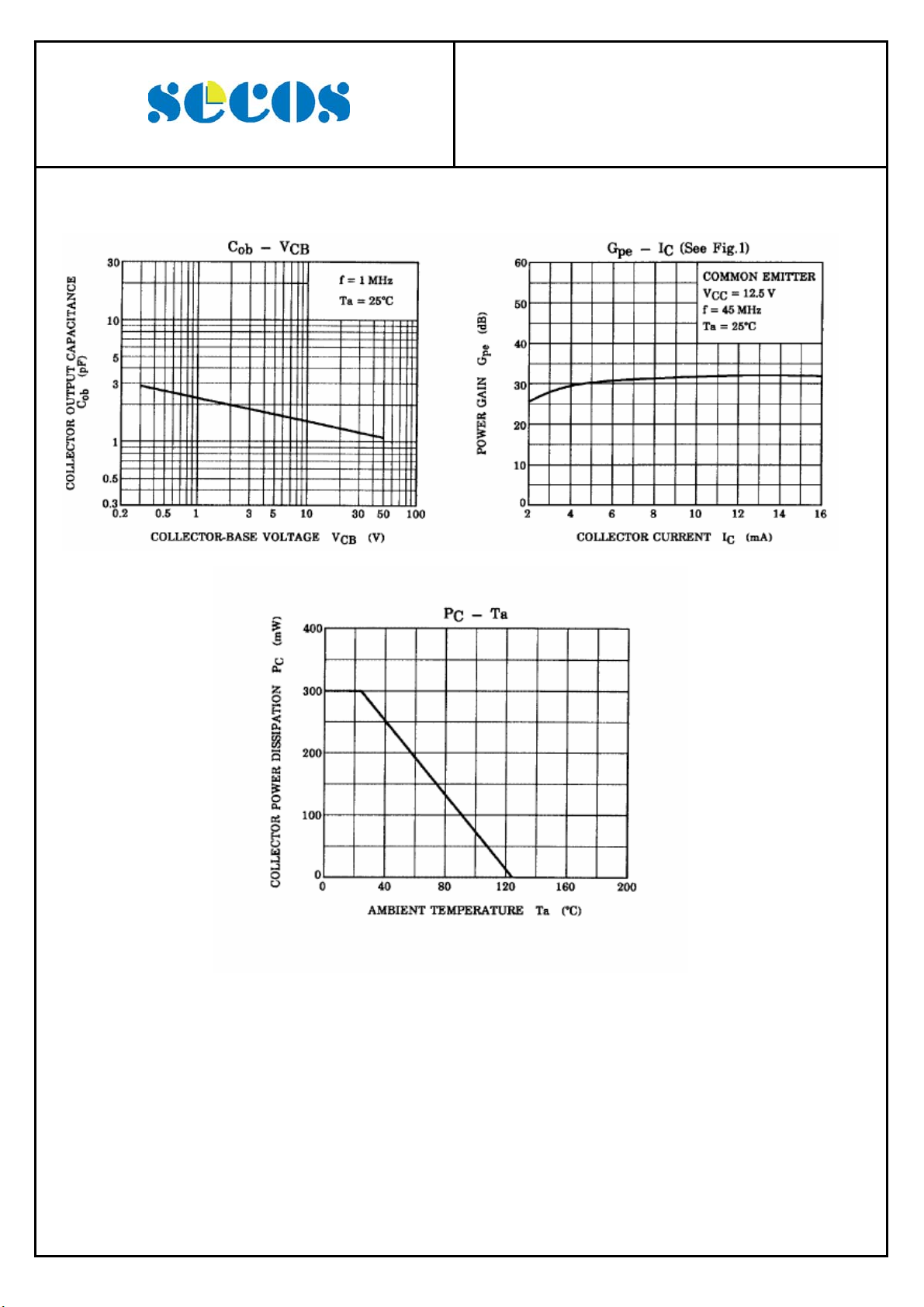

CHARACTERISTIC CURVES
2SC2717
NPN Plastic-Encapsulated Transistor
0.05A , 30V
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
14-Mar-2011 Rev. A Page 2 of 3
Page 3
Elektronische Bauelemente

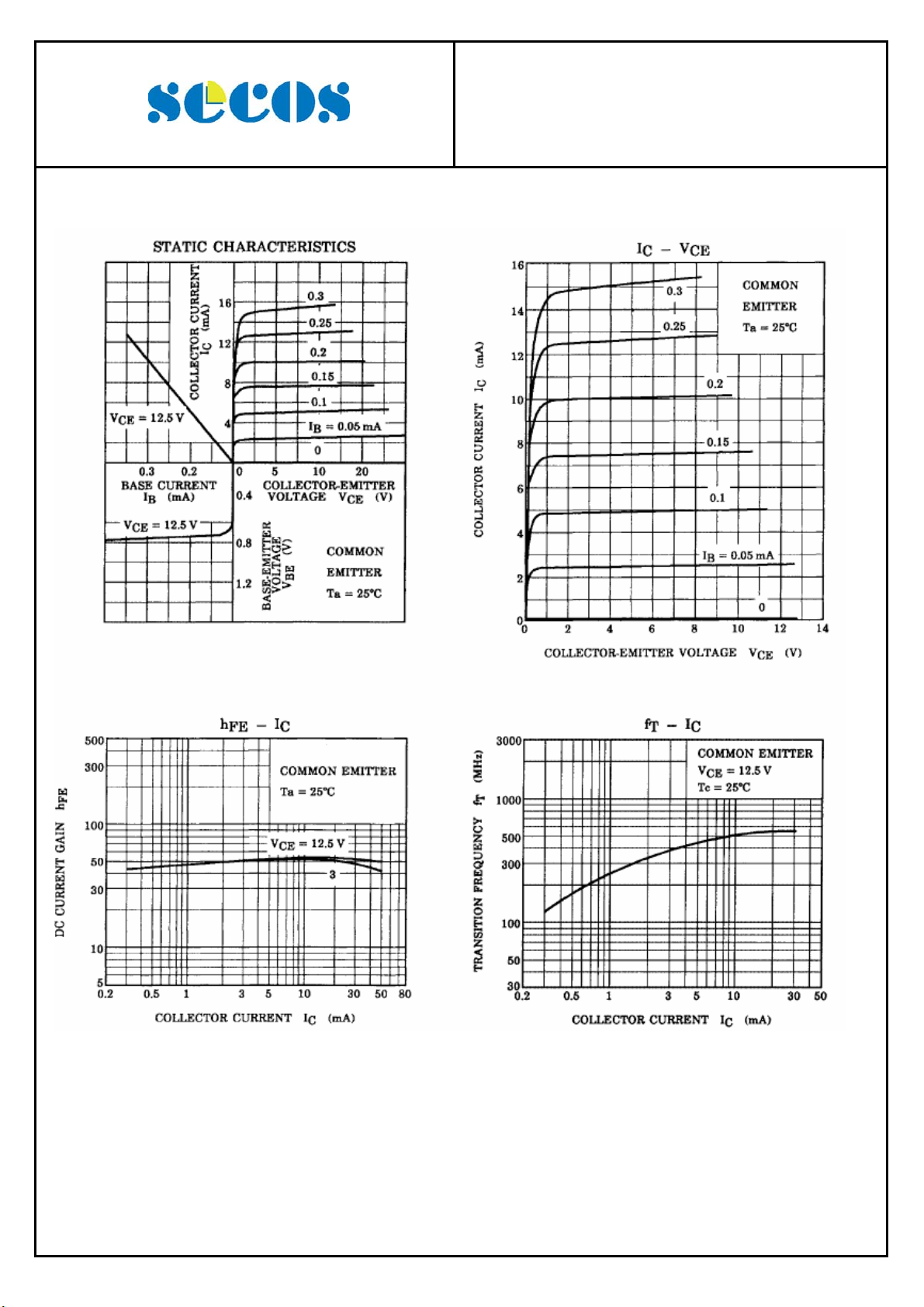

CHARACTERISTIC CURVES
