NPN General Purpose Transistors
P b
Lead(Pb)-Free

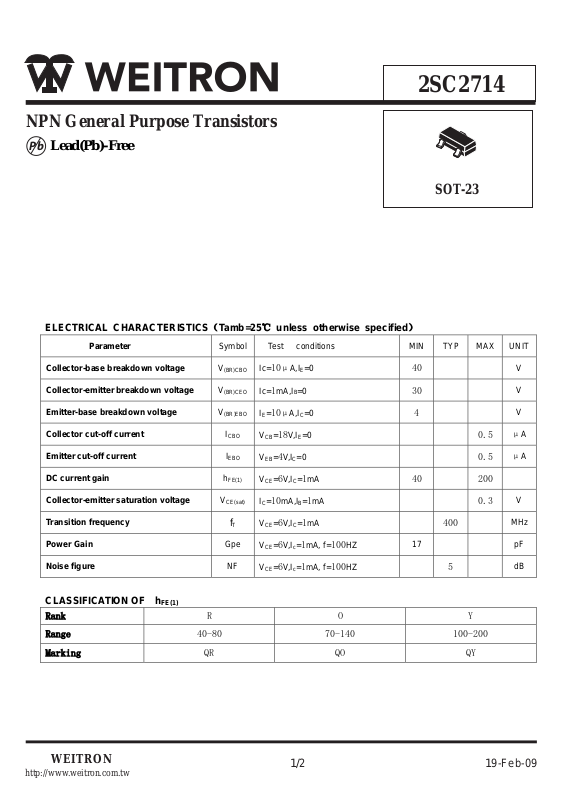

ELECTRICAL CHARACTERISTICS（Tamb=25℃ unless otherwise specified）
2SC2714
SOT-23
Parameter
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-emitter saturation voltage
Transition frequency
Power Gain
Noise figure
Symbol Test conditions MIN TYP MAX UNIT
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
h
FE(1)
V
CE(sat)
Gpe
NF
Ic=10μA,IE=0 40
Ic=1mA,IB=0 30
IE=10μA,IC=0 4
VCB=18V,IE=0
VEB=4V,IC=0
VCE=6V,IC=1mA 40
IC=10mA,IB=1mA
f
VCE=6V,IC=1mA
T
V
V
=6V,Ic=1mA, f=100HZ
CE
=6V,Ic=1mA, f=100HZ
CE
17 pF
V
V
V
400
5
CLASSIFICATION OF h
FE(1)
Rank R O Y
0.5
0.5
200
0.3
μA
μA
V
MHz
dB
Range 40-80 70-140 100-200
Marking QR QO QY
WEITRON
1/2 19-Feb-09
http://www.weitron.com.tw
Page 2
2SC2714

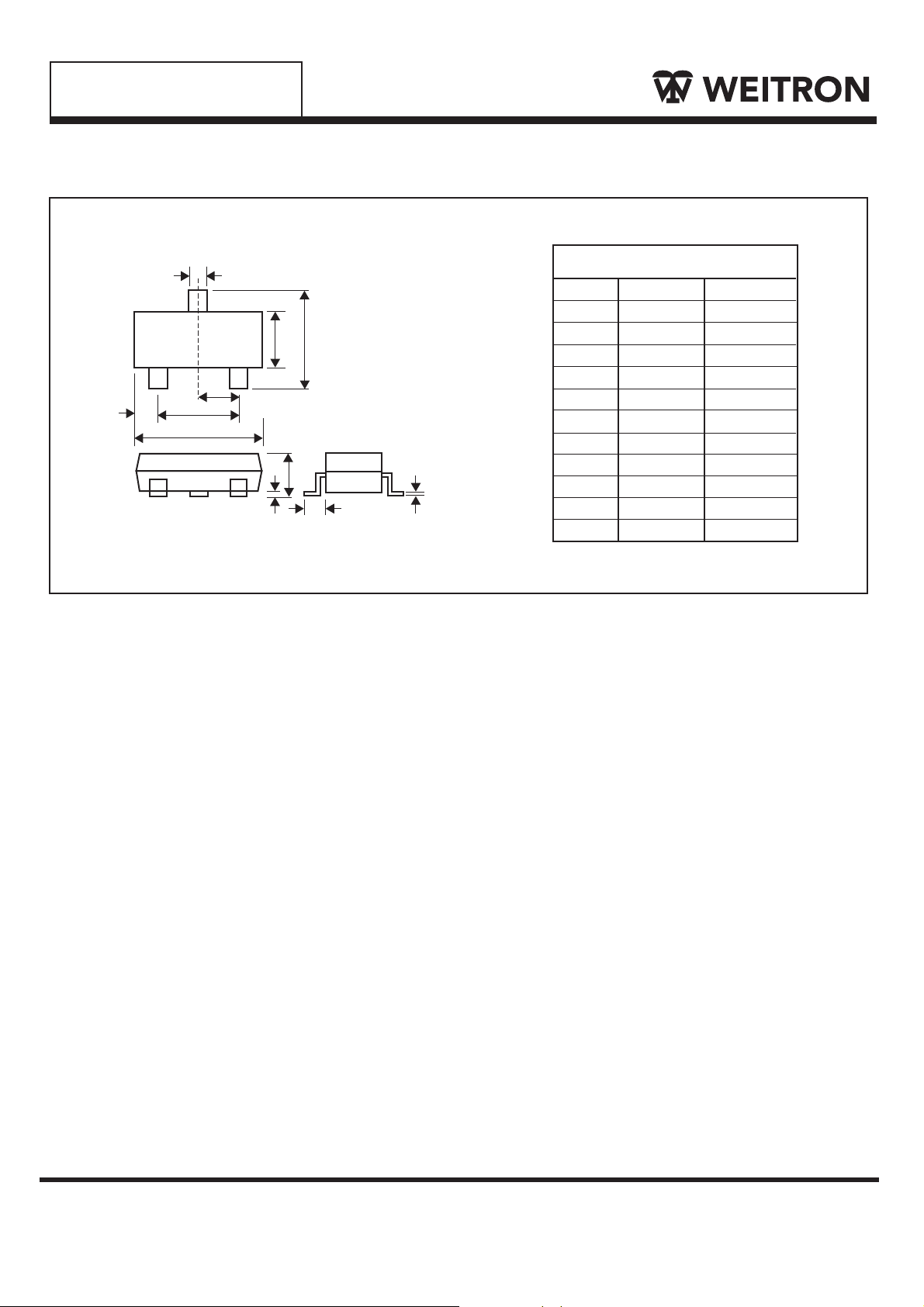

SOT-23 Outline Dimension
A
B
TOP VIEW
D
E
G
H
C
K
L
J
M
Dim
A
B
C
D
E
G
H
J
K
L
M
Min
0.35
1.19
2.10
0.85
0.46
1.70
2.70
0.01
0.89
0.30
0.076
Max
0.51
1.40
3.00
1.05
1.00
2.10
3.10
0.13
1.10
0.61
0.25
SOT-23
WEITRON
http://www.weitron.com.tw
2/2 19-Feb-09
