Page 1
INCHANGE Semiconductor isc Product Specification
www.iscsemi.cn

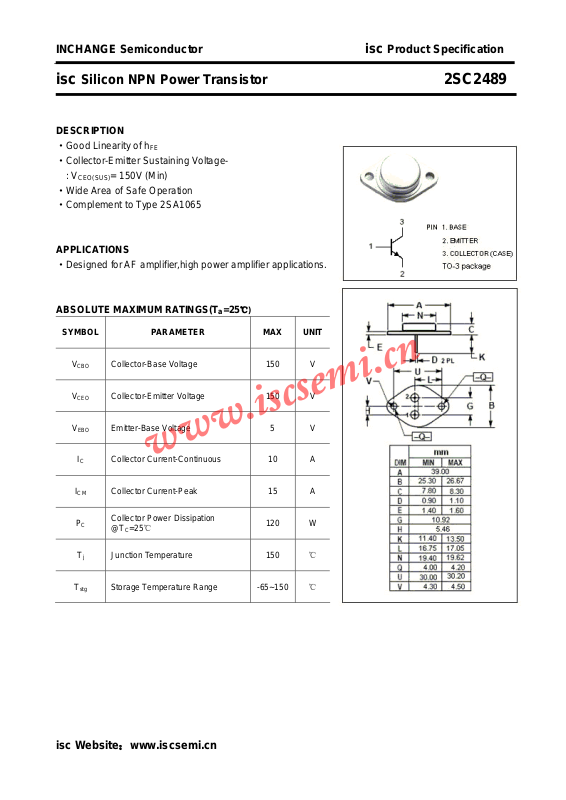

isc Silicon NPN Power Transistor 2SC2489
DESCRIPTION
·Good Linearity of h
·Collector-Emitter Sustaining Voltage-
: V
CEO(SUS)
= 150V (Min)
·Wide Area of Safe Operation
·Complement to Type 2SA1065
APPLICATIONS
·Designed for AF amplifier,high power amplifier applications.
ABSOLUTE MAXIMUM RATINGS(T
FE
=25℃)
a
SYMBOL PARAMETER MAX UNIT
V
V
V
I
T
CBO
CEO
EBO
I
C
CM
P
C
T
stg
Collector-Base Voltage 150 V
Collector-Emitter Voltage 150 V
Emitter-Base Voltage 5 V
Collector Current-Continuous 10 A
Collector Current-Peak 15 A
Collector Power Dissipation
=25℃
@T
C
Junction Temperature 150
j
Storage Temperature Range -65~150
120 W
℃
℃
isc Website：www.iscsemi.cn
Page 2
INCHANGE Semiconductor isc Product Specification
www.iscsemi.cn
isc Silicon NPN Power Transistor 2SC2489
ELECTRICAL CHARACTERISTICS
TC=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
V
V
h
CEO(SUS)
CE
(sat)
BE
(on)
I
CBO
I
EBO
h
FE-1
h
FE-2
f
T
FE-1
Collector-Emitter Sustaining Voltage IC= 0.1A ; IE= 0 150 V
Collector-Emitter Saturation Voltage IC= 8A; IB= 0.8A B 2.0 V
Base-Emitter On Voltage IC= 10A ; VCE= 5V 2.5 V
Collector Cutoff Current VCB= 70V; IE= 0 1 mA
Emitter Cutoff Current VEB= 5V; IC= 0 2 mA
DC Current Gain IC= 2A ; VCE= 5V 40 280
DC Current Gain IC= 10A ; VCE= 5V 30
Current-Gain—Bandwidth Product IC= 0.5A ; VCE= 10V 50 MHz
Classifications
R Q P O
40-80 60-120 90-180 140-280
isc Website：www.iscsemi.cn
