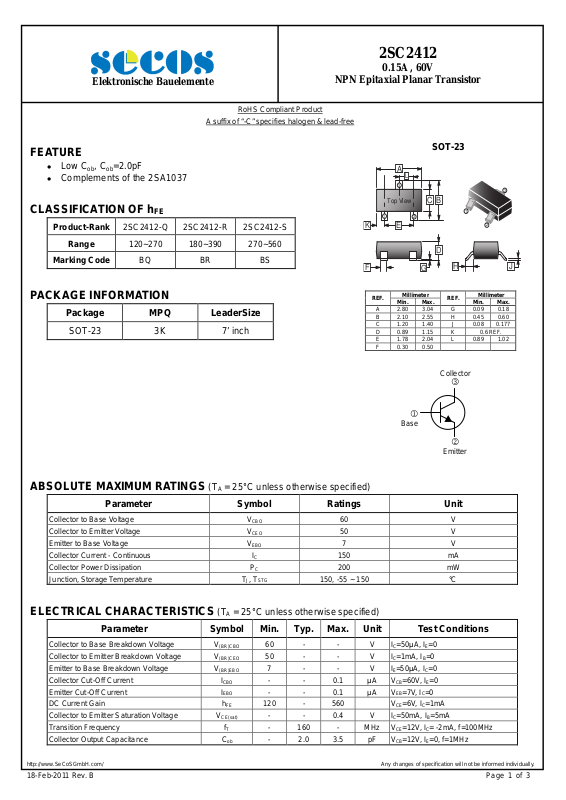

Page 1
1
Base
2
Emitter
3
Top View
A
L
C B
D
G
H J
F
K E
1
2
3
1
2
3
Millimeter
Millimeter
Elektronische Bauelemente
FEATURE
Low Cob, Cob=2.0pF
Complements of the 2SA1037
CLASSIFICATION OF hFE
Product-Rank 2SC2412-Q 2SC2412-R 2SC2412-S
Range 120~270 180~390 270~560
NPN Epitaxial Planar Transistor
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
2SC2412
0.15A , 60V
SOT-23
Marking Code
BQ BR BS
PACKAGE INFORMATION
Package MPQ LeaderSize
SOT-23 3K 7’ inch
REF.
Min. Max.
A 2.80 3.04 G 0.09 0.18
B 2.10 2.55 H 0.45 0.60
C 1.20 1.40 J 0.08 0.177
D 0.89 1.15 K 0.6 REF.
E 1.78 2.04 L 0.89 1.02
F 0.30 0.50
ABSOLUTE MAXIMUM RATINGS
Parameter Symbol Ratings Unit
Collector to Base Voltage V
Collector to Emitter Voltage V
Emitter to Base Voltage V
Collector Current - Continuous IC 150 mA
Collector Power Dissipation PC 200 mW
Junction, Storage Temperature TJ, T
(TA = 25°C unless otherwise specified)
60 V
CBO
50 V
CEO
7 V
EBO
150, -55 ~ 150 °C
STG
REF.
Collector
Min. Max.
ELECTRICAL CHARACTERISTICS
Parameter Symbol Min. Typ. Max. Unit
Collector to Base Breakdown Voltage V
Collector to Emitter Breakdown Voltage V
Emitter to Base Breakdown Voltage V
Collector Cut-Off Current I
Emitter Cut-Off Current I
DC Current Gain hFE 120 - 560 VCE=6V, IC=1mA
Collector to Emitter Saturation Voltage V
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
18-Feb-2011 Rev. B
Transition Frequency fT - 160 - MHz VCE=12V, IC= -2mA, f=100MHz
Collector Output Capacitance Cob - 2.0 3.5 pF VCB=12V, IE=0, f=1MHz
(TA = 25°C unless otherwise specified)
60 - - V IC=50µA, IE=0
(BR)CBO
50 - - V IC=1mA, IB=0
(BR)CEO
7 - - V IE=50µA, IC=0
(BR)EBO
- - 0.1 µA VCB=60V, IE=0
CBO
- - 0.1 µA VEB=7V, IC=0
EBO
- - 0.4 V IC=50mA, IB=5mA
CE(sat)
Test Conditions
Page 1 of 3
Page 2
Elektronische Bauelemente

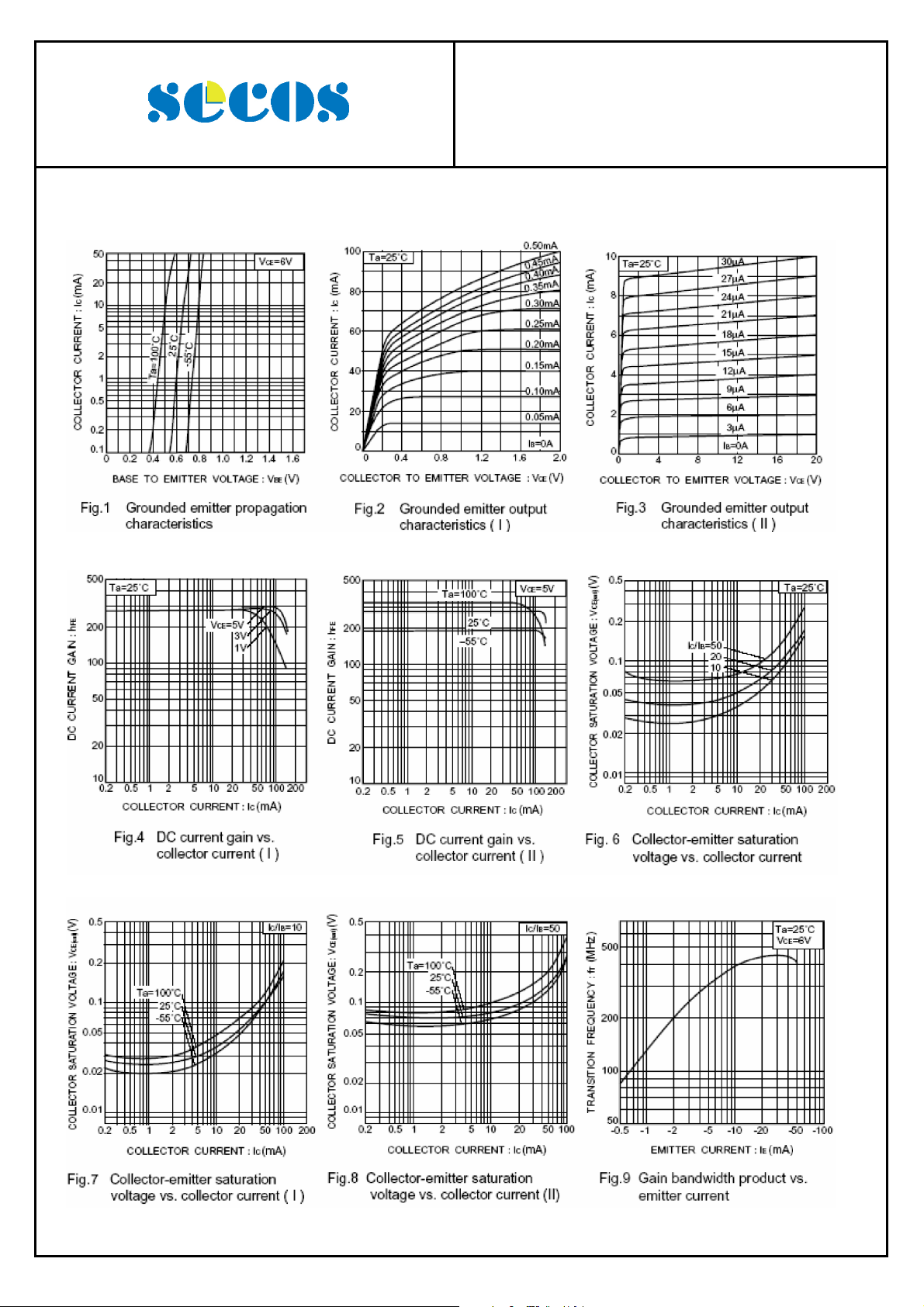

CHARACTERISTIC CURVES
2SC2412
NPN Epitaxial Planar Transistor
0.15A , 60V
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
18-Feb-2011 Rev. B
Page 2 of 3
Page 3
Elektronische Bauelemente

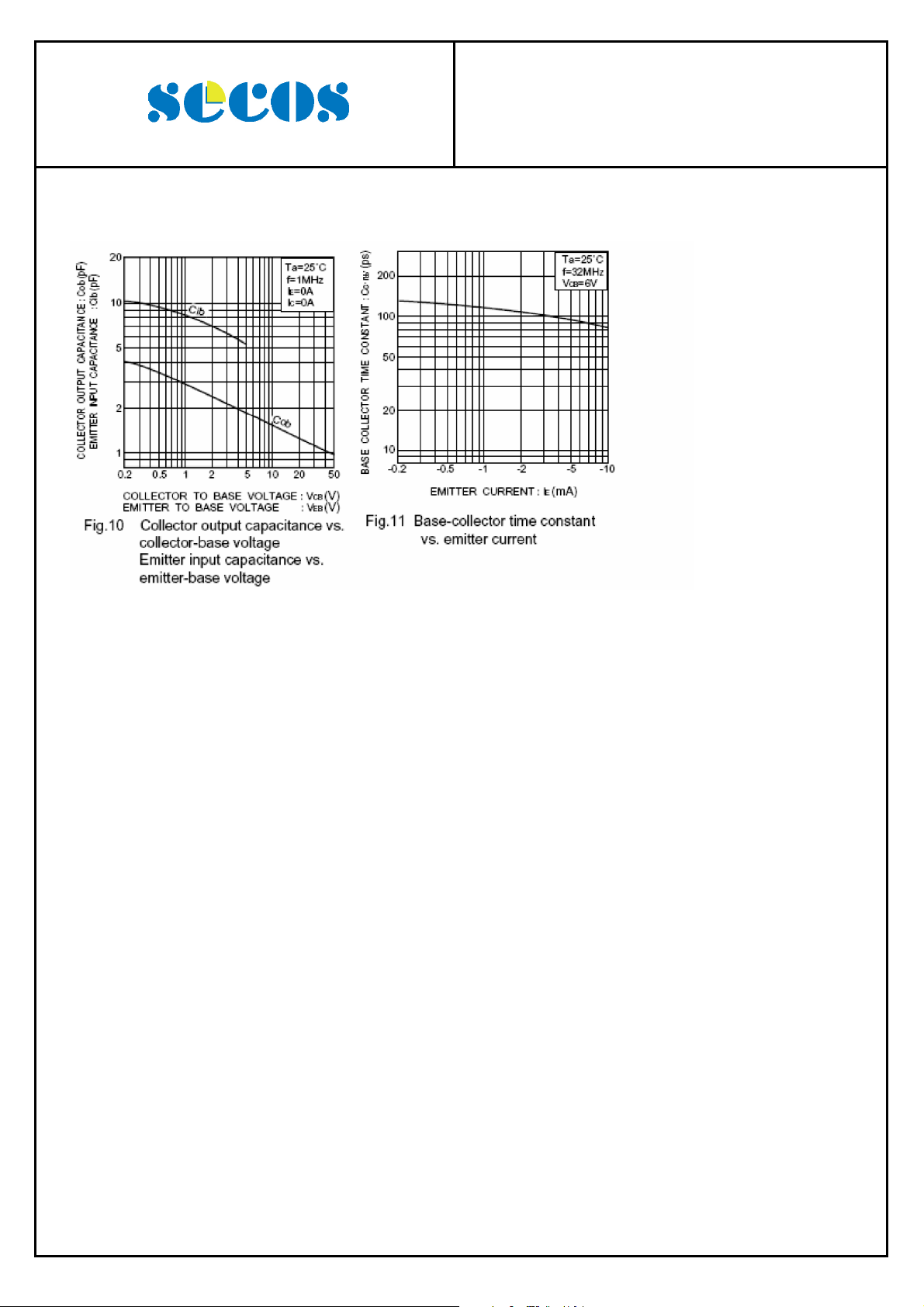

CHARACTERISTIC CURVES
2SC2412
NPN Epitaxial Planar Transistor
0.15A , 60V
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
18-Feb-2011 Rev. B
Page 3 of 3
