固电半导体
INCHANGE SEMICONDUCTOR

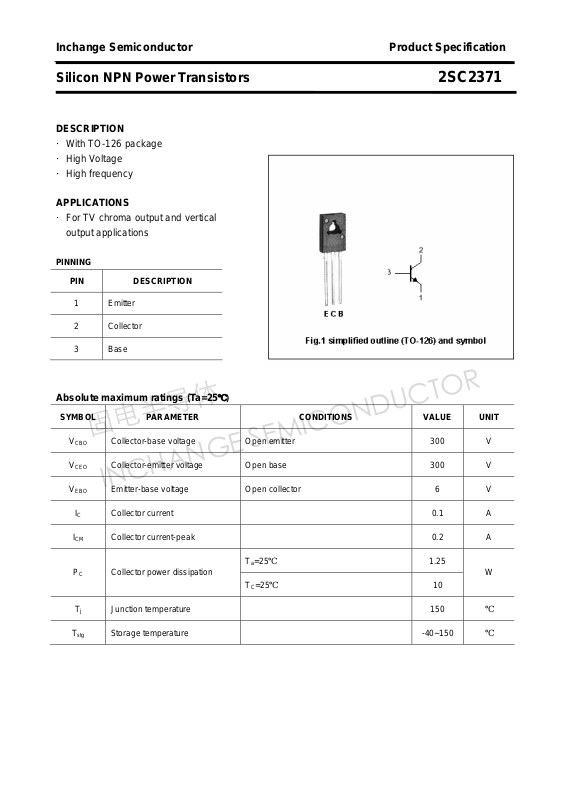

Inchange Semiconductor Product Specification

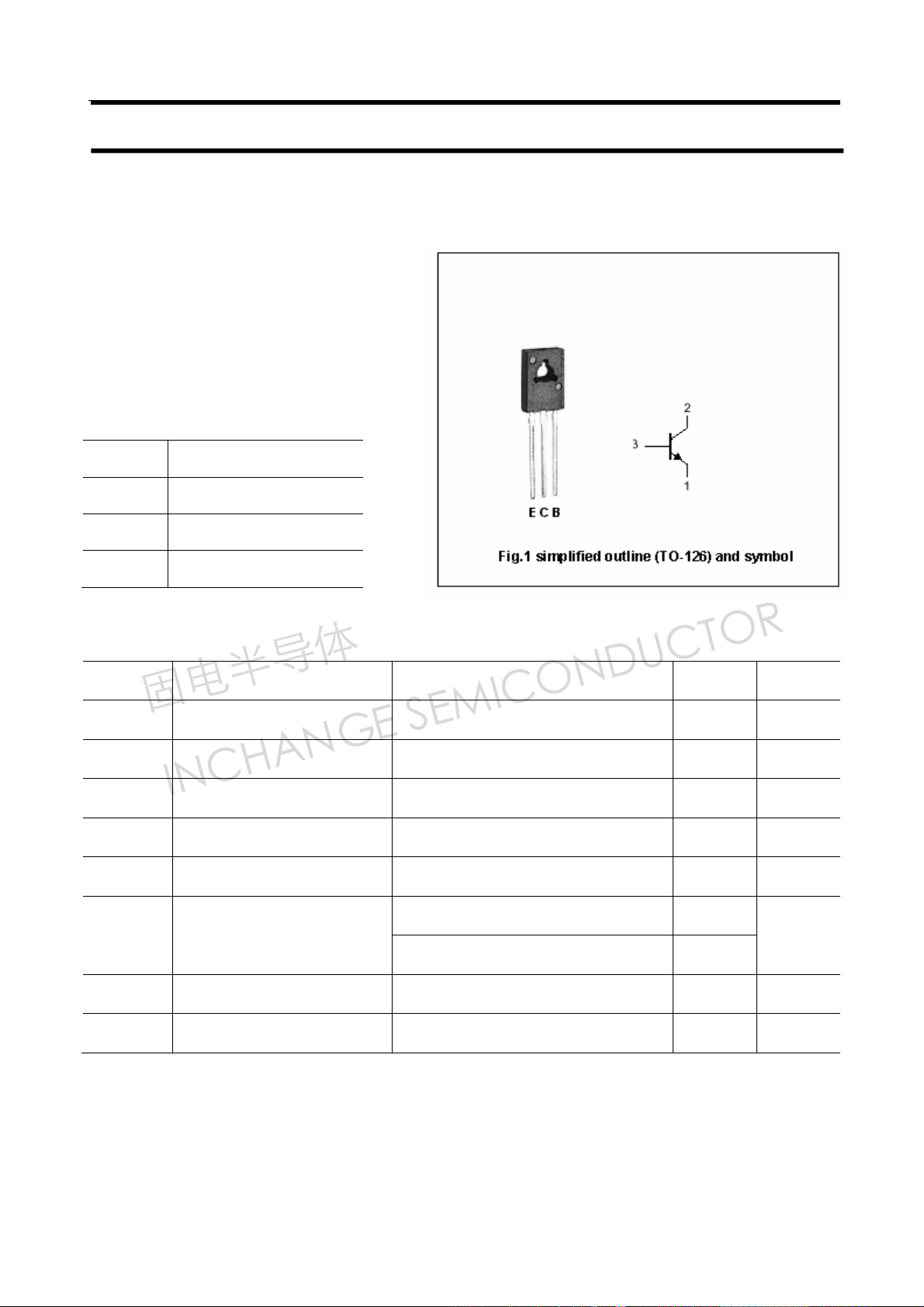

Silicon NPN Power Transistors 2SC2371
DESCRIPTION
·With TO-126 package
·High Voltage
·High frequency
APPLICATIONS
·For TV chroma output and vertical
output applications
PINNING
PIN DESCRIPTION
1
2 Collector
3 Base
Emitter
Absolute maximum ratings (Ta=25
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current 0.1 A
ICM Collector current-peak 0.2 A
PC Collector power dissipation
Collector-base voltage Open emitter 300 V
Collector-emitt er voltage Open base 300 V
Emitter-base voltage Open collector 6 V
℃)
Ta=25℃ 1.25
=25℃ 10
T
C
W
Tj Junction temperature 150 ℃
T
Storage temperature -40~150 ℃
stg
Page 2
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2371
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
Collector-emitter saturation voltage IC=30mA ;IB=3m A 1.5 V
CEsat
VBE Base-emitter on voltage IC=10mA ; VCE=10V 1.2 V
V
V
V
Collector-base breakdown voltage IC=100μA;IE=0 300 V
(BR)CBO
Collector-emitter breakdown voltage IC=1mA; IB=0 300 V
(BR)CEO
Emitter-base breakdown voltage IE=100μA; IC=0 6 V
(BR)EBO
hFE DC current gain IC=10mA ; VCE=10V 40 250
I
Collector cut-off current VCB=200V; IE=0 0.1 μA
CBO
I
Emitter cut-off current VEB=4V; IC=0 0.1 μA
EBO
COB Output capacitance IE=0; VCB=30V;f=1MHz 3 pF
fT Transition frequency IE=10mA ; VCB=30V 50 MHz
2
Page 3
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2371

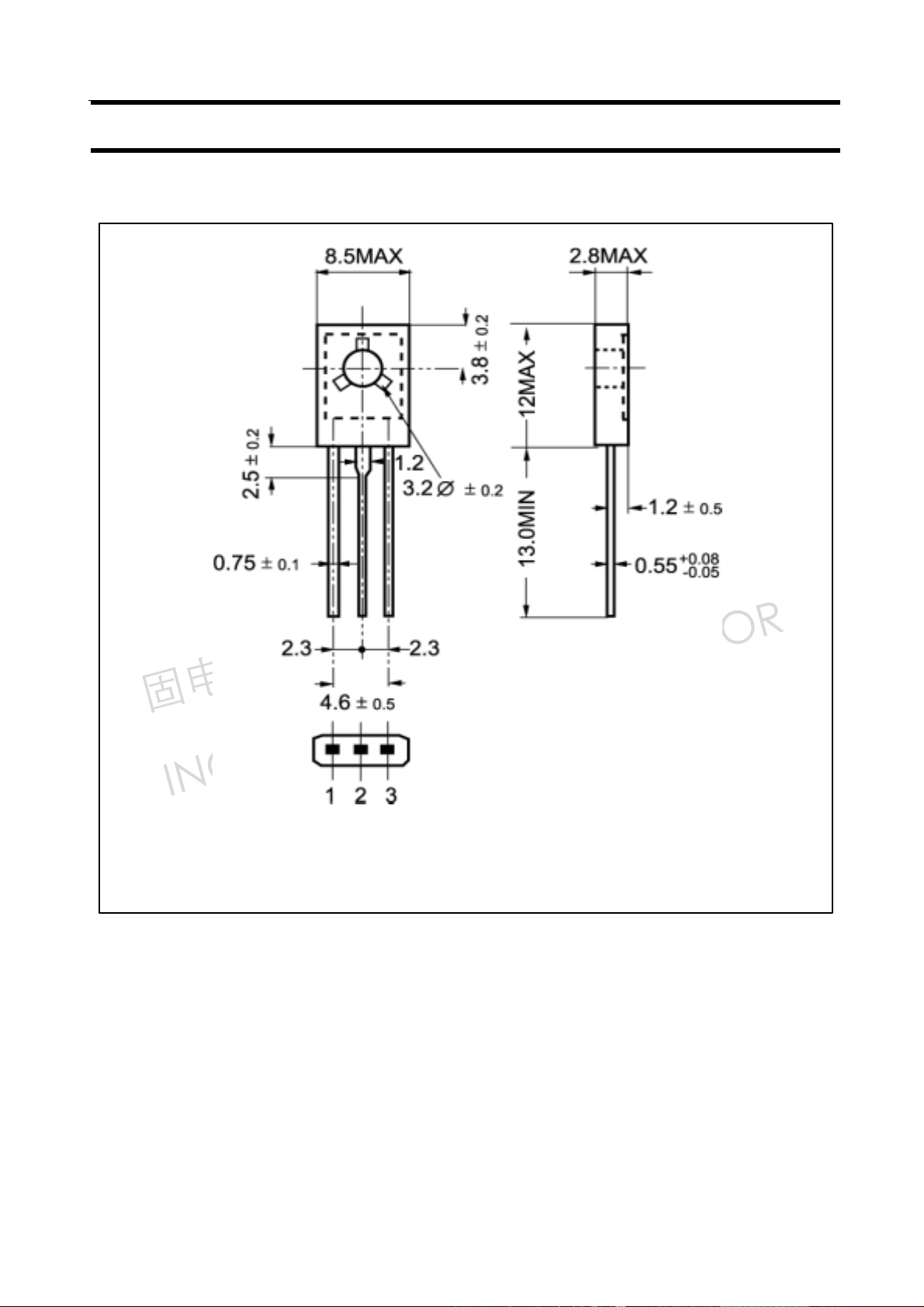

PACKAGE OUTLINE
Fig.2 outline dimensions
3
