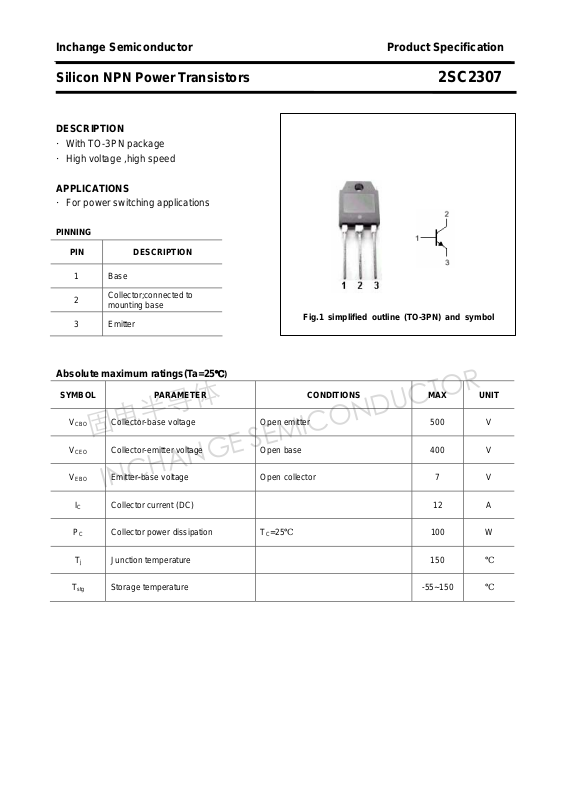

Page 1
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2307
DESCRIPTION
·With TO-3PN package
·High voltage ,high speed
APPLICATIONS
·For power switching applications
PINNING
PIN DESCRIPTION
1
2
3 Emitter
Base
Collector;connected to
mounting base
Fig.1 simplified outline (TO-3PN) and symbol
Absolute maximum ratings(Ta=25
SYMBOL PARAMETER CONDITIONS MAX UNIT
V
CBO
V
CEO
V
EBO
IC Collector current (DC) 12 A
PC Collector power dissipation TC=25℃ 100 W
Collector-base voltage Open emitter 500 V
Collector-emitter voltage Open base 400 V
Emitter-base voltage Open collector 7 V
℃)
Tj Junction temperature 150 ℃
T
Storage temperature -55~150 ℃
stg
Page 2
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2307
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
V
CEsat
V
BEsat
I
CBO
I
EBO
h
FE
fT Transition frequency IC=1A ; VCE=12V 18 MHz
Collector-emitter breakdown voltage IC=25mA ;IB=0 400 V
Collector-base breakdown voltage IC=1mA ;IE=0 500 V
Emitter-base breakdown voltage IE=1mA ;IC=0 7 V
Collector-emitter saturation voltage IC=7A; IB=1.4A 0.5 V
Base-emitter saturation voltage IC=7A; IB=1.4A 1.3 V
Collector cut-off current VCB=500V; IE=0 100
Emitter cut-off current VEB=7V; IC=0 100
DC current gain IC=7A ; VCE=4V 10
μA
μA
2
Page 3
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2307
PACKAGE OUTLINE
Fig.2 outline dimensions (unindicated tolerance:±0.1mm)
3
