Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC1672
DESCRIPTION ·
·With TO-3 package
·High current capability
·Fast switching speed
APPLICATIONS
·Motor control
·Linear and switching applications
PINNING(see fig.2)
PIN DESCRIPTION
1
2 Emitter
3 Collector
Base

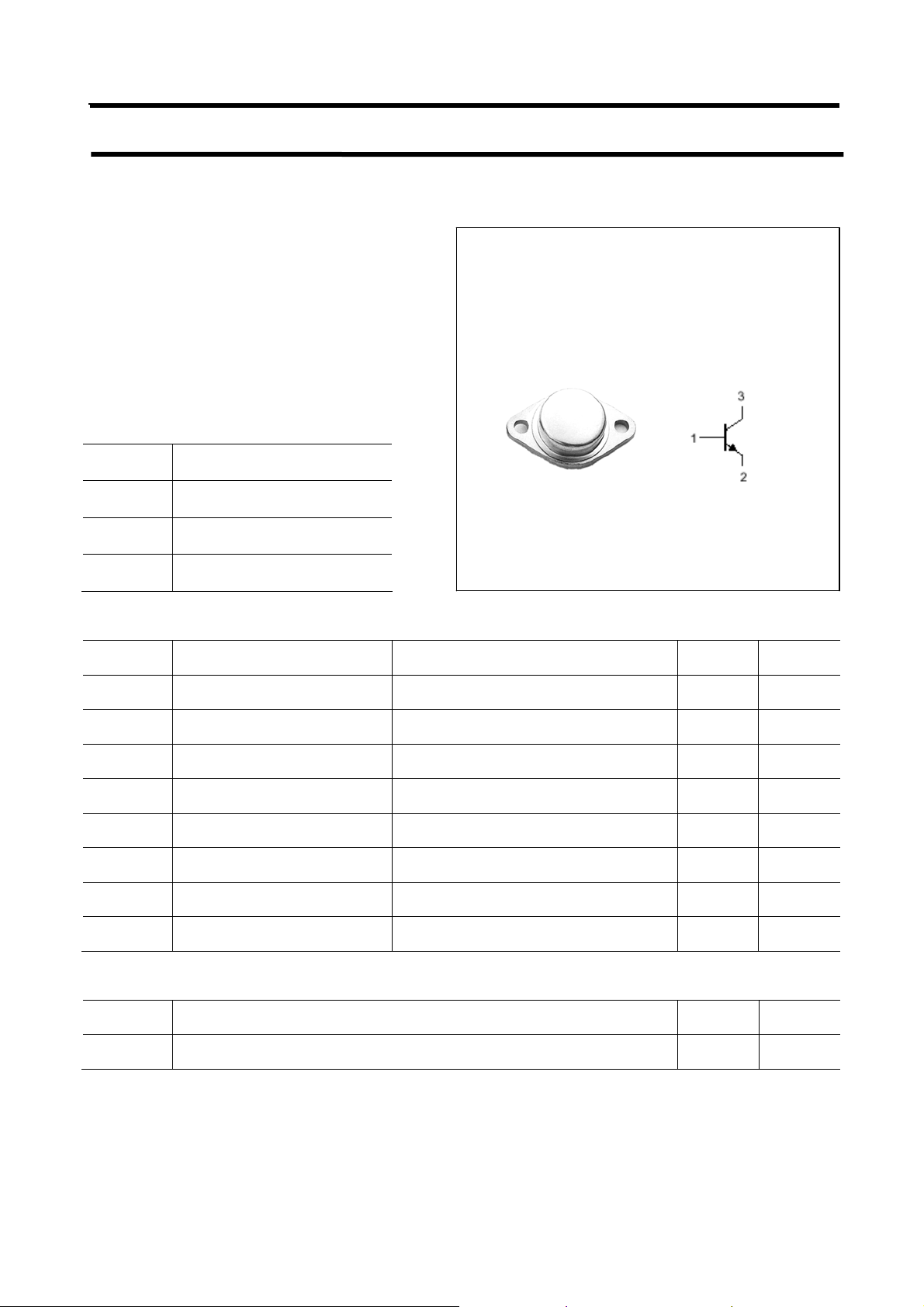

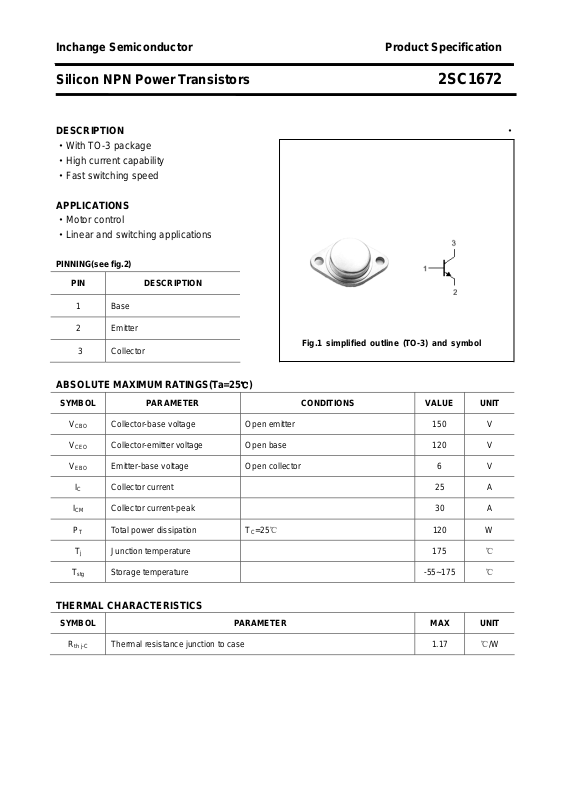

Fig.1 simplified outline (TO-3) and symbol
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current 25 A
ICM Collector current-peak 30 A
PT Total power dissipation TC=25℃ 120 W
Tj Junction temperature 175 ℃
T
stg
Collector-base voltage Open emitter 150 V
Collector-emitter voltage Open base 120 V
Emitter-base voltage Open collector 6 V
Storage temperature -55~175 ℃
THERMAL CHARACTERISTICS
SYMBOL PARAMETER MAX UNIT
R
Thermal resistance junction to case 1.17 ℃/W
th j-C
Page 2
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC1672
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
CEO(SUS)
V
(BR)EBO
V
CEsat-1
V
CEsat-2
V
BEsat
I
CBO
I
EBO
h
FE-1
h
FE-2
Collector-emitter sustaining voltage IC=0.1A; IB=0 120 V
Emitter-base breakdown voltage IE=1mA; IC=0 6 V
Collector-emitter saturation voltage IC=10A;IB=1A 0.6 V
Collector-emitter saturation voltage IC=20A;IB=2A 1.2 V
Base-emitter saturation voltage IC=20A;IB=2A 2.0 V
Collector cut-off current VCB=150V; IE=0 0.1 mA
Emitter cut-off current VEB=6V; IC=0 0.1 mA
DC current gain IC=13A ; VCE=2V 20 100
DC current gain IC=20A ; VCE=4V 10
2
Page 3
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC1672
PACKAGE OUTLINE

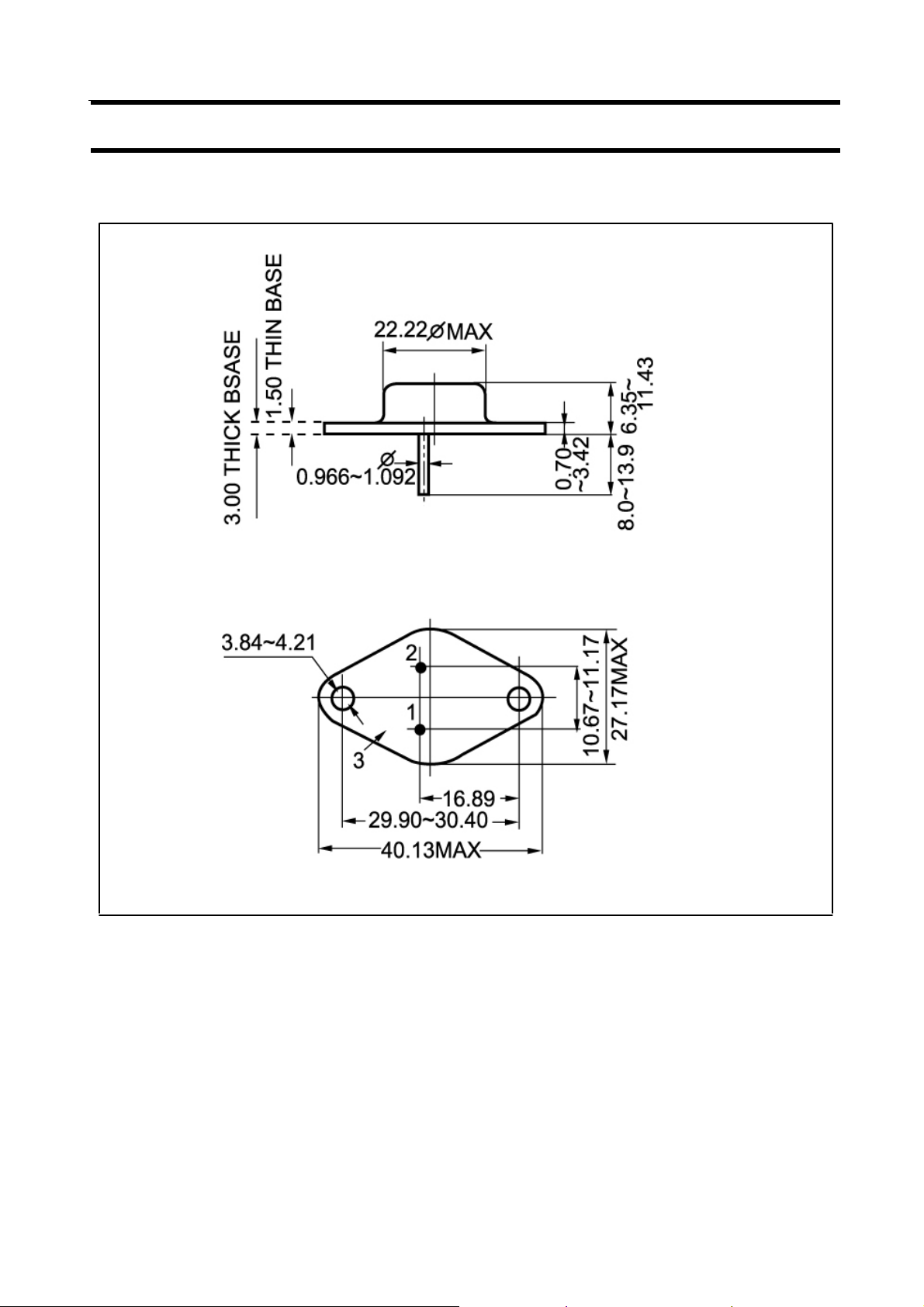

Fig.2 Outline dimensions
3
