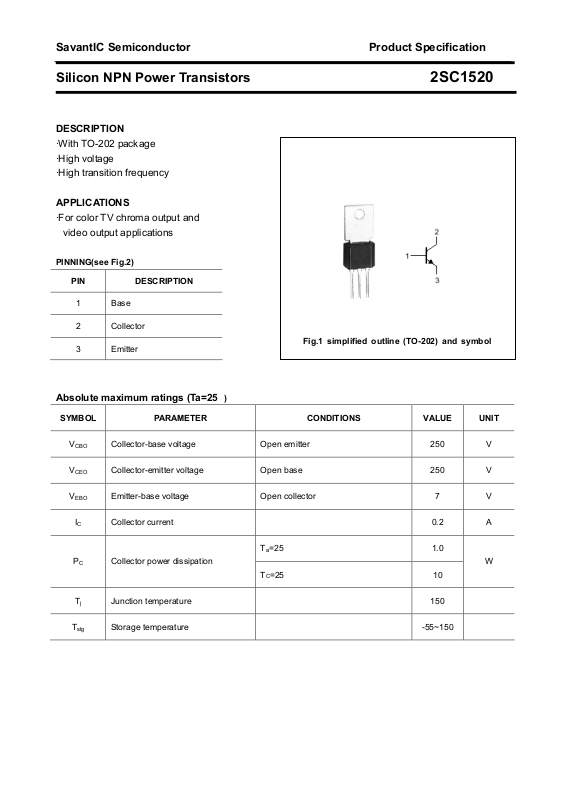

SavantIC Semiconductor Product Specification
Silicon NPN Power Transistors 2SC1520
ESCRIPTION
D
·With TO-202 package
·High voltage
·High transition frequency
APPLICATIONS
·For color TV chroma output and
video output applications
PINNING(see Fig.2)
PIN DESCRIPTION
1 Base
2 Collector
3 Emitter

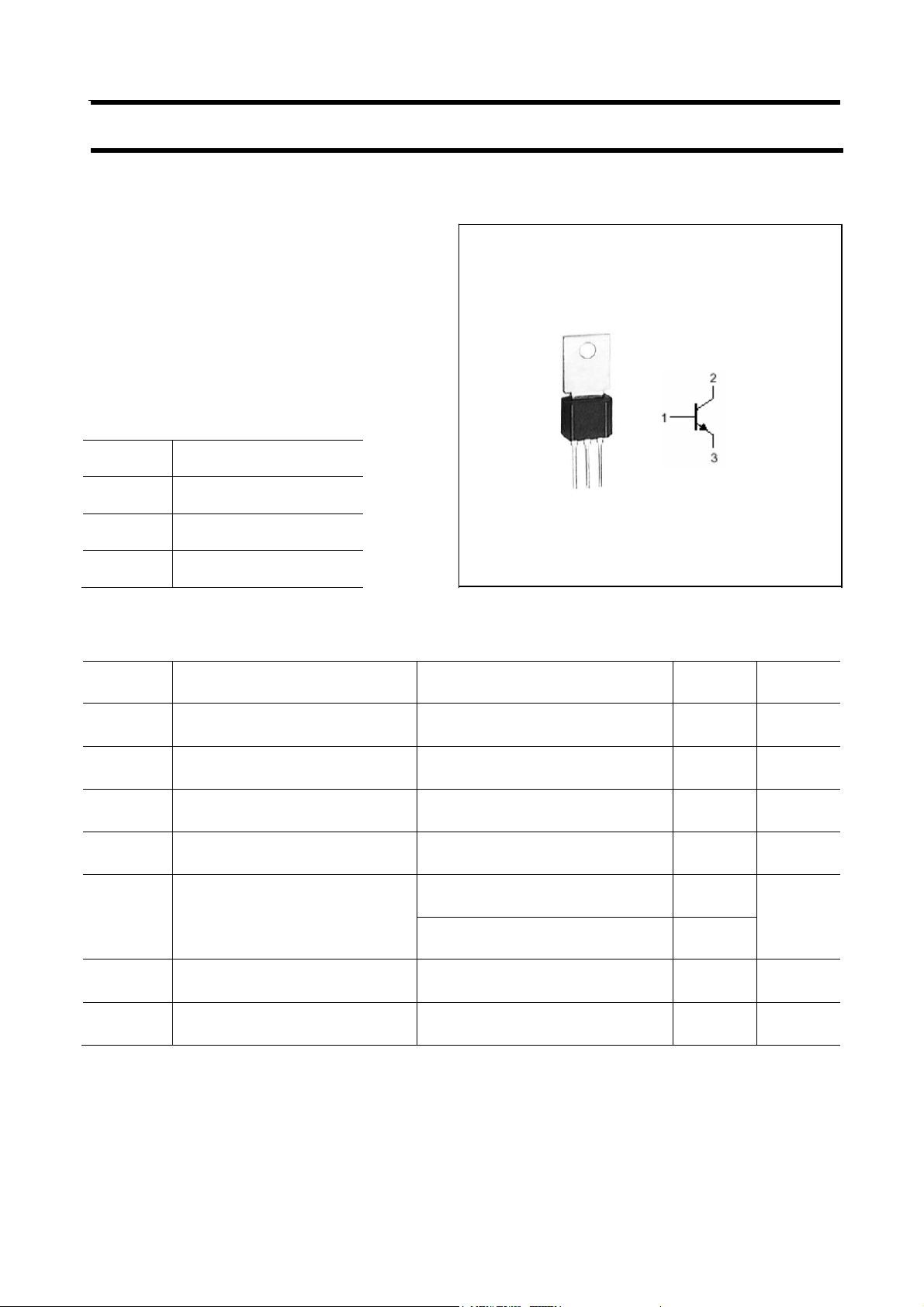

Fig.1 simplified outline (TO-202) and symbol
Absolute maximum ratings (Ta=25)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
Collector-base voltage Open emitter 250 V
CBO
V
Collector-emitter voltage Open base 250 V
CEO
V
Emitter-base voltage Open collector 7 V
EBO
I
C
P
C
T
j
Collector current 0.2 A
Ta=25 1.0
Collector power dissipation
=25 10
T
C
Junction temperature 150
W
T
Storage temperature -55~150
stg
Page 2
SavantIC Semiconductor Product Specification
Silicon NPN Power Transistors 2SC1520
CHARACTERISTICS
Tj=25 unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
Collector-emitter saturation voltage IC=50mA ;IB=5m A 2.0 V
CEsat
V
Collector-emitter breakdown voltage IC=1mA; IB=0 250 V
(BR)CEO
I
Collector cut-off current VCB=150V ;IE=0 0.1 µA
CBO
I
Emitter cut-off current VEB=5V; IC=0 0.1 µA
EBO
hFE DC current gain IC=10mA ; VCE=10V 40 200
COB Output capacitance IE=0; VCB=50V;f=1MHz 4.5 pF
f
T
Transition frequency IC=10mA ; VCB=30V 80 MHz
2
Page 3
SavantIC Semiconductor Product Specification
Silicon NPN Power Transistors 2SC1520
PACKAGE OUTLINE

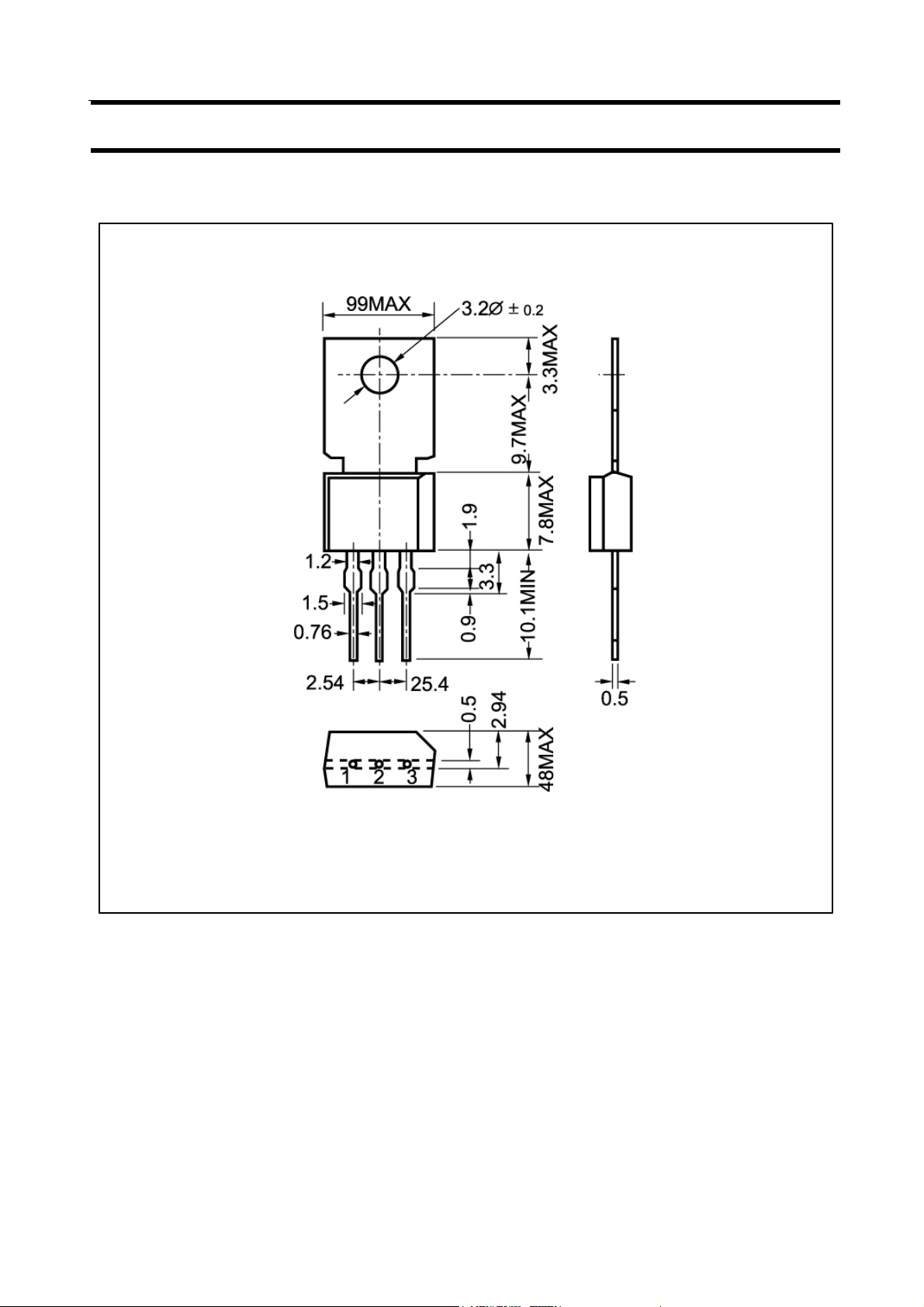

Fig.2 outline dimensions
3
