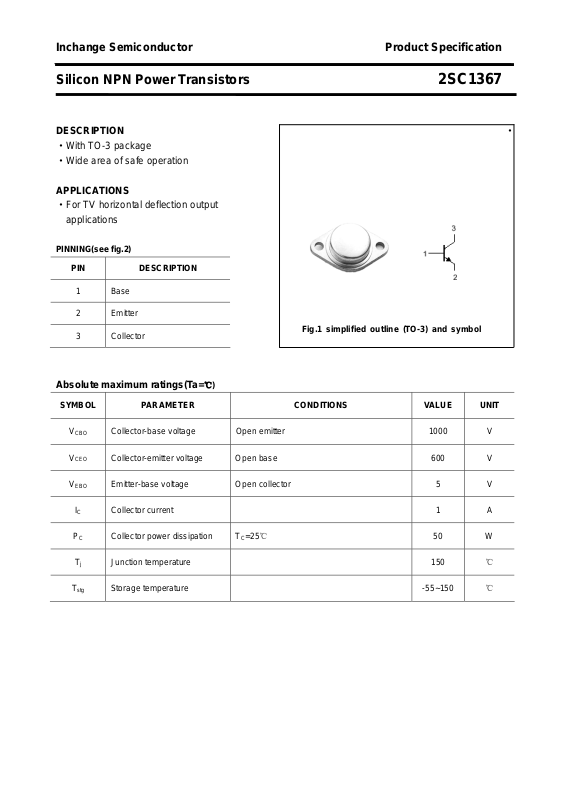

Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC1367
DESCRIPTION ·
·With TO-3 package
·Wide area of safe operation
APPLICATIONS
·For TV horizontal deflection output
applications
PINNING(see fig.2)
PIN DESCRIPTION
1
2 Emitter
3 Collector
Base

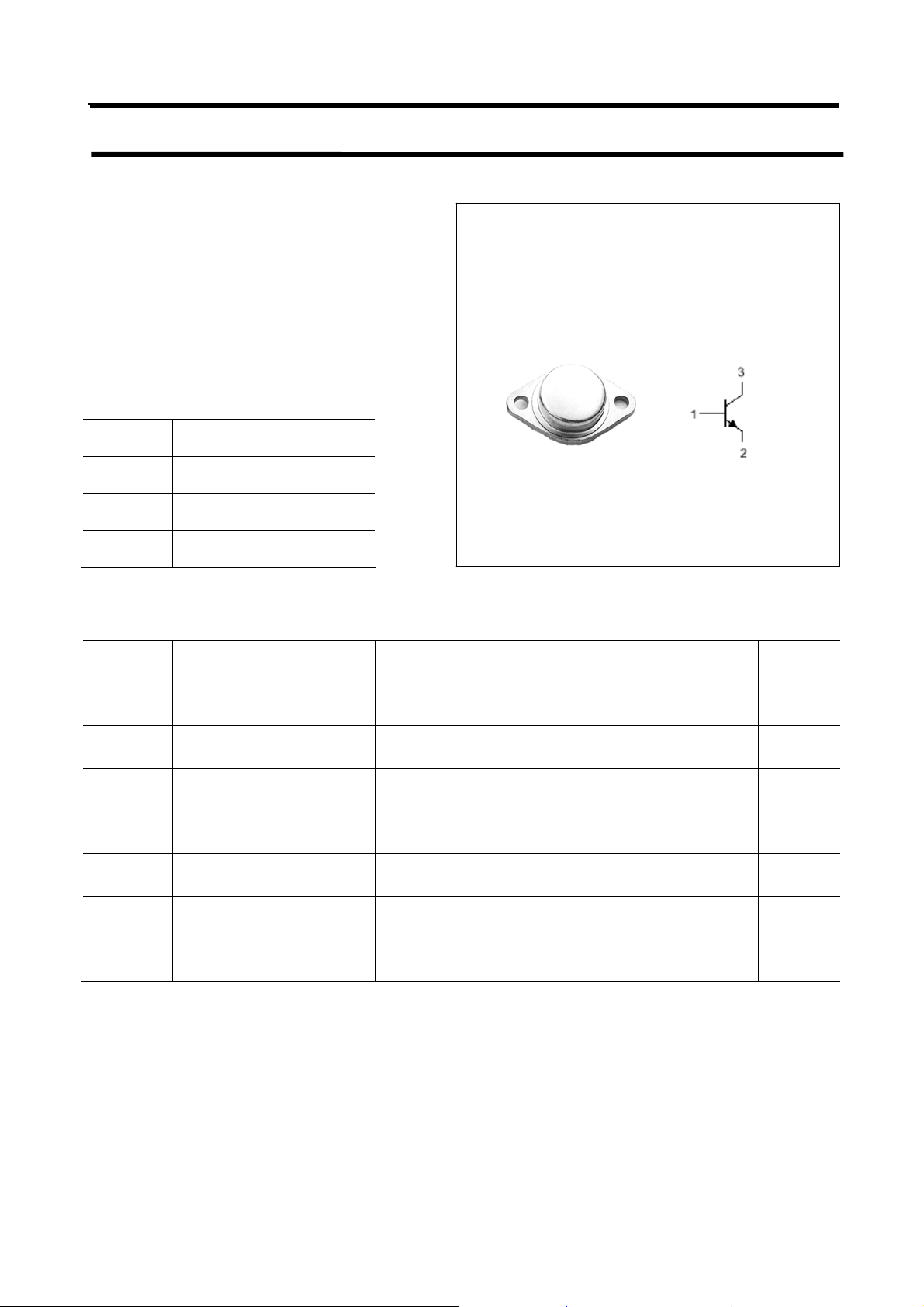

Fig.1 simplified outline (TO-3) and symbol
Absolute maximum ratings(Ta=℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current 1 A
PC Collector power dissipation
Tj Junction temperature 150
Collector-base voltage Open emitter 1000 V
Collector-emitter voltage Open base 600 V
Emitter-base voltage Open collector 5 V
T
=25℃
C
50 W
℃
T
Storage temperature -55~150
stg
℃
Page 2
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC1367
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
CEO(SUS)
V
(BR)EBO
V
CEsat
V
BEsat
I
CBO
I
EBO
h
FE
Collector-emitter sustaining voltage IC=100mA; IB=0 600 V
Emitter-base breakdown votage IE=1mA; IC=0 5 V
Collector-emitter saturation voltage IC=0.5 A;IB=0.1 A 5.0 V
Base-emitter saturation voltage IC=0.5 A;IB=0.1 A 1.5 V
Collector cut-off current VCB=1000V;IE=0 0.1 mA
Emitter cut-off current VEB=5V; IC=0 0.1 mA
DC current gain IC=0.2A ; VCE=10V 30 120
fT Transition frequency IC=0.1A ; VCE=10V 6 MHz
2
Page 3
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC1367
PACKAGE OUTLINE

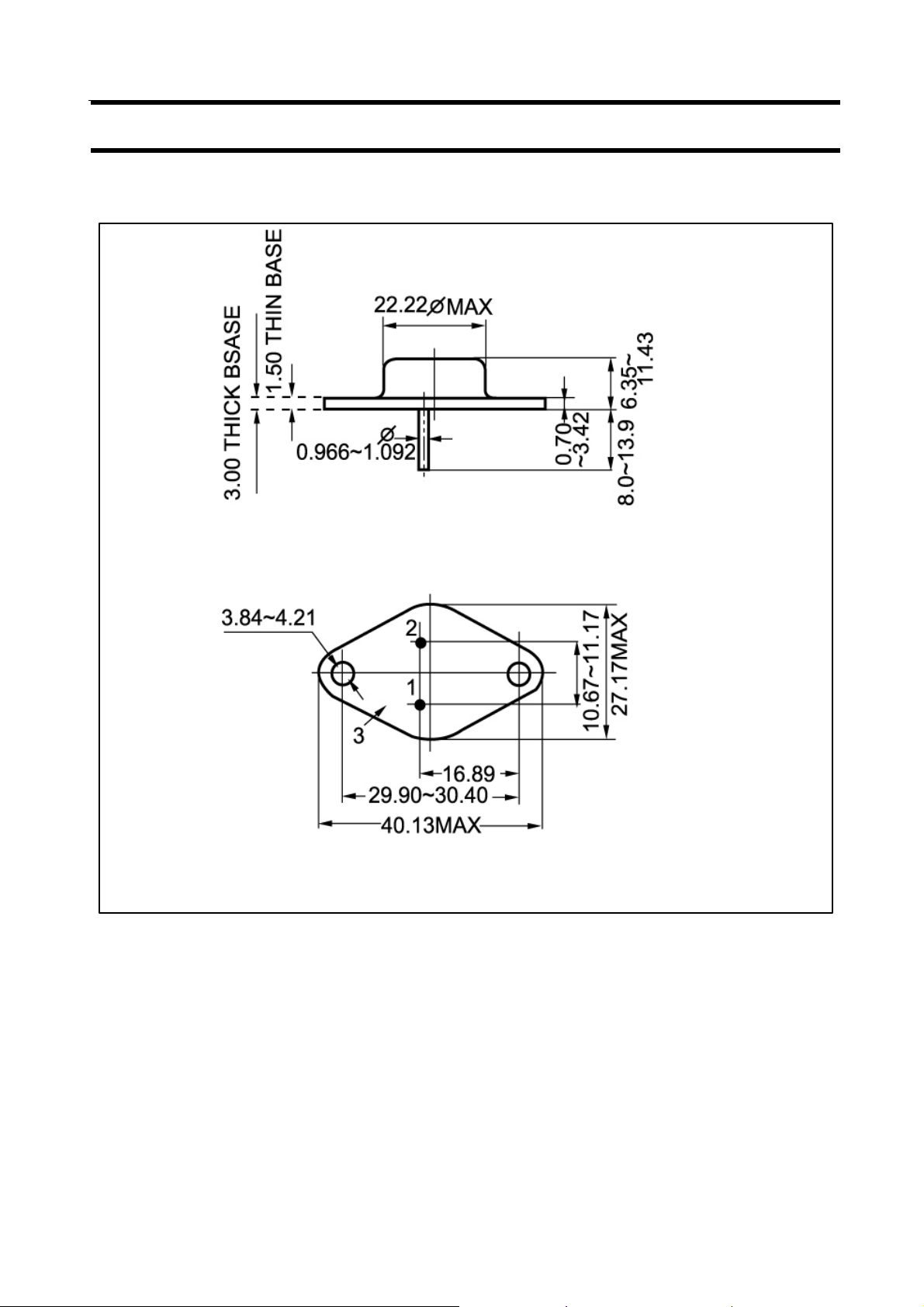

Fig.2 Outline dimensions
3
