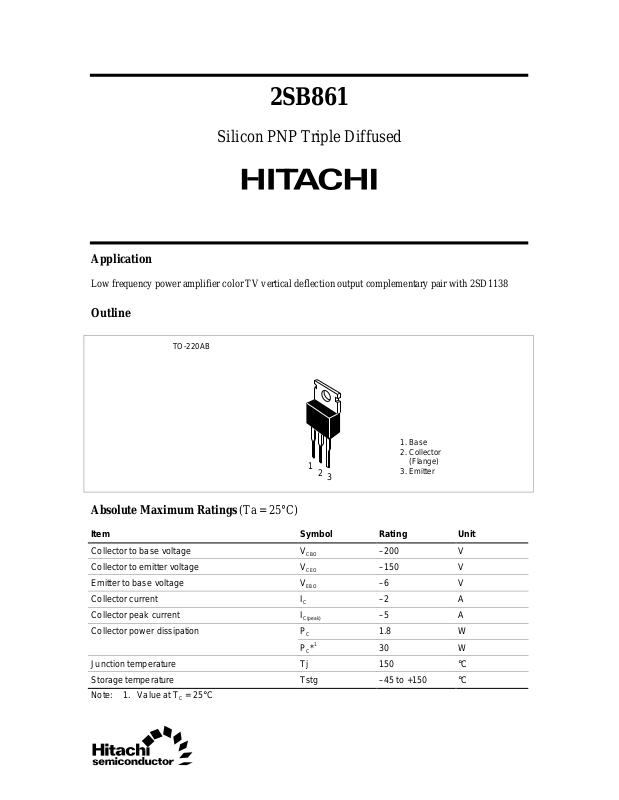

Datasheet 2SB861 Datasheet (HIT)

2SB861

Silicon PNP Triple Diffused

Application

Low frequency power amplifier color TV vertical deflection output complementary pair with 2SD1138

Outline

TO-220AB

1. Base

2. Collector

1

2

3

(Flange)

3. Emitter

Absolute Maximum Ratings (Ta = 25°C)

Item Symbol Rating Unit

Collector to base voltage V
Collector to emitter voltage V
Emitter to base voltage V
Collector current I
Collector peak current I
Collector power dissipation P

CBO

CEO

EBO

C

C(peak)

C

PC*

1

Junction temperature Tj 150 °C
Storage temperature Tstg –45 to +150 °C

Note: 1. Value at TC = 25°C

–200 V
–150 V
–6 V
–2 A
–5 A

1.8 W
30 W

2SB861

Electrical Characteristics (Ta = 25°C)

Item Symbol Min Typ Max Unit Test conditions

Collector to emitter breakdown

V

(BR)CBO

voltage
Emitter to base breakdown

V

(BR)EBO

voltage
Collector cutoff current I
DC current transfer ratio h

Collector to emitter saturation

h
V

CBO

FE1

FE2

CE(sat)

voltage
Base to emitter voltage V

BE

Collector output capacitance Cob — 30 — pF VCB = –100 V, IE = 0,

Notes: 1. The 2SB861 is grouped by h

2. Pulse test

BC

60 to 120 100 to 200

–150 — — V IC = –50 mA, RBE = ∞

–6 — — V IE = –5 mA, IC = 0

——–1µAVCB = –120 V, IE = 0

1

*

60 — 200 VCE = –4 V, IC = –50 mA
60 — — VCE = –10 V, IC = –500 mA*
——–3V I

= –500 mA, IB = –50 mA

C

——–1V VCE = –4 V, IC = –50 mA

f = 1 MHz

as follows.

FE1

2

Maximum Collector Dissipation Curve

40

30

20

T

C

10

Collector power dissipation Pc (W)

0

1.8 W

50

Ta

100

Ambient temperature Ta (°C)

Case temperature T

150

(°C)

C

200

Area of Safe Operation

–10

–5

IC

(Continuous)

(A)

C

–2

(–15 V, –2 A)

(max)

DC Operation (T

–1.0
–0.5

C

= 25°C)

(–60 V, –0.4 A)

–0.2

Collector Current I

–0.1

(–150 V, –65 mA)

–0.05

–2 –5 –10 –20 –50 –100–200

Collector to emitter Voltage V

CE

(V)

2

2SB861

Typical Output Characteristics

–1.0

–0.8

(A)

C

–0.6

TC = 25°C

–8

–7

–6

–5

–4
–3

–0.4

–2

Collector Current I

–0.2

–1 mA
IB = 0

0 –4 –8 –12 –16 –20

Collector to emitter Voltage V

DC Current Transfer Ratio vs.

Collector Current

500

V

= –4 V

FE

CE

200

100

TC = 75°C

25

–25

50

20

CE

(V)

Typical Transfer Characteristics

–1,000

VCE = –4 V

–500

(mA)

C

TC = 75°C

–200

25 –25

–100

–50

–20

Collector current I

–10

–5

–0.4 –0.5 –0.6 –0.7 –0.8 –0.9 –1.0

Base to emitter voltage V

Collector to Emitter Saturation

Voltage vs. Collector Current

–10

IC = 10 I

B

–5

–2

(V)

–1.0

CE (sat)

V

–0.5

TC = 75°C

–25

BE

(V)

25

DC current transfer ratio h

10

5

–10 –20 –50 –100 –200 –500–1,000

Collector current IC (mA)

–0.2

Collector to emitter saturation voltage

–0.1

–10 –20 –50 –100 –200 –500–1,000

Collector current I

C

(mA)

3

11.5 MAX

Unit: mm

2.79 ± 0.218.5 ± 0.57.8 ± 0.5

1.27

2.54 ± 0.5

10.16 ± 0.2

9.5

8.0

φ 3.6

-0.08

1.5 MAX

0.76 ± 0.1

2.54 ± 0.5

+0.2

6.4

–0.1

+0.1

4.44 ± 0.2

1.26 ± 0.15

2.7 MAX

14.0 ± 0.5 15.0 ± 0.3

0.5 ± 0.1

Hitachi Code
JEDEC
EIAJ
Weight

(reference value)

TO-220AB
Conforms
Conforms

1.8 g
