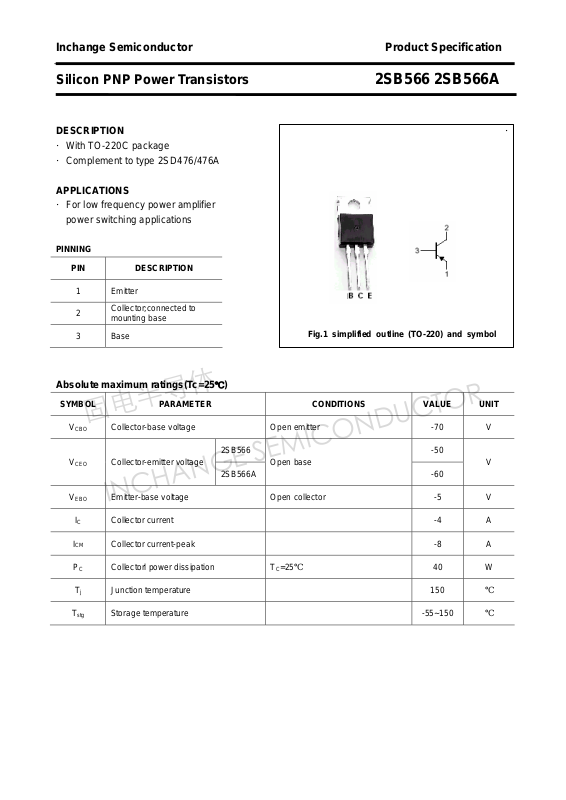

Page 1
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon PNP Power Transistors 2SB566 2SB566A
DESCRIPTION ·
·With TO-220C package
·Complement to type 2SD476/476A
APPLICATIONS
·For low frequency power amplifier
power switching applications
PINNING
PIN DESCRIPTION
1
2
3 Base
Emitter
Collector;connected to
mounting base
Fig.1 simplified outline (TO-220) and symbol
Absolute maximum ratings(Tc=25
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current -4 A
ICM Collector current-peak
Collector-base voltage Open emitter -70 V
Collector-emitter voltage
Emitter-base voltage Open collector -5 V
℃)
2SB566 -50
2SB566A
Open base
-60
-8 A
V
T
PC Collectorl power dissipation
Tj Junction temperature 150
T
Storage temperature -55~150
stg
=25℃
C
40 W
℃
℃
Page 2
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon PNP Power Transistors 2SB566 2SB566A
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
V
CEsat
V
BEsat
I
CBO
h
FE-1
h
FE-2
fT Transition frequency IC=-0.5A ; VCE=-4V 15 MHz
Switching times
ton Turn-on time 0.3 μs
Collector-base breakdown voltage IC=-10μA ; IE=0 -70 V
Collector-emitter
breakdown voltage
Emitter-base breakdown votage IE=-10μA; IC=0 -5 V
Collector-emitter saturation voltage IC=-2 A;IB=-0.2 A -1.0 V
Base-emitter saturation voltage IC=-2 A;IB=-0.2 A -1.2 V
Collector cut-off current VCB=-50V; IE=0 -1 μA
DC current gain IC=-0.1A ; VCE=-4V 35
DC current gain IC=-1A ; VCE=-4V 60 200
2SB566 -50
=-50mA; RBE=∞
2SB566A
I
C
-60
V
t
Turn-off time 3.0 μs
off
t
Storage time
stg
h
classifications
FE-2
B C
60-120 100-200
=-0.5A ; VCC=-10.5V
I
C
=-IB2=-0.05 A
I
B1
2.5 μs
2
Page 3
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon PNP Power Transistors 2SB566 2SB566A
PACKAGE OUTLINE
3
Fig.2 Outline dimensions (unindicated tolerance:±0.10 mm)
Page 4
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon PNP Power Transistors 2SB566 2SB566A
4
