Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon PNP Power Transistors 2SB1273
DESCRIPTION
·With TO-220 package
·Low collector saturation voltage
APPLICATIONS
·Designed for use in low frequency
power amplifier applications
PINNING
PIN DESCRIPTION
1
2
3 Base
Emitter
Collector;connected to
mounting base

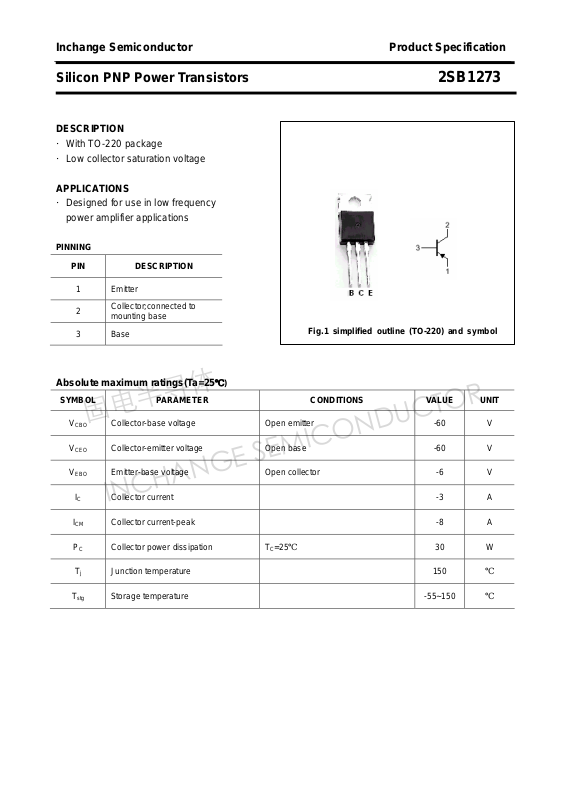

Fig.1 simplified outline (TO-220) and symbol
Absolute maximum ratings(Ta=25℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current -3 A
ICM Collector current-peak -8 A
PC Collector power dissipation TC=25℃ 30 W
Collector-base voltage Open emitter -60 V
Collector-emitter voltage Open base -60 V
Emitter-base voltage Open collector -6 V
Tj Junction temperature 150 ℃
T
Storage temperature -55~150 ℃
stg
Page 2
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon PNP Power Transistors 2SB1273
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
V
V
Collector-emitter breakdown voltage IC=-5mA ,RBE=∞ -60 V
(BR)CEO
Collector-base breakdown voltage IC=-1mA ,IE=0 -60 V
(BR)CBO
(BR)EBO
V
CEsat
V
BE
I
CBO
I
EBO
h
FE-1
h
FE-2
COB Output capacitance IE=0 ; VCB=-10V,f=1MHz 60 pF
Emitter-base breakdown voltage IE=-1mA ,IC=0 -6 V
Collector-emitter saturation voltage IC=-2A; IB=-0.2A -0.4 -1.0 V
Base-emitter on voltage IC=-0.5A ; VCE=-5V -0.8 -1.0 V
Collector cut-off current VCB=-40V; IE=0 -100 μA
Emitter cut-off current VEB=-4V; IC=0 -100 μA
DC current gain IC=-0.5A ; VCE=-5V 70 280
DC current gain IC=-3A ; VCE=-5V 20
fT Transition frequency IC=-0.5A ; VCE=-5V 100 MHz
h
Classifications
FE-1
Q R S
70-140 100-200 140-280
2
Page 3
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon PNP Power Transistors 2SB1273
PACKAGE OUTLINE
Fig.2 Outline dimensions(unindicated tolerance:±0.10 mm)
