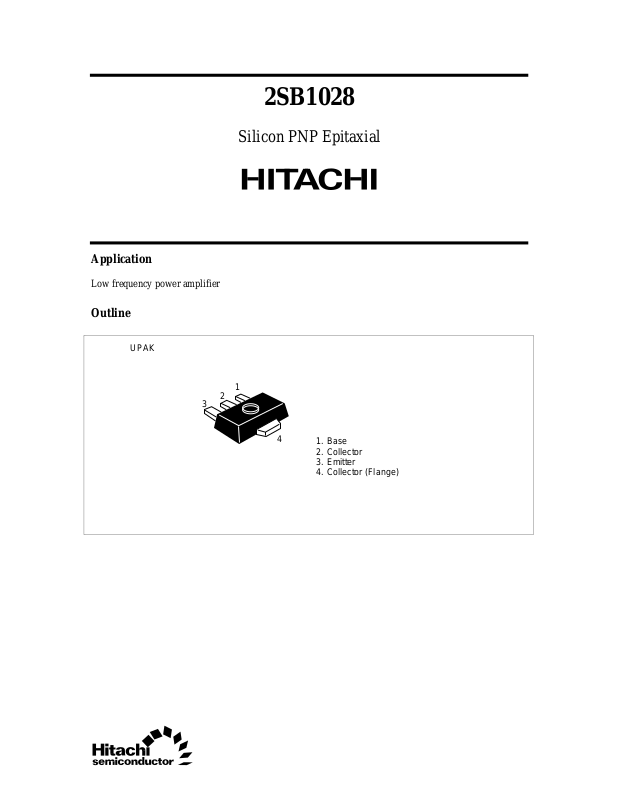

Page 1
Application
Low frequency power amplifier
Outline
UPAK
3
2SB1028
Silicon PNP Epitaxial
1
2
4
1. Base
2. Collector
3. Emitter
4. Collector (Flange)
Page 2
2SB1028
Absolute Maximum Ratings (Ta = 25°C)
Item Symbol Ratings Unit
Collector to base voltage V
Collector to emitter voltage V
Emitter to base voltage V
Collector current I
Collector peak current i
Collector power dissipation PC*
CBO
CEO
EBO
C
C(peak)
1
*
2
Junction temperature Tj 150 °C
Storage temperature Tstg –55 to +150 °C
Notes: 1. PW ≤ 10 ms, Duty cycle ≤ 20%
2. Value on the alumina ceramic board (12.5 × 20 × 0.7 mm)
Electrical Characteristics (Ta = 25°C)
Item Symbol Min Typ Max Unit Test conditions
Collector to base breakdown
V
(BR)CBO
voltage
Collector to emitter breakdown
V
(BR)CEO
voltage
Emitter to base breakdown
V
(BR)EBO
voltage
Collector cutoff current I
DC current transfer ratio h
Collector to emitter saturation
h
V
CBO
FE1
FE2
CE(sat)
voltage
Base to emitter voltage V
BE
Note: 1. The 2SB1028 is grouped by h
Mark EL EM
h
FE1
60 to 120 100 to 200
–180 — — V IC = –1 mA, IE = 0
–160 — — V IC = –10 mA, RBE = ∞
–5——V I
— — –10 µAVCB = –160 V, IE = 0
1
*
60 — 200 VCE = –5 V, IC = –0.15 A,
30 — — VCE = –5 V, IC = –0.5 A,
— — –1.0 V IC = –0.5 A, IB = –50 mA,
— — –0.9 V VCE = –5 V, IC = –0.15 A,
as follows.
FE1
–180 V
–160 V
–5 V
–1.5 A
–3 A
1W
= –1 mA, IC = 0
E
pulse
pulse
Pulse
pulse
2
Page 3
2SB1028
Maximum Collector Dissipation Curve
1.2
(W)
C
0.8
0.4
(on the alumina ceramic board)
Collector Power Dissipation P
0
50
Ambient Temperature Ta (°C)
Typical Transfer Characteristics
–500
VCE = –5 V
Pulse
–100
(mA)
C
–10
100 150
25°C
–25°C
Ta = 75°C
–1.0
Typical Output Characteristics
–0.8
(A)
C
–0.6
–0.4
Collector Current I
–0.2
0
–10 –20
Collector to Emitter Voltage V
DC Current Transfer Ratio vs.
1,000
VCE = –5 V
FE
Pulse
300
100
–5.0
–4.0
–3.5
–3.0
–2.5
–2.0
–1.5
–1.0
–0.5 mA
IB = 0
Collector Current
Pulse
–30 –40 –50
(V)
CE
Collector Current I
–1
0
–0.2 –0.4
Base to Emitter Voltage V
–0.6 –0.8 –1.0
(V)
BE
30
DC Current Transfer Ratio h
10
–10
–30 –100
Collector Current I
–300 –1,000
(mA)
C
3
Page 4
2SB1028
Collector to Emitter Saturation Voltage
(V)
CE(sat)
–10
vs. Collector Current
IC = 10 I
B
Pulse
–1.0
–0.1
–0.01
–1
Collector to Emitter Saturation Voltage V
–10
Collector Current I
–100 –1,000
(mA)
C
100
(pF)
ob
30
1,000
(MHz)
T
300
100
30
Gain Bandwidth Product f
10
–10
Collector Output Capacitance
vs. Collector to Base Voltage
Gain Bandwidth Product vs.
Collector Current
VCE = –5 V
Pulse
–30 –100
Collector Current I
C
–300 –1,000
(mA)
10
3
Collector Output Capacitance C
1
–1
–3 –10
Collector to Base Voltage V
IE = 0
f = 1 MHz
–30 –100
(V)
CB
4
Page 5
Unit: mm
0.53 Max
0.48 Max
4.5 ± 0.1
1.8 Max
1.5
1.5
3.0
1.5 ± 0.1
0.4
φ
1
0.44 Max
(1.5)
(2.5)
2.5 ± 0.1
4.25 Max
0.44 Max
(0.4)
(0.2)
0.8 Min
Hitachi Code
JEDEC
EIAJ
Weight
(reference value)
UPAK
—
Conforms
0.050 g
