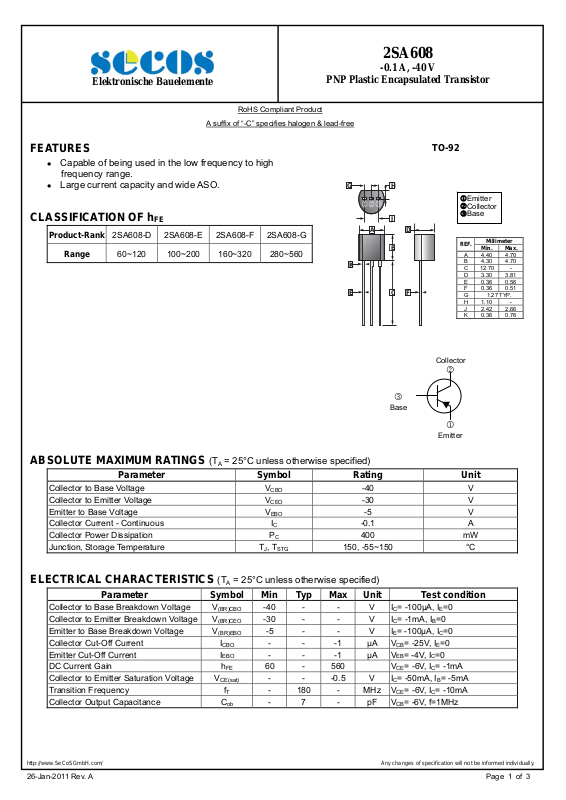

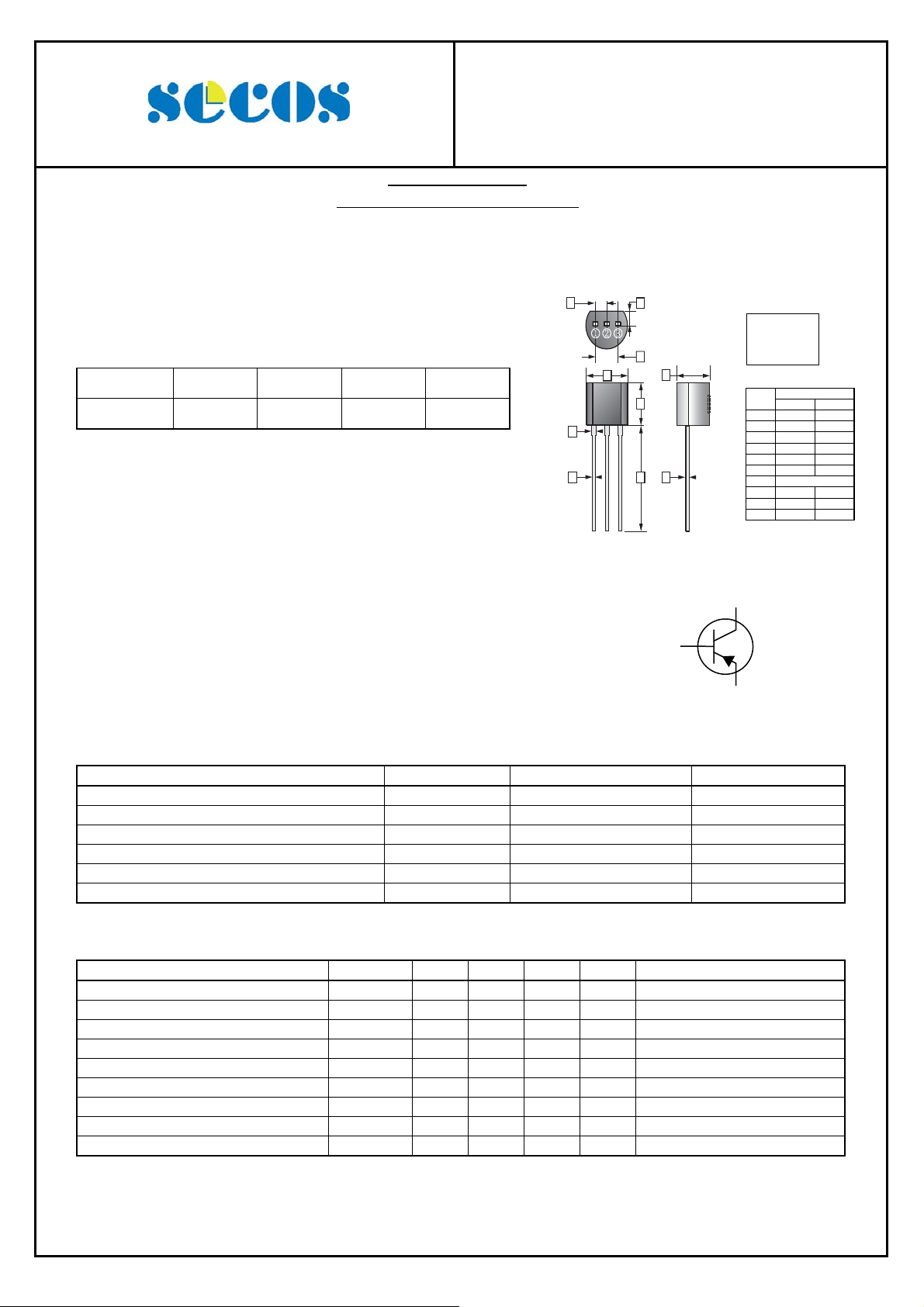

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

FEATURES

 Capable of being used in the low frequency to high

frequency range.

 Large current capacity and wide ASO.

CLASSIFICATION OF h

Product-Rank 2SA608-D 2SA608-E 2SA608-F 2SA608-G

Range 60~120 100~200 160~320 280~560

FE

2SA608

-0.1 A, -40 V

PNP Plastic Encapsulated Transistor

TO-92

G

K

H

Emitte
Collector

J

A

D

B

CE

F

Base

REF.

Min. Max.

A 4.40 4.70
B 4.30 4.70
C 12.70 ­D 3.30 3.81
E 0.36 0.56
F 0.36 0.51
G1.27 TYP.
H1.10 ­J 2.42 2.66
K 0.36 0.76

Millimete



Base

Collector





Emitter

ABSOLUTE MAXIMUM RATINGS (T

Parameter Symbol Rating Unit

Collector to Base Voltage V
Collector to Emitter Voltage V
Emitter to Base Voltage V
Collector Current - Continuous IC -0.1 A
Collector Power Dissipation PC 400 mW
Junction, Storage Temperature TJ, T

= 25°C unless otherwise specified)

A

-40 V

CBO

-30 V

CEO

-5 V

EBO

150, -55~150 °C

STG

ELECTRICAL CHARACTERISTICS (T

Parameter Symbol Min Typ Max Unit Test condition

Collector to Base Breakdown Voltage V
Collector to Emitter Breakdown Voltage V
Emitter to Base Breakdown Voltage V
Collector Cut-Off Current I
Emitter Cut-Off Current I
DC Current Gain hFE 60 - 560 VCE= -6V, IC= -1mA
Collector to Emitter Saturation Voltage V
Transition Frequency fT - 180 - MHz VCE= -6V, IC= -10mA
Collector Output Capacitance Cob - 7 - pF VCB= -6V, f=1MHz

= 25°C unless otherwise specified)

A

-40 - - V IC= -100μA, IE=0

(BR)CBO

-30 - - V IC= -1mA, IB=0

(BR)CEO

-5 - - V IE= -100μA, IC=0

(BR)EBO

- - -1 μA VCB= -25V, IE=0

CBO

- - -1 μA VEB= -4V, IC=0

EBO

- - -0.5 V IC= -50mA, IB= -5mA

CE(sat)

http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.

26-Jan-2011 Rev. A Page 1 of 3

Elektronische Bauelemente

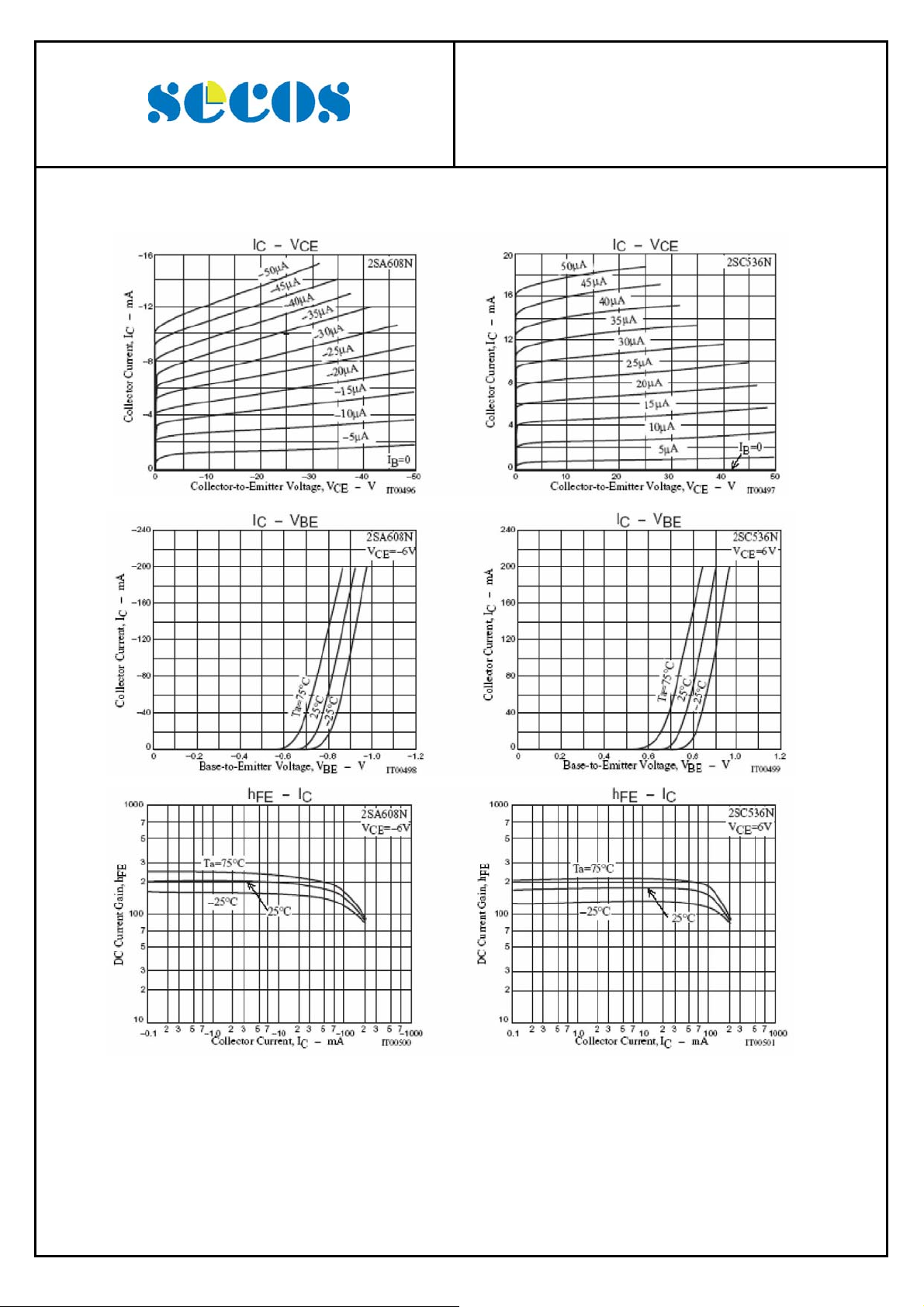

CHARACTERISTIC CURVE

2SA608

PNP Plastic Encapsulated Transistor

-0.1 A, -40 V

http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.

26-Jan-2011 Rev. A Page 2 of 3

Elektronische Bauelemente

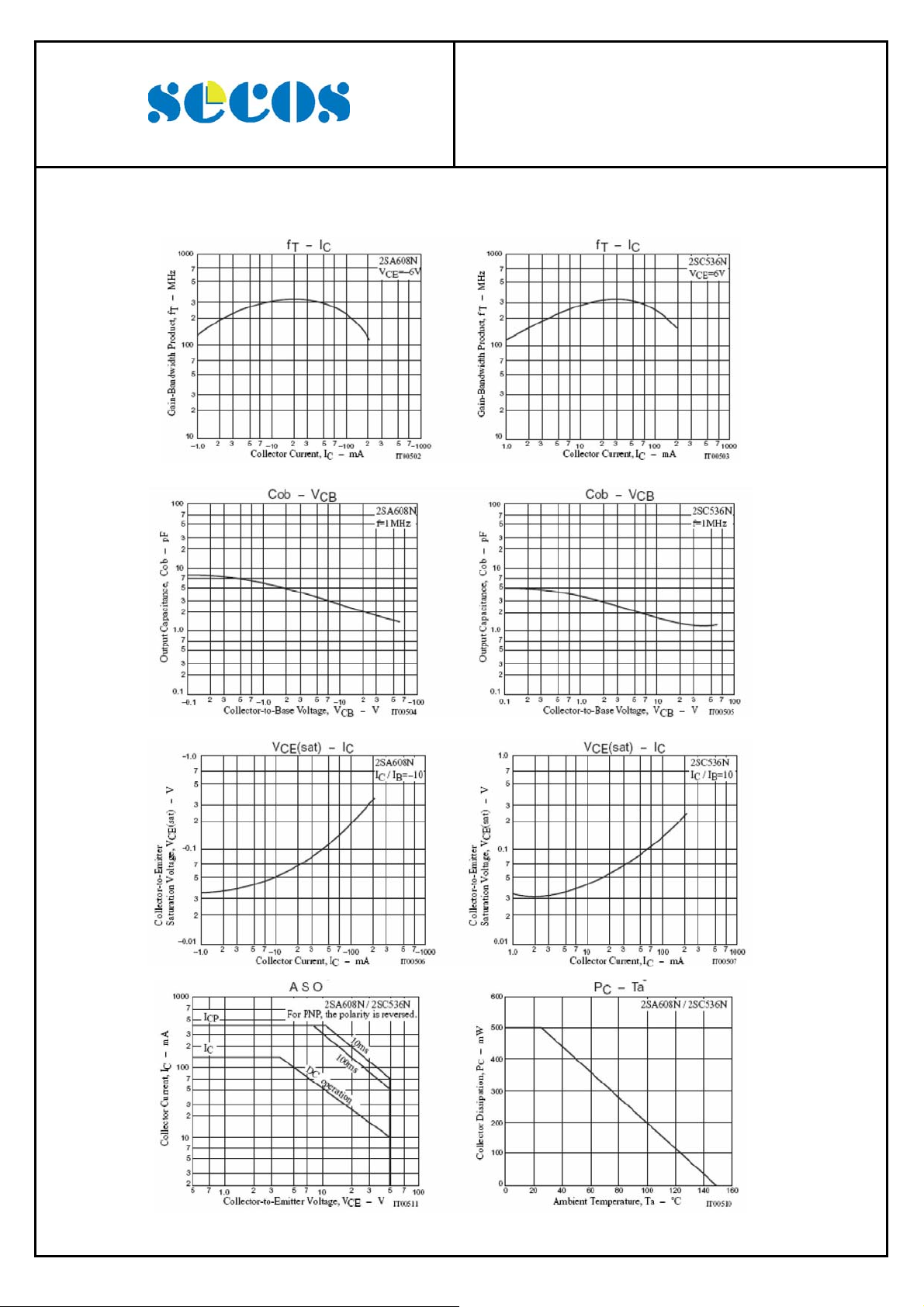

CHARACTERISTIC CURVE
