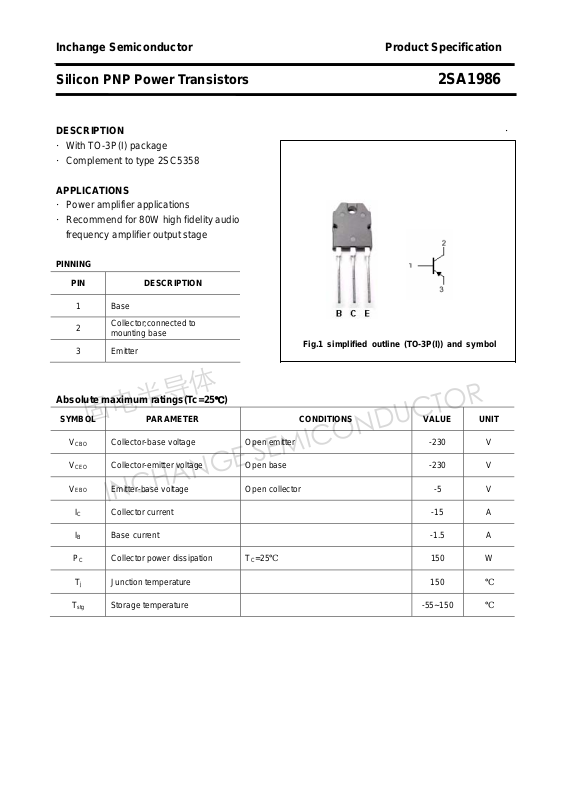

Page 1
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon PNP Power Transistors 2SA1986
DESCRIPTION ·
·With TO-3P(I) package
·Complement to type 2SC5358
APPLICATIONS
·Power amplifier applications
·Recommend for 80W high fidelity audio
frequency amplifier output stage
PINNING
PIN DESCRIPTION
1
2
3 Emitter
Base
Collector;connected to
mounting base

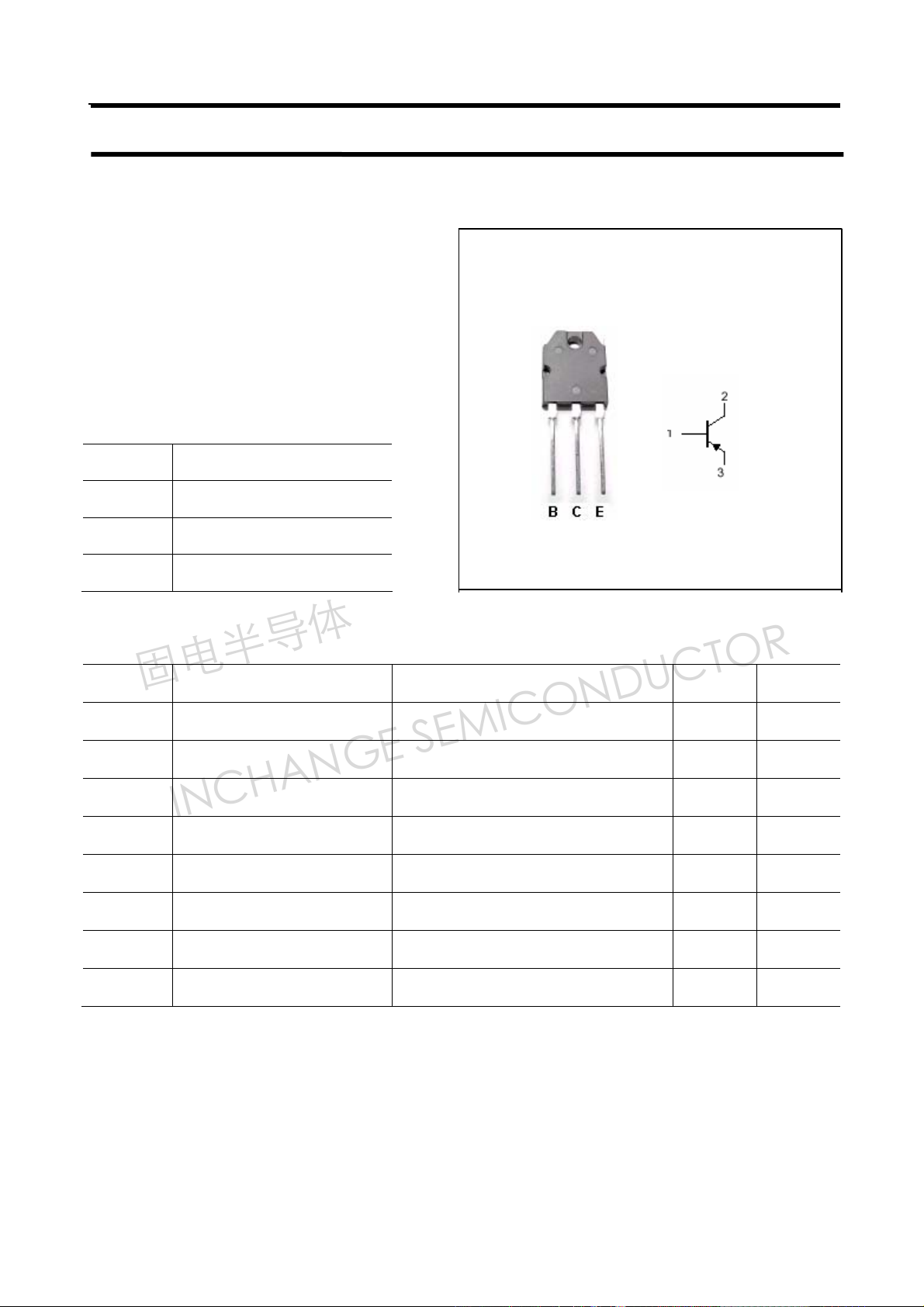

Fig.1 simplified outline (TO-3P(I)) and symbol
Absolute maximum ratings(Tc=25℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current -15 A
IB Base current -1.5 A
PC Collector power dissipation
Collector-base voltage Open emitter -230 V
Collector-emitt er voltage Open base -230 V
Emitter-base voltage Open collector -5 V
T
=25℃
C
150 W
Tj Junction temperature 150
T
Storage temperature -55~150
stg
℃
℃
Page 2
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon PNP Power Transistors 2SA1986
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CEO
V
CEsat
V
BE
I
CBO
I
EBO
h
FE-1
h
FE-2
fT Transition frequency IC=-1A ; VCE=-5V 30 MHz
COB Output capacitance IE=0; VCB=-10V;f=1MHz 360 pF
Collector-emitter breakdown voltage IC=-50mA; IB=0 -230 V
Collector-emitter saturation voltage IC=-8 A;IB=-0.8A -3.0 V
Base-emitter voltage IC=-7A ; VCE=-5V -1.5 V
Collector cut-off current VCB=-230V; IE=0 -5 μA
Emitter cut-off current VEB=-5V; IC=0 -5 μA
DC current gain IC=-1A ; VCE=-5V 55 160
DC current gain IC=-7A ; VCE=-5V 35
h
classifications
FE-1
R O
55-110 80-160
2
Page 3
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon PNP Power Transistors 2SA1986

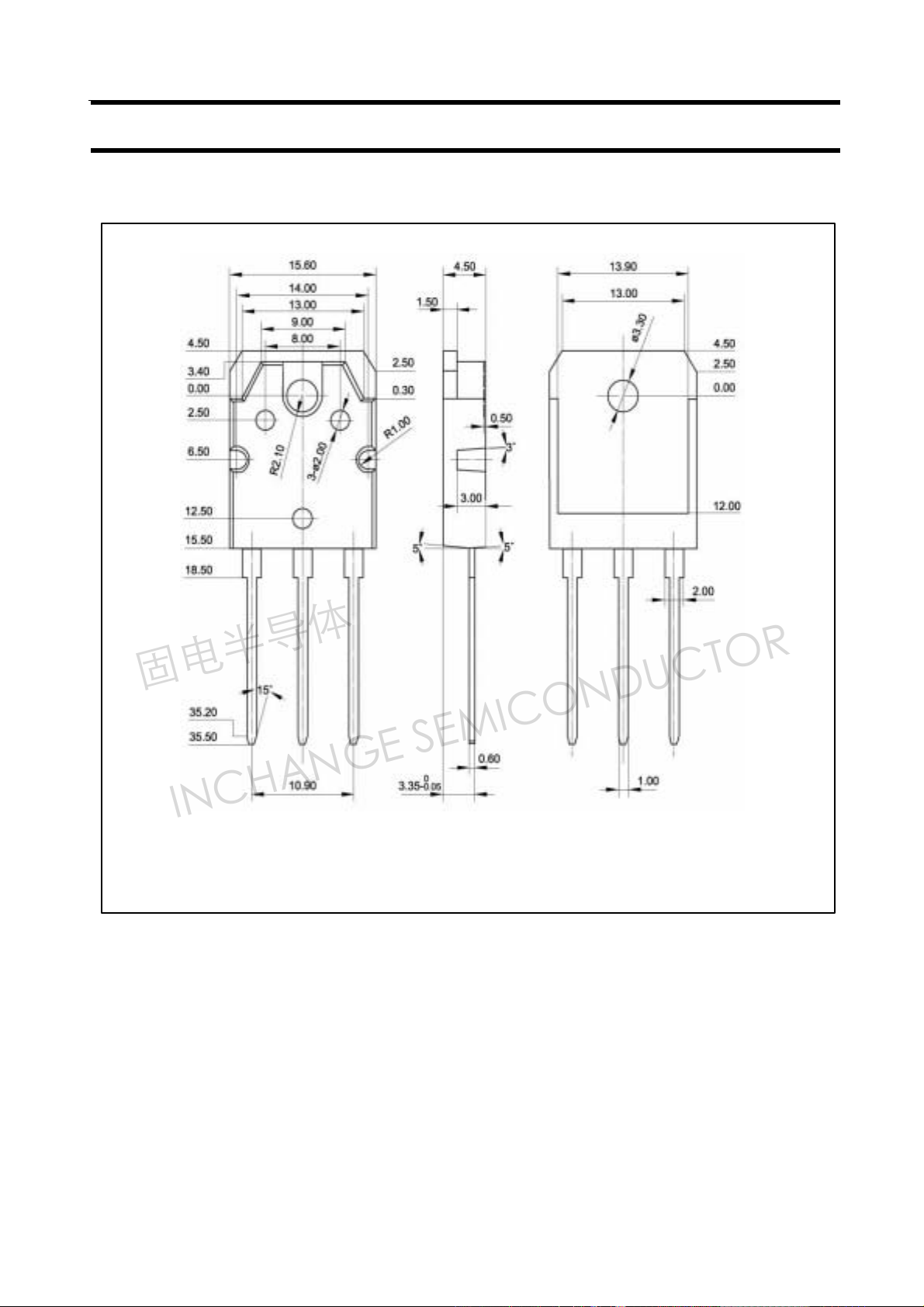

PACKAGE OUTLINE
Fig.2 Outline dimensions
3
Page 4
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon PNP Power Transistors 2SA1986

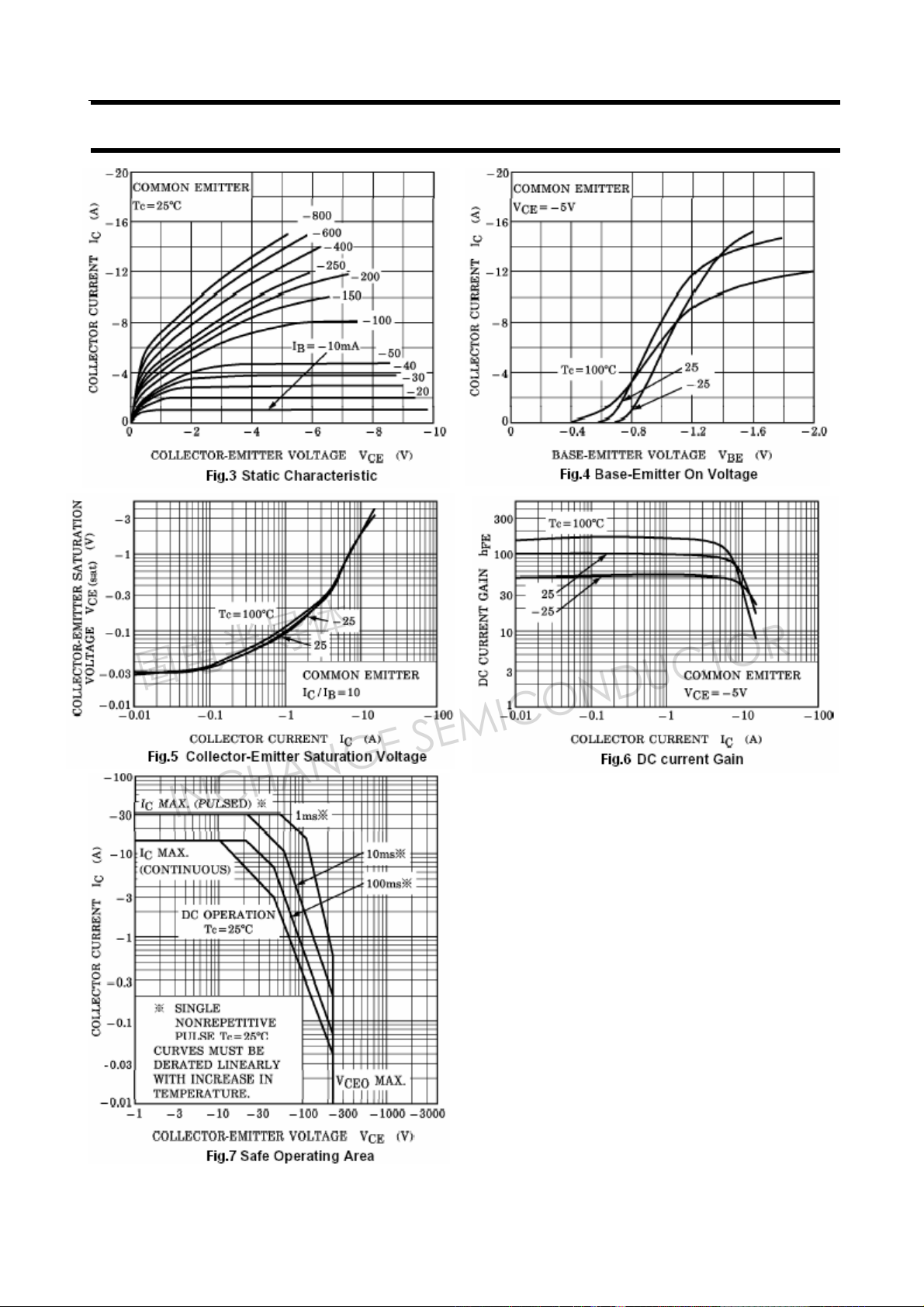

4
