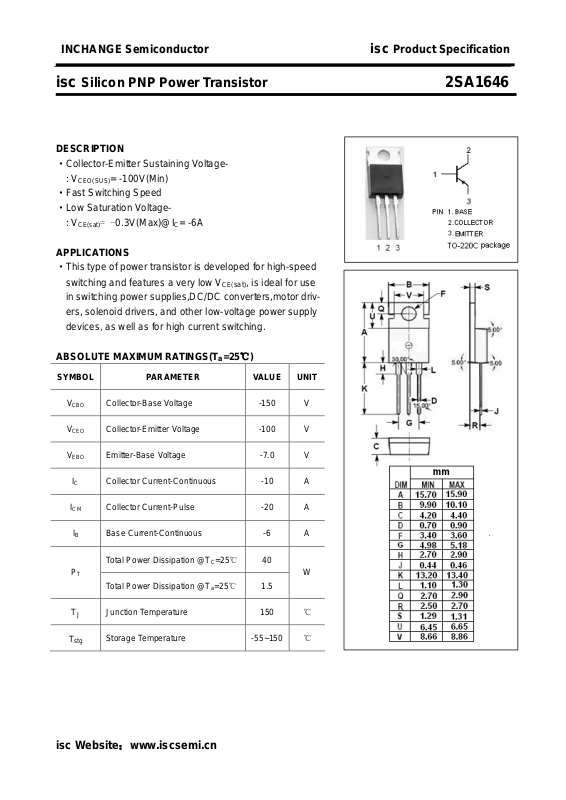

INCHANGE Semiconductor isc Product Specification
isc Silicon PNP Power Transistor 2SA1646
DESCRIPTION
·Collector-Emitter Sustaining Voltage : V
CEO(SUS)
·Fast Switching Speed
·Low Saturation Voltage-
: V
CE(sat)
APPLICATIONS
·This type of power transistor is developed for high-speed
switching and features a very low V
in switching power supplies,DC/DC converters,motor drivers, solenoid drivers, and other low-voltage power supply
devices, as well as for high current switching.
ABSOLUTE MAXIMUM RATINGS(T
SYMBOL PARAMETER VALUE UNIT
= -100V(Min)
= -0.3V(Max)@IC= -6A
, is ideal for use
CE(sat)
=25℃)
a
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
P
T
T
J
T
stg
Collector-Base Voltage -150 V
Collector-Emitter Voltage -100 V
Emitter-Base Voltage -7.0 V
Collector Current-Continuous -10 A
Collector Current-Pulse -20 A
B Base Current-Continuous -6 A
Total Power Dissipation @TC=25℃
Total Power Dissipation @Ta=25℃
Junction Temperature 150
Storage Temperature -55~150
40
W
1.5
℃
℃
isc Website：www.iscsemi.cn
Page 2
INCHANGE Semiconductor isc Product Specification
isc Silicon PNP Power Transistor 2SA1646
ELECTRICAL CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
CE
(sat)-
V
CE
(sat)-
V
BE
(sat)-
V
BE
(sat)-
I
CBO
I
EBO
h
FE-1
h
FE-2
h
FE-3
C
OB
f
T
Collector-Emitter Saturation Voltage IC= -6A; IB= -0.3A B -0.3 V
1
Collector-Emitter Saturation Voltage IC= -8A; IB= -0.4A B -0.5 V
2
Base-Emitter Saturation Voltage IC= -6A; IB= -0.3A B -1.2 V
1
Base-Emitter Saturation Voltage IC= -8A; IB= -0.4A B -1.5 V
2
Collector Cutoff Current VCB= -100V ; IE= 0 -10 μA
Emitter Cutoff Current VEB= -5V; IC= 0 -10 μA
DC Current Gain IC= -0.5A ; VCE= -2V 100
DC Current Gain IC= -2A ; VCE= -2V 100 400
DC Current Gain IC= -6A ; VCE= -2V 60
Output Capacitance
Current-Gain—Bandwidth Product IC= -0.5A ; VCE= -10V 150 MHz
Switching times
I
=0; VCB= -10V;f
E
= 1.0MHz
test
250 pF
t
on
t
stg
t
f
Turn-on Time 0.3 μs
I
= -6A ,RL= 8.3Ω,
Storage Time 1.5 μs
Fall Time
C
= -IB2= -0.3A,VCC= -50V
I
B1
0.4 μs
h
Classifications
FE-2
M L K
100-200 150-300 200-400
isc Website：www.iscsemi.cn
