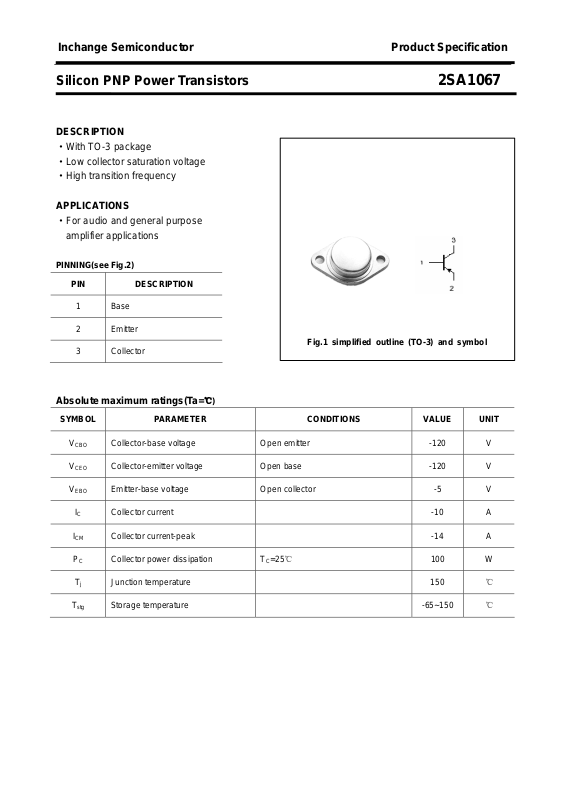

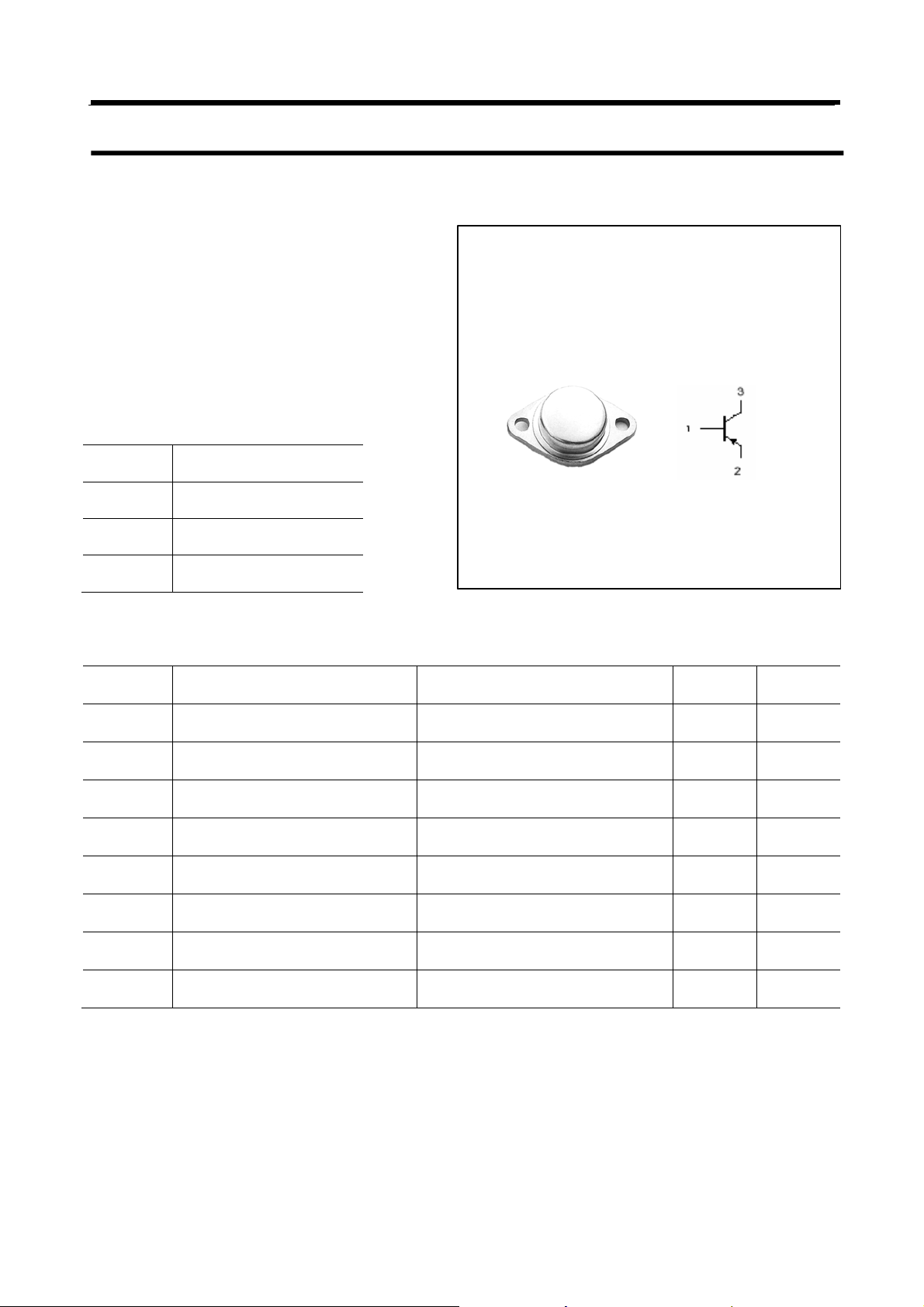

Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2SA1067
DESCRIPTION
·With TO-3 package
·Low collector saturation voltage
·High transition frequency
APPLICATIONS
·For audio and general purpose
amplifier applications
PINNING(see Fig.2)
PIN DESCRIPTION
1
2 Emitter
3 Collector
Base
Fig.1 simplified outline (TO-3) and symbol
Absolute maximum ratings(Ta=
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
V
V
I
P
CBO
CEO
EBO
I
C
CM
C
Collector-base voltage Open emitter -120 V
Collector-emitter voltage Open base -120 V
Emitter-base voltage Open collector -5 V
Collector current -10 A
Collector current-peak -14 A
Collector power dissipation
℃)
T
=25℃
C
100 W
T
j
T
stg
Junction temperature 150
Storage temperature -65~150
℃
℃
Page 2
Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2SA1067
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CEO
V
CEsat
V
BEsat
I
CBO
I
EBO
h
Collector-emitter breakdown voltage IC=-25mA ;IB=0 -120 V
Collector-emitter saturation voltage IC=-5A ;IB=-0.5A B -2.0 V
Base-emitter saturation voltage IC=-5A ;IB=-0.5A B -2.5 V
Collector cut-off current VCB=-120V; IE=0 -0.1 mA
Emitter cut-off current VEB=-5V; IC=0 -0.1 mA
FE
f
T
DC current gain IC=-3A ; VCE=-4V 60 150
Transition frequency IC=-0.5A ; VCE=-10V 50 MHz
2
Page 3
Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2SA1067
PACKAGE OUTLINE
Fig.2 outline dimensions (unindicated tolerance:±0.1mm)
3
