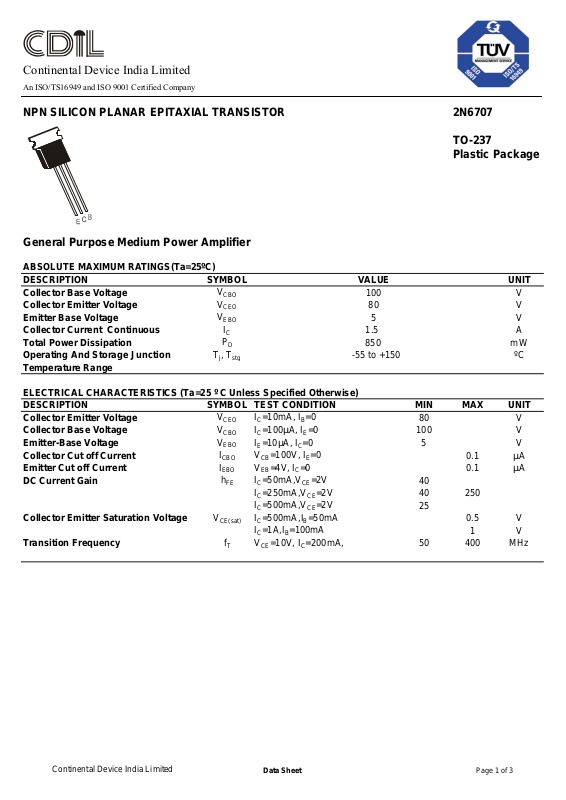

Continental Device India Limited
An ISO/TS16949 and ISO 9001 Certified Company
NPN SILICON PLANAR EPITAXIAL TRANSISTOR 2N6707
TO-237
Plastic Package
General Purpose Medium Power Amplifier
ABSOLUTE MAXIMUM RATINGS(Ta=25ºC)
DESCRIPTION SYMBOL VALUE UNIT
Collector Base Voltage
Collector Emitter Voltage
Emitter Base Voltage
Collector Current Continuous
Total Power Dissipation
Operating And Storage Junction
Temperature Range
V
CBO
V
CEO
V
EBO
I
C
P
D
T
, T
st
100 V
80 V
5V
1.5 A
850 mW
-55 to +150 ºC
ELECTRICAL CHARACTERISTICS (Ta=25 º C Unless Specified Otherwise)
DESCRIPTION SYMBOL TEST CONDITION MIN MAX UNIT
Collector Emitter Voltage
Collector Base Voltage
Emitter-Base Voltage
Collector Cut off Current
Emitter Cut off Current
DC Current Gain
Collector Emitter Saturation Voltage
Transition Frequency
V
CEO IC
V
CBO
V
EBO
I
CBO
I
EBO
h
FE
V
CE(sat
f
T
=10mA, IB=0
80 V
IC=100µA, IE=0 100 V
IE=10µA, IC=0 5 V
VCB=100V, IE=0
VEB=4V, IC=0
IC=50mA,VCE=2V
I
=250mA,VCE=2V
C
I
=500mA,VCE=2V
C
IC=500mA,IB=50mA
I
=1A,IB=100mA
C
VCE=10V, IC=200mA,
40
40 250
25
50 400 MHz
0.1 µA
0.1 µA
0.5 V
1V
Continental Device India Limited
Data Sheet Page 1 of 3
Page 2
2N6707
H
Packing D
il
TO-237
Plastic Package
TO-237 Plastic Package
F
B
1
2
3
D
A
G
LL
1
3
2
DIM MIN. MAX.
A 4.32 5.33
B 4.45 5.20
A
C 3.18 4.19
D 0.41 0.55
E 0.35 0.50
F — 5.40
K
D
1
2
E
3
G 1.14 1.40
H — 2.54
K 12.70 —
L5 DEG
A
J
SEC AA
PIN CONFIGURA TION
1. BASE
2. COLLECTOR
3. EMITTER
C
J 1.14 1.53
All diminsions in mm.
PACKAGE
TO-237 Bulk
TO-237 T&A
Continental Device India Limited
eta
Details
1K/polybag
2K/ammo box
STANDARD PACK INNER CARTON BOX
Net Weight/Qty
240 gm/1K pcs
725 gm/2K pcs
3" x 7.5" x 7.5"
12.5" x 8" x 1.8"
Data Sheet Page 2 of 3
Qty
5K
2K
OUTER CARTON BOX
17" x 15" x 13.5"
17" x 15" x 13.5"
Qty Gr WtSize Size
80K
32K
26.2 kgs
13.8 kgs
Page 3
Notes 2N6707
@
TO-237
Plastic Package
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Discrete Semiconductor Device(s) best suited
for application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as
to confirm that the Device(s) meet functionality parameters for your application. The information furnished in the Data Sheet and
on the CDIL Web Site/CD is believed to be accurate and reliable. CDIL however, does not assume responsibility for inaccuracies
or incomplete information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or use of any
CDIL product; neither does it convey any license under its patent rights nor rights of others. These products are not designed for
use in life saving/support appliances or systems. CDIL customers selling these products (either as individual Discrete
Semiconductor Devices or incorporated in their end products), in any life saving/support appliances or systems or applications do
so at their own risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
