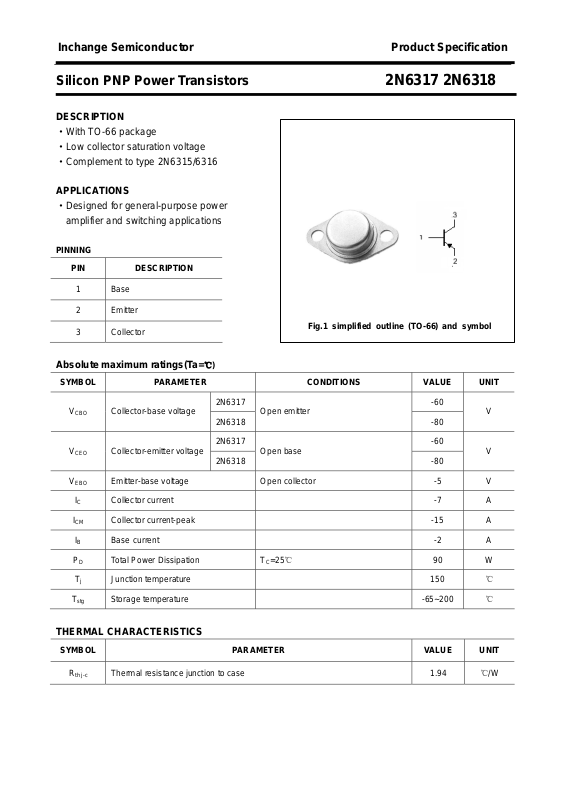

Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2N6317 2N6318
DESCRIPTION
·With TO-66 package
·Low collector saturation voltage
·Complement to type 2N6315/6316
APPLICATIONS
·Designed for general-purpose power
amplifier and switching applications
PINNING
PIN DESCRIPTION
1
2 Emitter
3 Collector
Base
Fig.1 simplified outline (TO-66) and symbol
Absolute maximum ratings(Ta=℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
2N6317 -60
V
Collector-base voltage
CBO
V
Collector-emitter voltage
CEO
V
Emitter-base voltage Open collector -5 V
EBO
IC Collector current -7 A
ICM Collector current-peak -15 A
IB Base current -2 A
PD Total Power Dissipation
2N6318
2N6317 -60
2N6318
Open emitter
Open base
T
=25℃
C
V
-80
V
-80
90 W
Tj Junction temperature 150
T
Storage temperature -65~200
stg
℃
℃
THERMAL CHARACTERISTICS
SYMBOL PARAMETER VALUE UNIT
R
Thermal resistance junction to case 1.94
th j-c
℃/W

Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2N6317 2N6318
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
CEO(SUS)
V
CEsat-1
V
CEsat-2
V
BEsat
Collector-emitter
sustaining voltage
2N6318
IC=-0.1A ;IB=0
V
-80
Collector-emitter saturation voltage IC=-4A; IB=-0.4 A -1.0 V
Collector-emitter saturation voltage IC=-7A; IB=-1.75A -2.0 V
Base-emitter saturation voltage IC=-7A; IB=-1.75A -2.5 V
VBE Base-emitter on voltage IC=-2.5A ; VCE=-4V -1.5 V
2N6317 VCE=-30V; IB=0
2N6317 -60
I
Collector cut-off current
CEO
2N6318 V
=-40V; IB=0
CE
-0.5 mA
2N6317 VCB=-60V; IE=0
I
Collector cut-off current
CBO
2N6318 V
=-80V; IE=0
CB
-0.25 mA
=Rated VCE; V
V
I
Collector cut-off current
CEX
I
Emitter cut-off current VEB=-5V; IC=0 -1.0 mA
EBO
h
DC current gain IC=-0.5A ; VCE=-4V 35
FE-1
h
DC current gain IC=-2.5A ; VCE=-4V 20 100
FE-2
h
DC current gain IC=-7A ; VCE=-4V 4
FE-3
CE
=150℃
T
C
BE(off)
=1.5V
-0.25
-2.0
mA
fT Transition frequency IC=-0.25A;VCE=-10V;f=1.0MHz 4 MHz
2

Inchange Semiconductor Product Specification
Silicon PNP Power Transistors 2N6317 2N6318

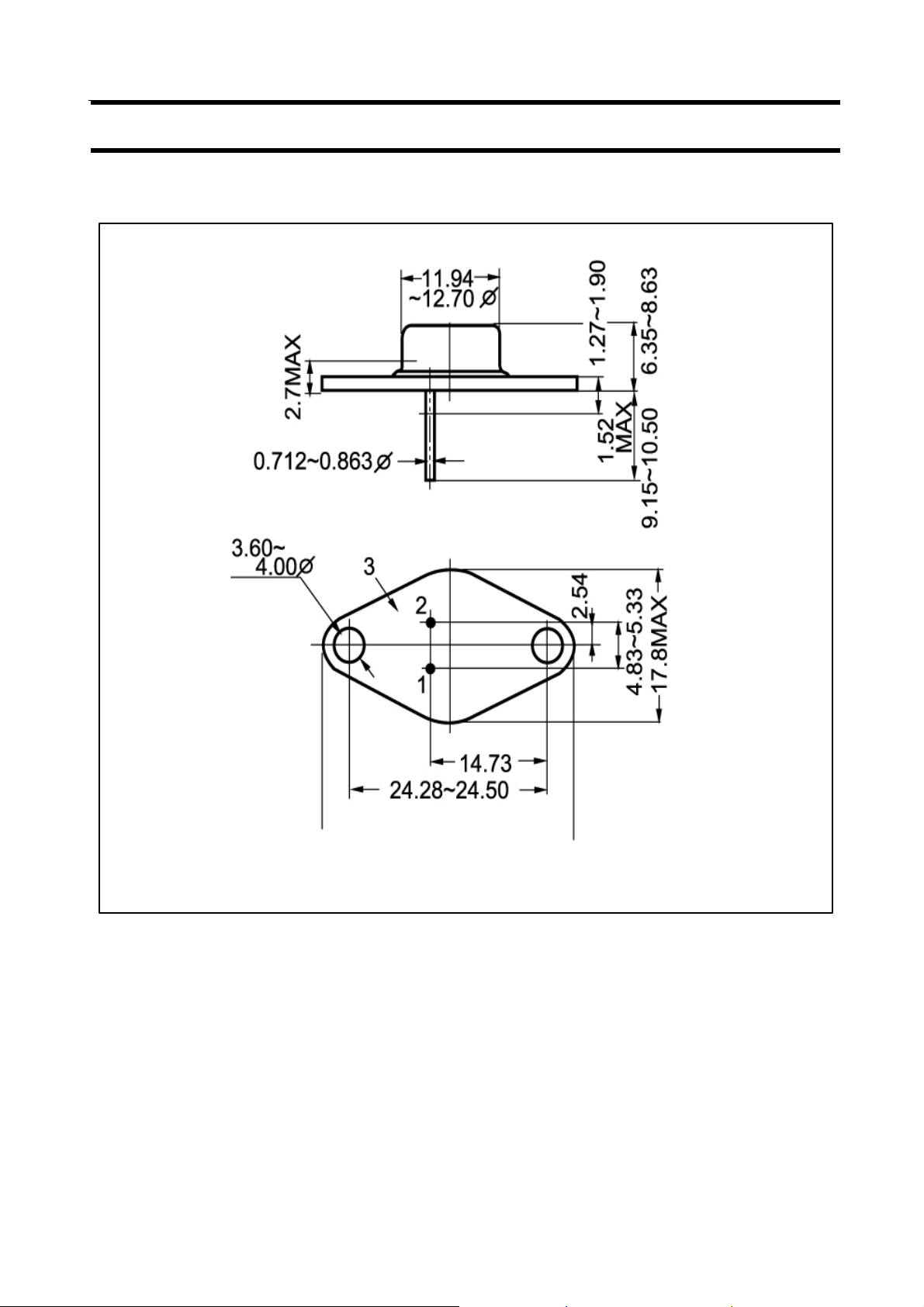

PACKAGE OUTLINE
Fig.2 outline dimensions
3
