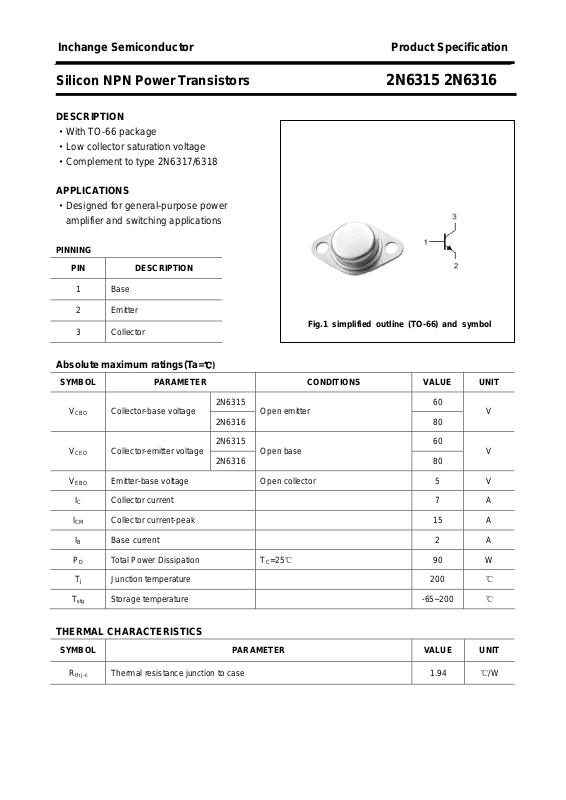

Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2N6315 2N6316
DESCRIPTION
·With TO-66 package
·Low collector saturation voltage
·Complement to type 2N6317/6318
APPLICATIONS
·Designed for general-purpose power
amplifier and switching applications
PINNING
PIN DESCRIPTION
1
2 Emitter
3 Collector
Base
Fig.1 simplified outline (TO-66) and symbol
Absolute maximum ratings(Ta=℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
2N6315 60
V
Collector-base voltage
CBO
V
Collector-emitter voltage
CEO
V
Emitter-base voltage Open collector 5 V
EBO
IC Collector current 7 A
ICM Collector current-peak 15 A
IB Base current 2 A
PD Total Power Dissipation
2N6316
2N6315 60
2N6316
Open emitter
Open base
T
=25℃
C
V
80
V
80
90 W
Tj Junction temperature 200
T
Storage temperature -65~200
stg
℃
℃
THERMAL CHARACTERISTICS
SYMBOL PARAMETER VALUE UNIT
R
Thermal resistance junction to case 1.94
th j-c
℃/W
Page 2
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2N6315 2N6316
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
CEO(SUS)
Collector-emitter
sustaining voltage
2N6316
V
Collector-emitter saturation voltage IC=4A; IB=0.4 A 1.0 V
CEsat-1
V
Collector-emitter saturation voltage IC=7A; IB=1.75A 2.0 V
CEsat-2
V
Base-emitter saturation voltage IC=7A; IB=1.75A 2.5 V
BEsat
I
=0.1A ;IB=0
C
V
80
VBE Base-emitter on voltage IC=2.5A ; VCE=4V 1.5 V
2N6315 VCE=30V; IB=0
2N6315 60
I
Collector cut-off current
CEO
2N6316 V
=40V; IB=0
CE
0.5 mA
2N6315 VCB=60V; IE=0
I
Collector cut-off current
CBO
0.25 mA
2N6316 VCB=80V; IE=0
=Rated VCE; V
V
I
Collector cut-off current
CEX
I
Emitter cut-off current VEB=5V; IC=0 1.0 mA
EBO
h
DC current gain IC=0.5A ; VCE=4V 35
FE-1
h
DC current gain IC=2.5A ; VCE=4V 20 100
FE-2
h
DC current gain IC=7A ; VCE=4V 4
FE-3
CE
=150℃
T
C
BE(off)
=1.5V
0.25
2.0
mA
fT Transition frequency IC=0.25A;VCE=10V;f=1.0MHz 4 MHz
2
Page 3
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2N6315 2N6316
PACKAGE OUTLINE
Fig.2 outline dimensions
3
