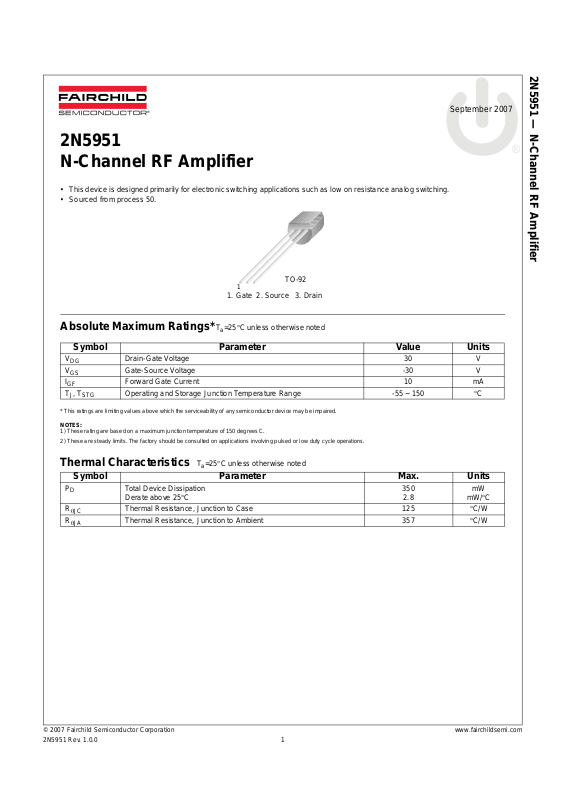

2N5951 N-Channel RF Amplifier

• This device is designed primarily for electronic switching applications such as low on resistance analog switching.

• Sourced from process 50.

2N5951 — N-Channel RF Amplifier

September 2007

TO-92

Absolute Maximum Ratings* T

1. Gate 2. Source 3. Drain

=25°C unless otherwise noted

Symbol Parameter Value Units

TJ, T

STG

* This ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

NOTES:

1) These rating are based on a m aximum junction temperature of 150 degrees C.

2) These are steady limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.

Thermal Characteristics T

Drain-Gate Voltage 30 V Gate-Source Voltage -30 V Forward Gate Current 10 mA Operating and Storage Junction Temperature Range -55 ~ 150 °C

=25°C unless otherwise noted

Symbol Parameter Max. Units

θJC

θJA

Total Device Dissipation Derate above 25°C

Thermal Resistance, Junction to Case 125 °C/W Thermal Resistance, Junction to Ambient 357 °C/W

350

2.8

mW/°C

Page 2

2N5951 — N-Channel RF Amplifier

Electrical Characteristics* T

=25°C unless otherwise noted

Symbol Parameter Test Condition Min. Max. Units

Off Characteristics

(BR)GSS

GSS

GS(off)

On Characteristics

DSS

RDS(on) Drain-Source On Resistance ID = 400μA, f = 1.0kHz 250 Ω

Small Signal Characteristics

goss Common- Source Output Conductance VDS = 15V, VGS = 0V, f = 1.0kHz 75 μ/Ω gos Output Conductance VDS = 15V, VGS = 0V, f = 100MHz 100 μ/Ω

gis Ciss Input Capacitance VDS = 15V, VGS = 0V, f = 1.0MHz 6 pF

Crss Reverse Transfer Capacitance VDS = 15V, VGS = 0V, f = 1.0MHz 2 pF en Equivalent Short-Circuit Input Noise Voltage VDS = 15V, VGS = 0V, f = 1.0kHz 100 nV

NF Noise Figure

* Pulse Test: Pulse Width ≤ 300μs, Duty Cycle = 2%

Gate-Source Breakdown Voltage IG = 1.0μA, VDS = 0 -30 V Gate Reverse Current V

Gate-Source Cut-off Voltage V Gate-Source Forward Voltage V

= 15V, V

T = 100°C

= 15V, ID = 100nA -2 -5 V

= 15V, ID = 700μA -1.3 -4.5 V

= 0, T = 25°C

-1.0

-200

Zero-Gate Voltage Drain Current * VDS = 15V, VGS = 0 7 13 mA

Input Conductance

VDS = 15V, VGS = 0V, f = 100MHz 250 μ/Ω

VDS = 15V, VGS = 0V, RG = 1.0mΩ, f = 1.0kHz RG = 1.0kΩ, f = 100MHz

2 5

Page 3
