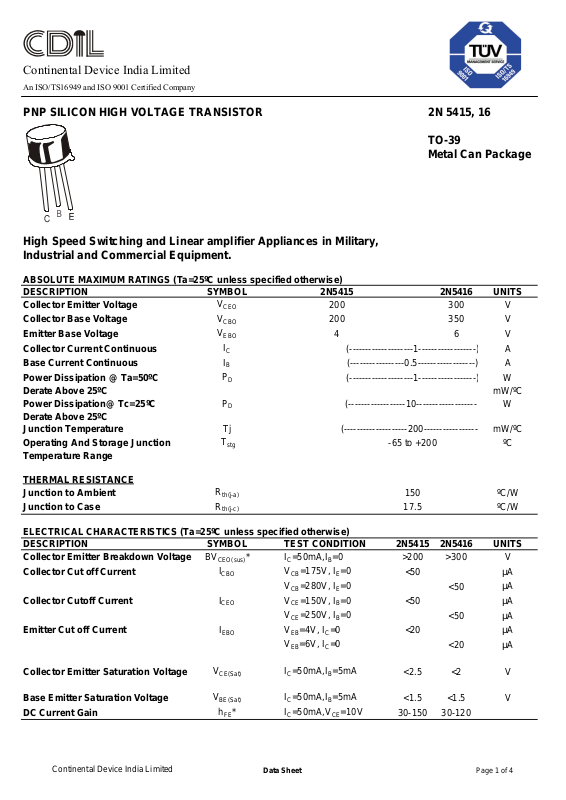

Page 1
)
)
)
-
Continental Device India Limited
An ISO/TS16949 and ISO 9001 Certified Company
PNP SILICON HIGH VOLTAGE TRANSISTOR 2N 5415, 16
TO-39
Metal Can Package
High Speed Switching and Linear amplifier Appliances in Military,
Industrial and Commercial Equipment.
ABSOLUTE MAXIMUM RATINGS (Ta=25ºC unless specified otherwise)
DESCRIPTION SYMBOL 2N5415 2N5416 UNITS
Collector Emitter Voltage
Collector Base Voltage
Emitter Base Voltage
Collector Current Continuous
Base Current Continuous
Power Dissipation @ Ta=50ºC
V
CEO
V
CBO
V
EBO
I
C
I
B
P
D
Derate Above 25ºC mW/ºC
Power Dissipation@ Tc=25ºC
P
D
Derate Above 25ºC
Junction Temperature Tj (--------------------200----------------
Operating And Storage Junction
T
stg
Temperature Range
200 300 V
200 350 V
46V
(--------------------1------------------
(-----------------0.5------------------
(--------------------1------------------
A
A
W
(------------------10------------------- W
mW/ºC
-65 to +200 ºC
THERMAL RESISTANCE
Junction to Ambient
Junction to Case
R
R
th(j-a)
th(j-c)
150 ºC/W
17.5 ºC/W
ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise)
DESCRIPTION SYMBOL TEST CONDITION 2N5415 2N5416 UNITS
Collector Emitter Breakdown Voltage
Collector Cut off Current
Collector Cutoff Current
Emitter Cut off Current
Collector Emitter Saturation Voltage
Base Emitter Saturation Voltage
DC Current Gain
BV
V
V
*I
CEO(sus)
I
CBO
I
CEO
I
EBO
CE(Sat)
BE(Sat)
h
*I
FE
=50mA,IB=0
C
VCB=175V, IE=0
V
=280V, IE=0
CB
VCE=150V, IB=0
V
=250V, IB=0
CE
VEB=4V, IC=0
V
=6V, IC=0
EB
IC=50mA,IB=5mA
IC=50mA,IB=5mA
=50mA,VCE=10V
C
>200 >300 V
<50
<50
<50
<50
<20
<20
<2.5 <2 V
<1.5 <1.5 V
30-150 30-120
µA
µA
µA
µA
µA
µA
Continental Device India Limited
Data Sheet Page 1 of 4
Page 2
PNP SILICON HIGH VOLTAGE TRANSISTOR 2N 5415, 16
TO-39
Metal Can Package
ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise)
DESCRIPTION SYMBOL TEST CONDITION UNITS
DYNAMIC CHARACTERISTICS
2N5415/16
|I
Small Signal Current Gain
Transition Frequency
Output Capacitance
Input Capacitance
| h
fe
f
T
C
ob
C
ib
*Pulse Test: Pulse Width <300µs, Duty Cycle <2%
=5mA, VCE=10V,
C
f=1kHz
IC=10mA, VCE=10V
f=5MHz
VCB=10V, IE=0, f=1MHz
VEB=V
max, IC=0,
EBO
f=1MHz
>25
>15
<15
<75
MHz
pF
pF
Continental Device India Limited
Data Sheet Page 2 of 4
Page 3
TO-39 Metal Can Package
2N 5415, 16
TO-39
Metal Can Package
A
B
DIM MIN MAX
A 8.50 9.39
B 7.74 8.50
C 6.09 6.60
C
E
D 0.40 0.53
E—0.88
F 2.41 2.66
G 4.82 5.33
K
H 0.71 0.86
J 0.73 1.02
K12.70 —
L 42 DEG 48 DEG
Al l d imens ions a r e i n mm
D
G
2
1
3
L
H
J
F
2
3
PIN CONFIGURATION
1. EMITTER
2. BASE
3. COLLECTOR
1
Packing Detail
PACKAGE
Details
TO-39 500 pcs/polybag 540 gm/500 pcs 3" x 7.5" x 7.5" 20K 17" x 15" x 13.5" 32K 40 kgs
Continental Device India Limited
STANDARD PACK INNER CARTON BOX
Net Weight/Qty
Data Sheet Page 3 of 4
Qty
OUTER CARTON BOX
Qty Gr WtSize Size
Page 4
Notes 2N 5415, 16
@
TO-39
Metal Can Package
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Discrete Semiconductor Device(s) best suited
for application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as
to confirm that the Device(s) meet functionality parameters for your application. The information furnished in the Data sheet and
on the CDIL Web Site/CD are believed to be accurate and reliable. CDIL however, does not assume responsibility for inaccuracies
or incomplete information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or use of any
CDIL product; neither does it convey any license under its patent rights nor rights of others. These products are not designed for
use in life saving/support appliances or systems. CDIL customers selling these products (either as individual Discrete
Semiconductor Devices or incorporated in their end products), in any life saving/support appliances or systems or applications do
so at their own risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
