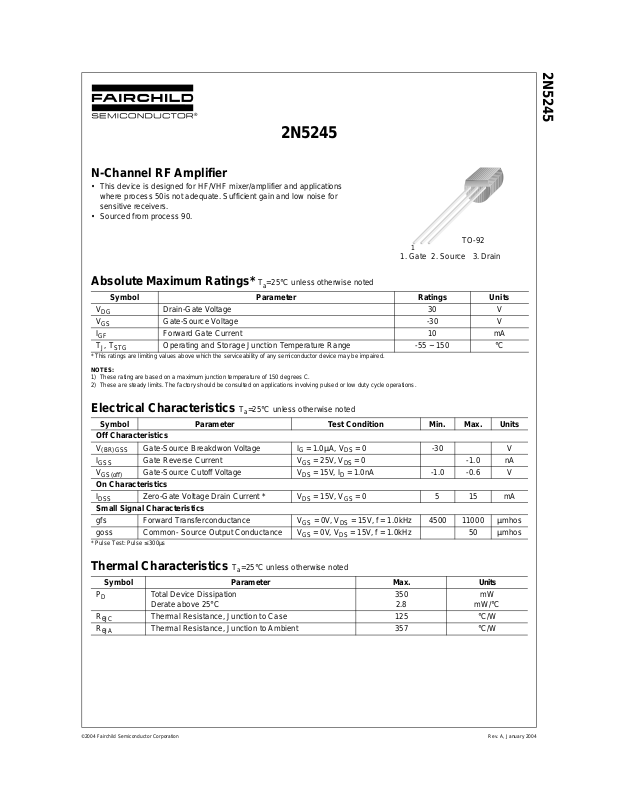

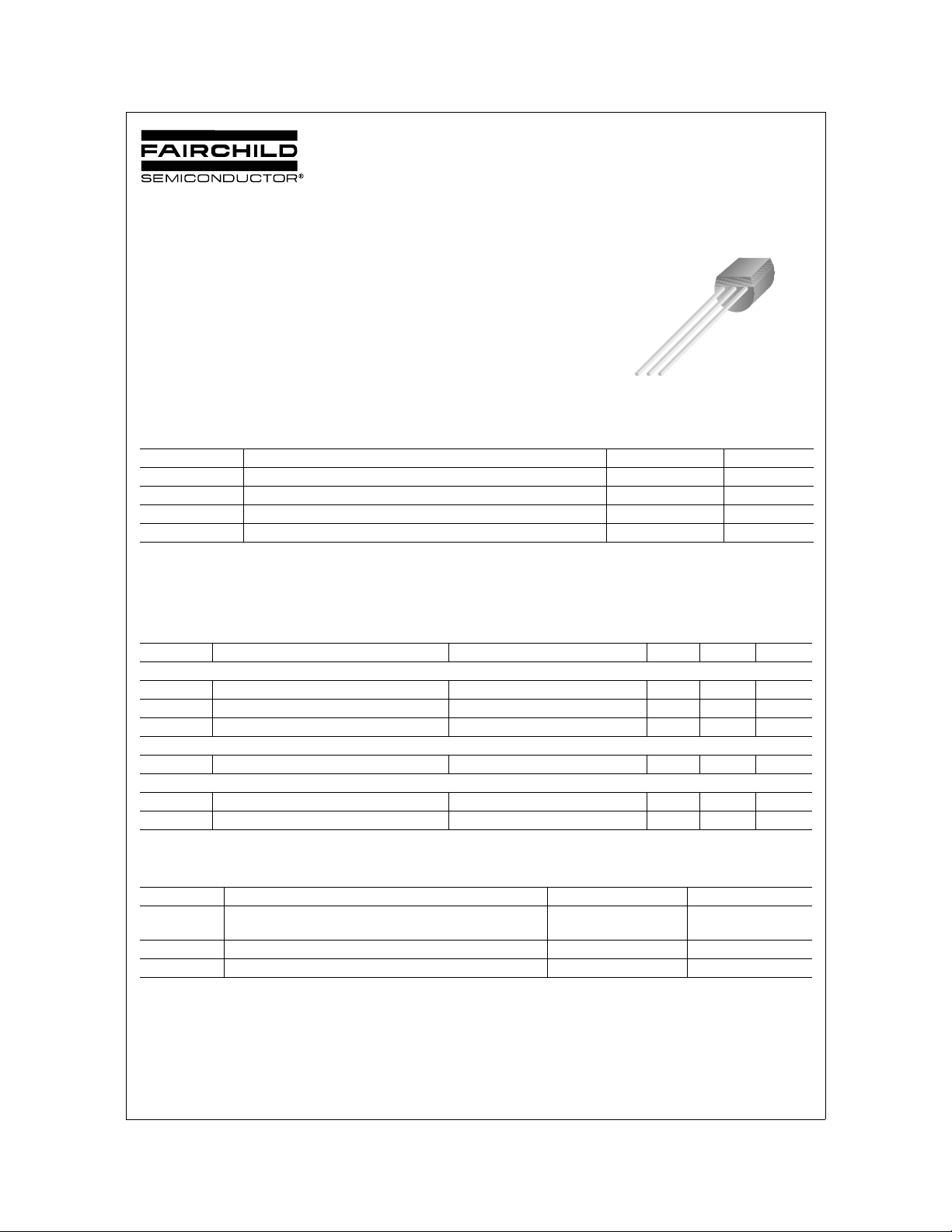

2N5245
N-Channel RF Amplifier
• This device is designed for HF/VHF mixer/amplifier and applications
where process 50is not adequate. Sufficient gain and low noise for
sensitive receivers.
• Sourced from process 90.
2N5245
1
TO-92
1. Gate 2. Source 3. Drain
Absolute Maximum Ratings*
Ta=25°C unless otherwise noted
Symbol Parameter Ratings Units
V
DG
V
GS
I
GF
, T
T
J
STG
* This ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1) These rating are based on a maximum junction temperature of 150 degrees C.
2) These are steady limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Electrical Characteristics
Drain-Gate Voltage 30 V
Gate-Source Voltage -30 V
Forward Gate Current 10 mA
Operating and Storage Junction Temperature Range -55 ~ 150 °C
Ta=25°C unless otherwise noted
Symbol Parameter Test Condition Min . Max. Units
Off Characteristics
V
(BR)GSS
I
GSS
V
GS(off)
Gate-Source Breakdwon Voltage IG = 1.0µA, VDS = 0 -30 V
Gate Reverse Current V
Gate-Source Cutoff Voltage V
= 25V, V
GS
= 15V, ID = 1.0nA -1.0 -0.6 V
DS
= 0 -1.0 nA
DS
On Characteristics
I
DSS
Zero-Gate Voltage Drain Current * VDS = 15V, VGS = 0 5 15 mA
Small Signal Characteristics
gfs Forward Transferconductance V
goss Common- Source Output Conductance V
* Pulse Test: Pulse ≤ 300µs
= 0V, VDS = 15V, f = 1.0kHz 4500 11000 µmhos
GS
= 0V, VDS = 15V, f = 1.0kHz 50 µmhos
GS
Thermal Characteristics
Ta=25°C unless otherwise noted
Symbol Parameter Max. Units
P
D
R
θJC
R
θJA
©2004 Fairchild Semiconductor Corporation Rev. A, January 2004
Total Device Dissipation
Derate above 25°C
350
2.8
mW
mW/°C
Thermal Resistance, Junction to Case 125 °C/W
Thermal Resistance, Junction to Ambient 357 °C/W
Page 2

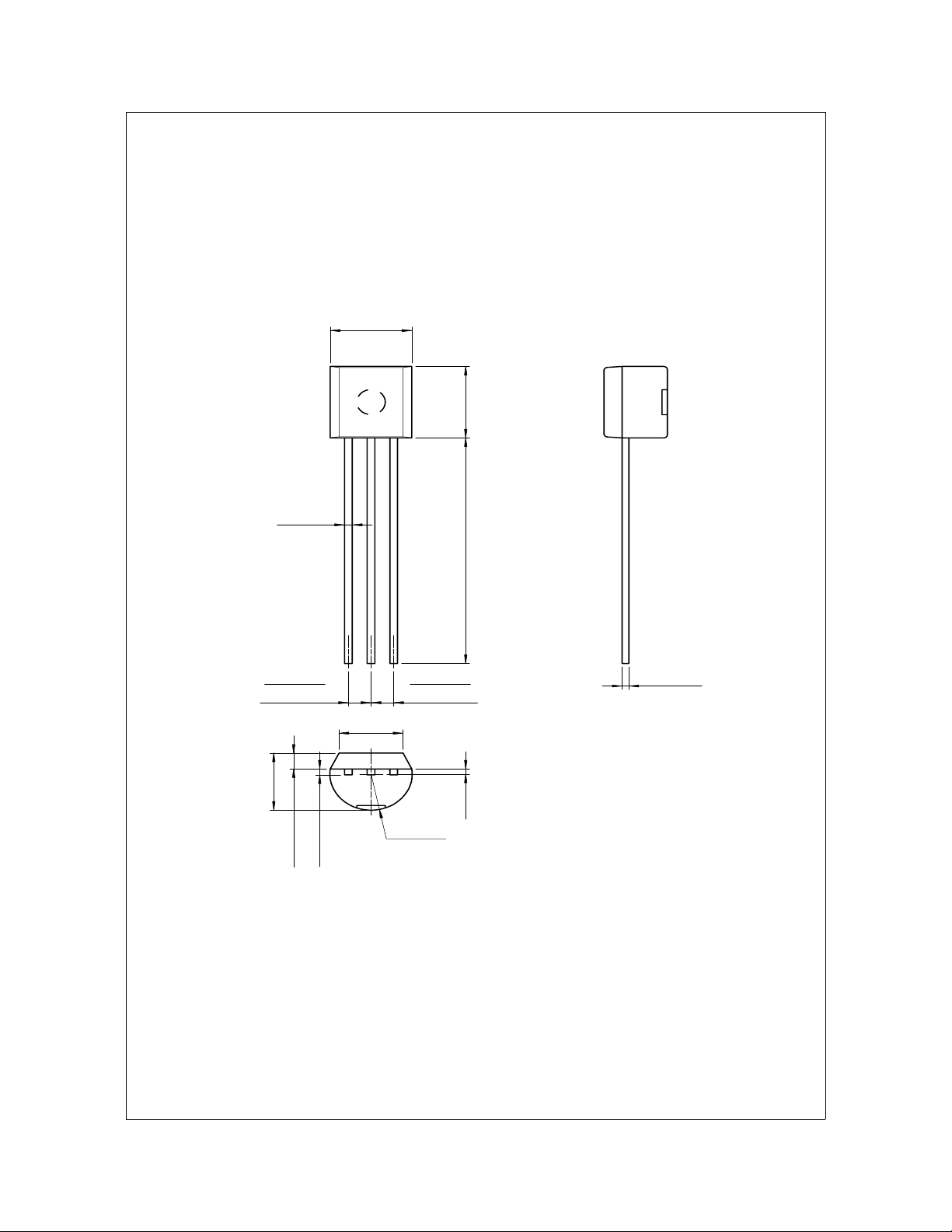

Package Dimensions
0.46
±0.10
4.58
+0.25
–0.15
2N5245
TO-92
±0.20
4.58
±0.40
1.27TYP
[1.27
±0.20
3.86MAX
±0.10
1.02
+0.10
–0.05
0.38
14.47
1.27TYP
]
3.60
±0.20
[1.27
±0.20
]
0.38
+0.10
–0.05
(0.25)
(R2.29)
©2004 Fairchild Semiconductor Corporation
Dimensions in Millimeters
Rev. A, January 2004
