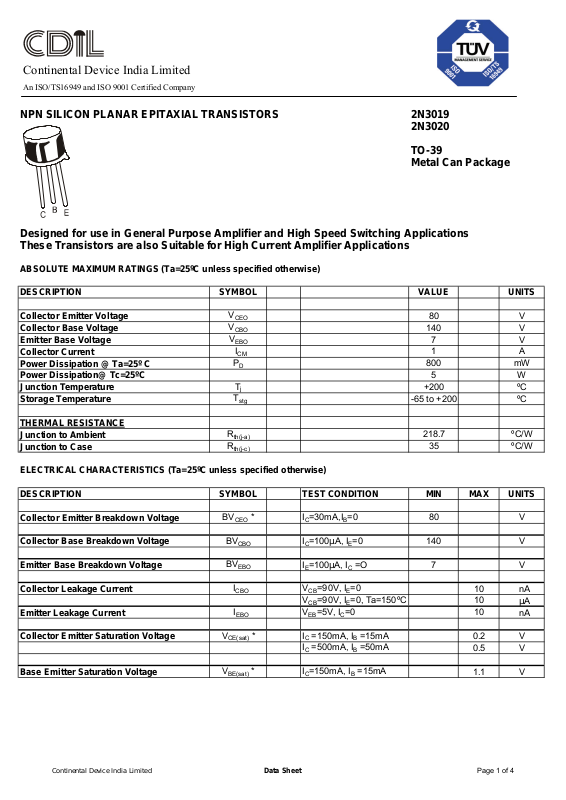

NPN SILICON PLANAR EPITAXIAL TRANSISTORS

2N3019

2N3020

TO-39

Metal Can Package

Designed for use in General Purpose Amplifier and High Speed Switching Applications

These Transistors are also Suitable for High Current Amplifier Applications

CEO

CBO

EBO

stg

th(j-a)

th(j-c)

CEO

CBO

EBO

CBOVCB

EBOVEB

CE(sat)

BE(sat)

Continental Device India Limited

An ISO/TS16949 and ISO 9001 Certified Company

ABSOLUTE MAXIMUM RATINGS (Ta=25ºC unless specified otherwise)

DESCRIPTION SYMBOL VALUE UNITS

Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current Power Dissipation @ Ta=25º C Power Dissipation@ Tc=25ºC Junction Temperature Storage Temperature

V V V

80 V

140 V

7 V 1 A

800 mW

5 W

+200 ºC

-65 to +200 ºC

THERMAL RESISTANCE Junction to Ambient Junction to Case

R R

218.7 ºC/W 35 ºC/W

ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise)

DESCRIPTION SYMBOL TEST CONDITION MIN MAX UNITS

Collector Emitter Breakdown Voltage

Collector Base Breakdown Voltage

Emitter Base Breakdown Voltage

Collector Leakage Current

Emitter Leakage Current

* IC=30mA,IB=0

IC=100µA, IE=0 140 V

IE=100µA, IC =O 7 V

VCB=90V, IE=0, Ta=150ºC

=90V, IE=0

=5V, IC=0

80 V

10 10 10

nΑ µA nΑ

Collector Emitter Saturation Voltage

* IC =150mA, IB =15mA

IC =500mA, IB =50mA

Base Emitter Saturation Voltage

Continental Device India Limited Data Sheet Page 1 of 4

* IC=150mA, IB =15mA

0.2 V

0.5 V

1.1 V

Page 2

NPN SILICON PLANAR EPITAXIAL TRANSISTORS

2N3019

2N3020

TO-39

Metal Can Package

ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise)

TIC

obVCB

ibVEB

DESCRIPTION SYMBOL TEST CONDITION MIN MAX UNITS

DC Current Gain

SMALL SIGNAL CHARACTERISTICS

Small Signal Current Gain

2N3019 2N3020

2N3019

2N3019 2N3020

hFE* IC=0.1mA,VCE=10V

50 30 100

hFE* IC=10mA,VCE=10V

90 40 120

hFE* IC=150mA,VCE=10V

100 300

40 120

hFE* IC=500mA,VCE=10V

50 30 100

hFE* IC=1A,VCE=10V

15 15

hFE* IC=150mA,VCE=10V

Tc= -55ºC 40

| hfe | IC=1mA, VCE=5V, f=1KHz

80 400 30 200

Transition Frequency

2N3019 2N3020

Output Capacitance Input Capacitance Noise Figure

2N3019

Collector Base Time Constant

rbb'cb'c

*Pulse Test: Pulse Width <300µµs, Duty Cycle <1.0%

=50mA, VCE=10V

f=20MHz 100 MHz

C C

=10V, IE=0, f=1MHz

=0.5V, IC=0, f=1MHz

NF IC=100µA, VCE=10V

Rs=1KΩ,f=1KHz 4 dB IC=10mA,VCB=10V, f=4MHz f=1MHz

80 MHz

12 pF 60 pF

400 ps

Continental Device India Limited Data Sheet Page 2 of 4

Page 3

2N3019

2N3020

TO-39

Metal Can Package

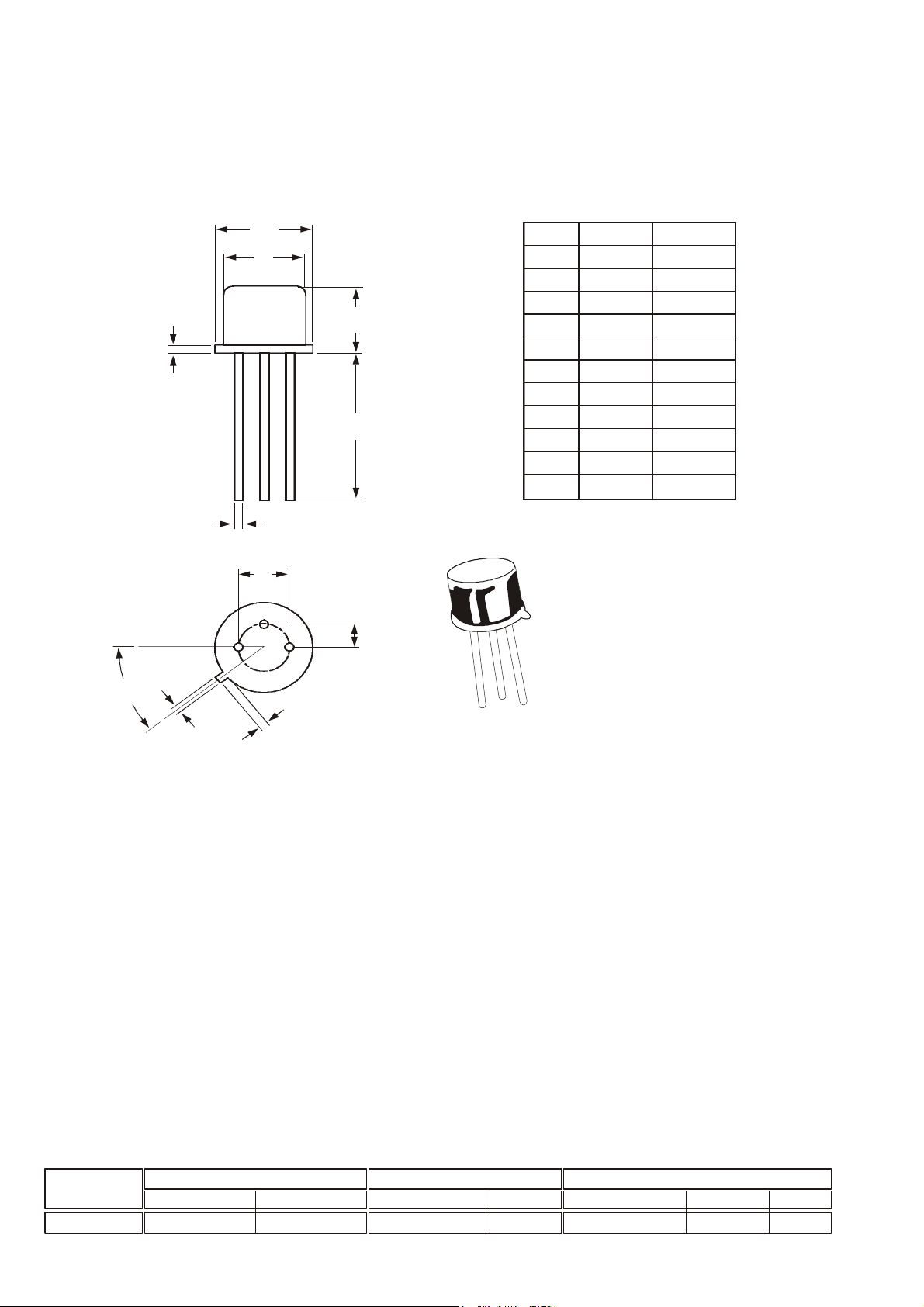

TO-39 Metal Can Package

DIM MIN MAX

Packing Detail

A 8.50 9.39 B 7.74 8.50 C 6.09 6.60

D 0.40 0.53 E — 0.88 F 2.41 2.66 G 4.82 5.33

H 0.71 0.86 J 0.73 1.02 K 12.70 — L 42 DEG 48 DEG

All dimensi ons are in mm

PIN CONFIGURATION

1. EMITTER

2. BASE

3. COLLECTOR

PACKAGE

TO-39 500 pcs/polybag 540 gm/500 pcs 3" x 7.5" x 7.5" 20K 17" x 15" x 13.5" 32K 40 kgs

Continental Device India Limited Data Sheet Page 3 of 4

STANDARD PACK INNER CARTON BOX

Net Weight/QtyDetails

OUTER CARTON BOX

Qty

Qty Gr WtSize Size

Page 4

Notes

2N3019

2N3020

TO-39

Metal Can Package

Disclaimer

The product information and the selection guides facilitate selection of the CDIL's Discrete Semiconductor Device(s) best suited for application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as to confirm that the Device(s) meet functionality parameters for your application. The information furnished in the Datasheet and on the CDIL Web Site/CD is believed to be accurate and reliable. CDIL however, does not assume responsibility for inaccuracies or incomplete information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or use of any CDIL product; neither does it convey any license under its patent rights nor rights of others. These products are not designed for use in life saving/support appliances or systems. CDIL customers selling these products (either as individual Discrete Semiconductor Devices or incorporated in their end products), in any life saving/support appliances or systems or applications do so at their own risk and CDIL will not be responsible for any damages resulting from such sale(s).

CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.

CDIL is a registered Trademark of

Continental Device India Limited

C-120 Naraina Industrial Area, New Delhi 110 028, India.

Telephone + 91-11-2579 6150, 5141 1112 Fax + 91-11-2579 5290, 5141 1119

[email protected] www.cdilsemi.com

2N3019_20Rev160102D

Continental Device India Limited Data Sheet Page 4 of 4
